Sun Microsystems Blade 1500 - Motherboard Layout Diagram

Appendix C Functional Description C-5

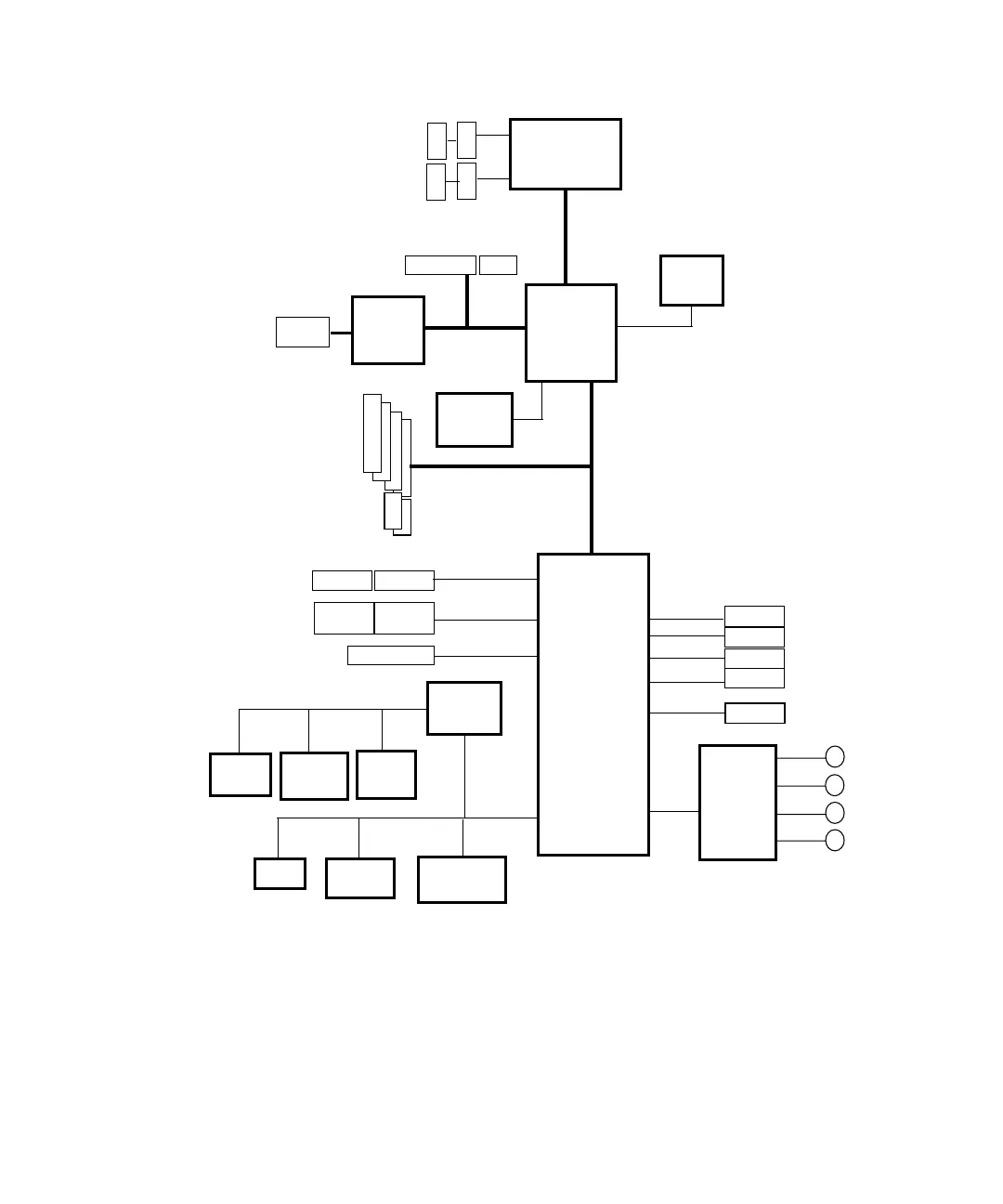

FIGURE C-2 Sun Blade 1500 Motherboard Block Diagram
C.2.2 Motherboard Layout Diagram
FIGURE C-3 shows the layout of the motherboard, including connector and jumper
locations.
JIO
M1535D+
NVRAM
RTC
Flash
PROM
32KB
SRAM
PCF8584
XBus
I
2
C Bus
DB-9
DVD
Smart card
SM Bus
Serial
ATA 100
USB P1
USB P2
USB P3
USB P4
BCM5793
RJ45
IChip2
JBus
PCIB
PCIA
64-bit 33MHz
64-bit/66MHz
AC97
ICS951601
CODEC
Disk
ADM1031
MB FRU
ID
DIMMs
Line in
Line out
Headphone
Mic
32KB
DB-9
DB-25
Parallel
UltraSPARC IIIi
