13-44 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

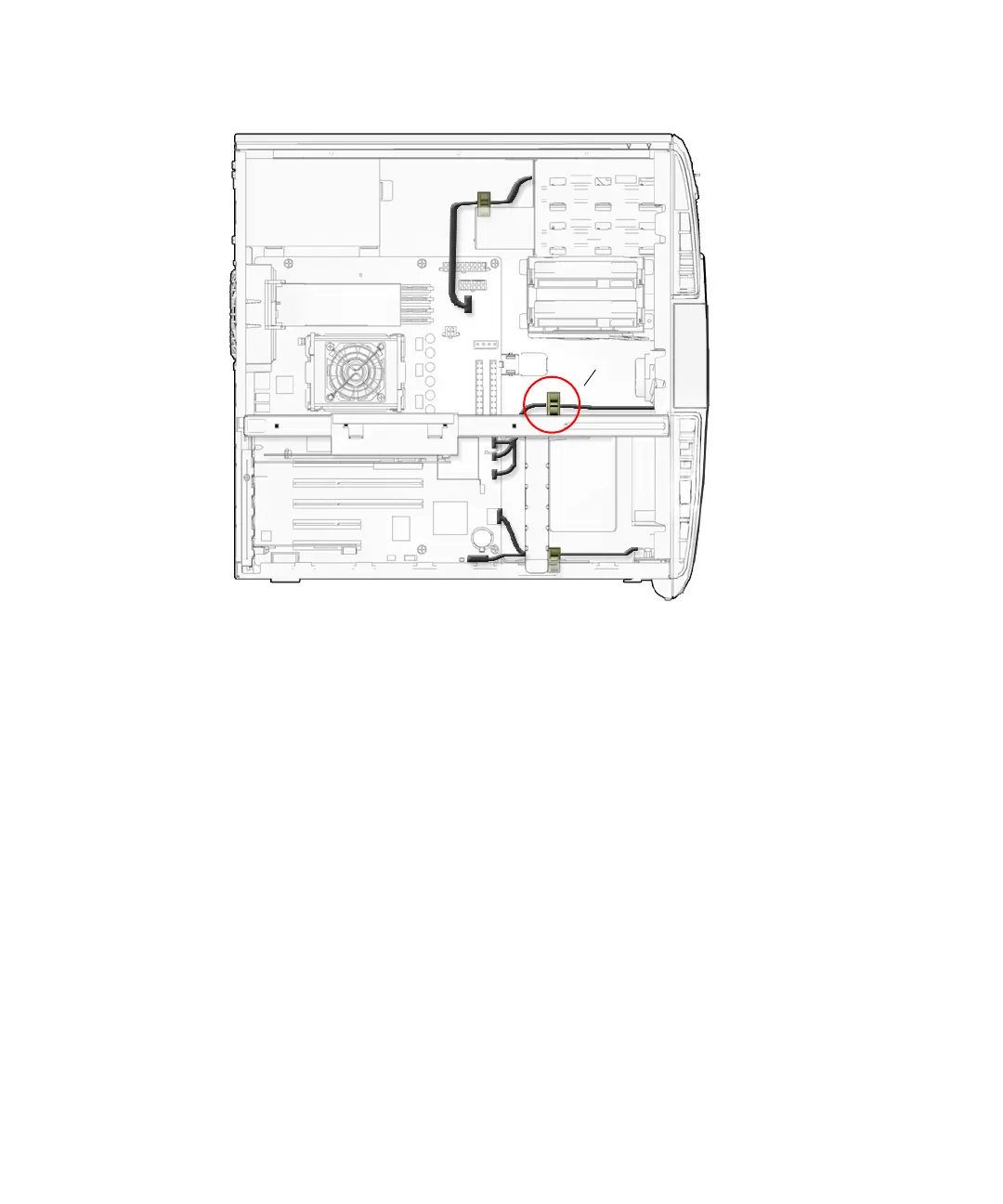

FIGURE 13-46 Securing the Speaker Cable in the Bezel Cable Clip
8. Inspect the speaker fasteners to verify that:
■ The speaker is secure in the bracket.
■ The speaker bracket tabs are well seated in the chassis.
9. Inspect the speaker cabling to verify that:
■ The speaker cable is firmly connected to the motherboard at SPK0.
■ The speaker cable is routed through the bezel cable clip.
■ The bezel cable clip is closed and locked.
10. Install the bezel, the access panel, power on the system, and verify the speaker
installation.
Refer to:
■ “Installing the Bezel” on page 15-2
■ “Installing the Access Panel” on page 15-5
■ “Powering On the Workstation” on page 15-8
■ “Verifying an Installation” on page 15-11
SPK0
Bezel cable clip
