Sun Microsystems Blade 1500 - Installing the Bezel; FIGURE 15-1 Positioning the Chassis Upright

15-2 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

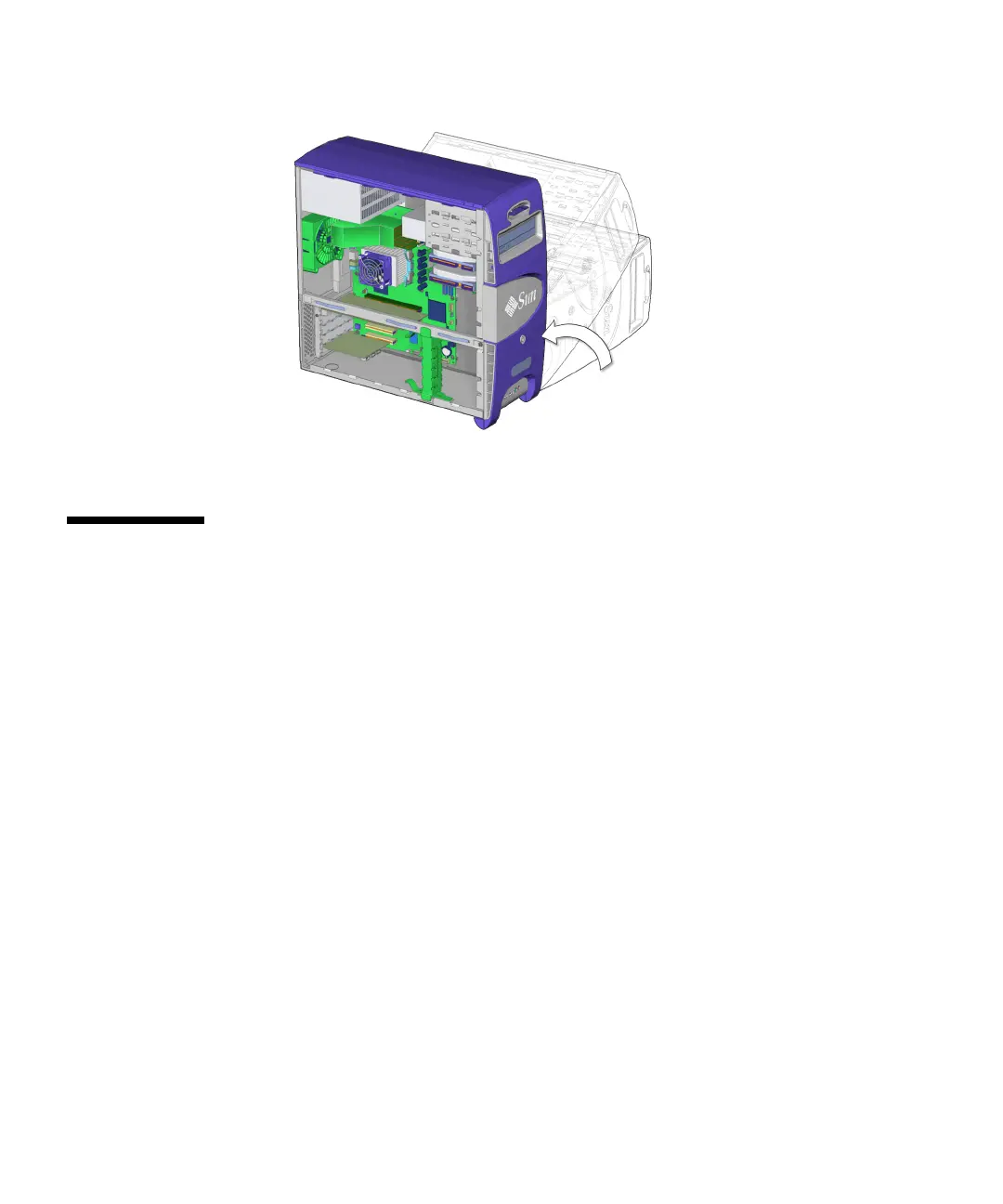

FIGURE 15-1 Positioning the Chassis Upright
15.2 Installing the Bezel
1. Place the chassis into its upright position.
Refer to “Repositioning the Chassis” on page 15-1.
2. Locate where the bezel is to be installed.
The bezel installs at the front face of the chassis, Sun logo upright.
3. Align the short tabs on the top of the bezel align with the matching rectangular
slots at the top front of the chassis.
See FIGURE 15-2.
