13-24 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

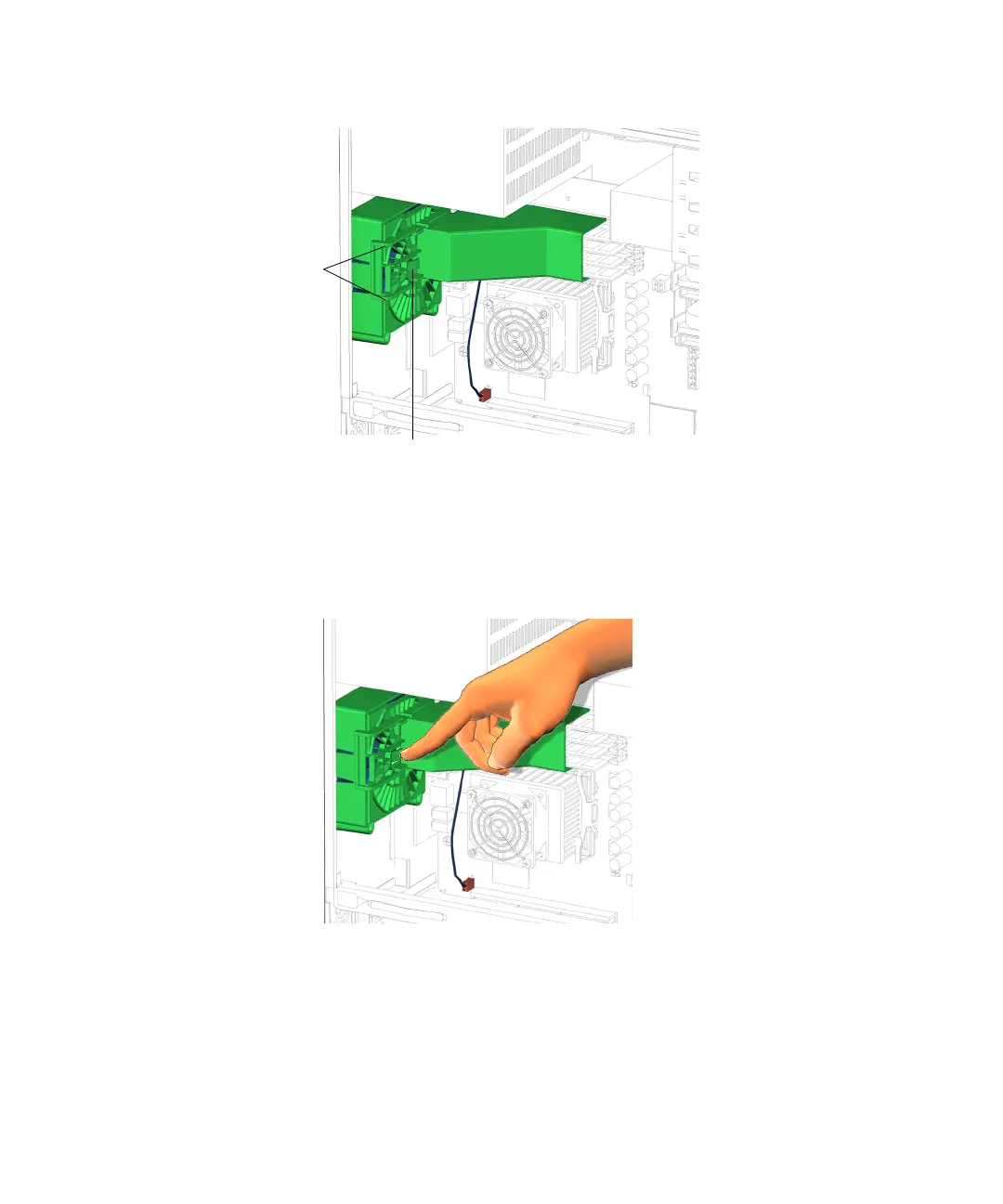

FIGURE 13-21 DIMM Cooling Duct Attachment to Rear Fan
3. Press the catch on the rear fan bracket and begin to slide the duct to the left.
See FIGURE 13-22.
FIGURE 13-22 Pressing the Catch on the Rear Fan Bracket
4. Continue to slide the duct to the left, until it is flush with the left side of the rear
fan bracket.
See FIGURE 13-23.
Catch
Guide rails
