15-6 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

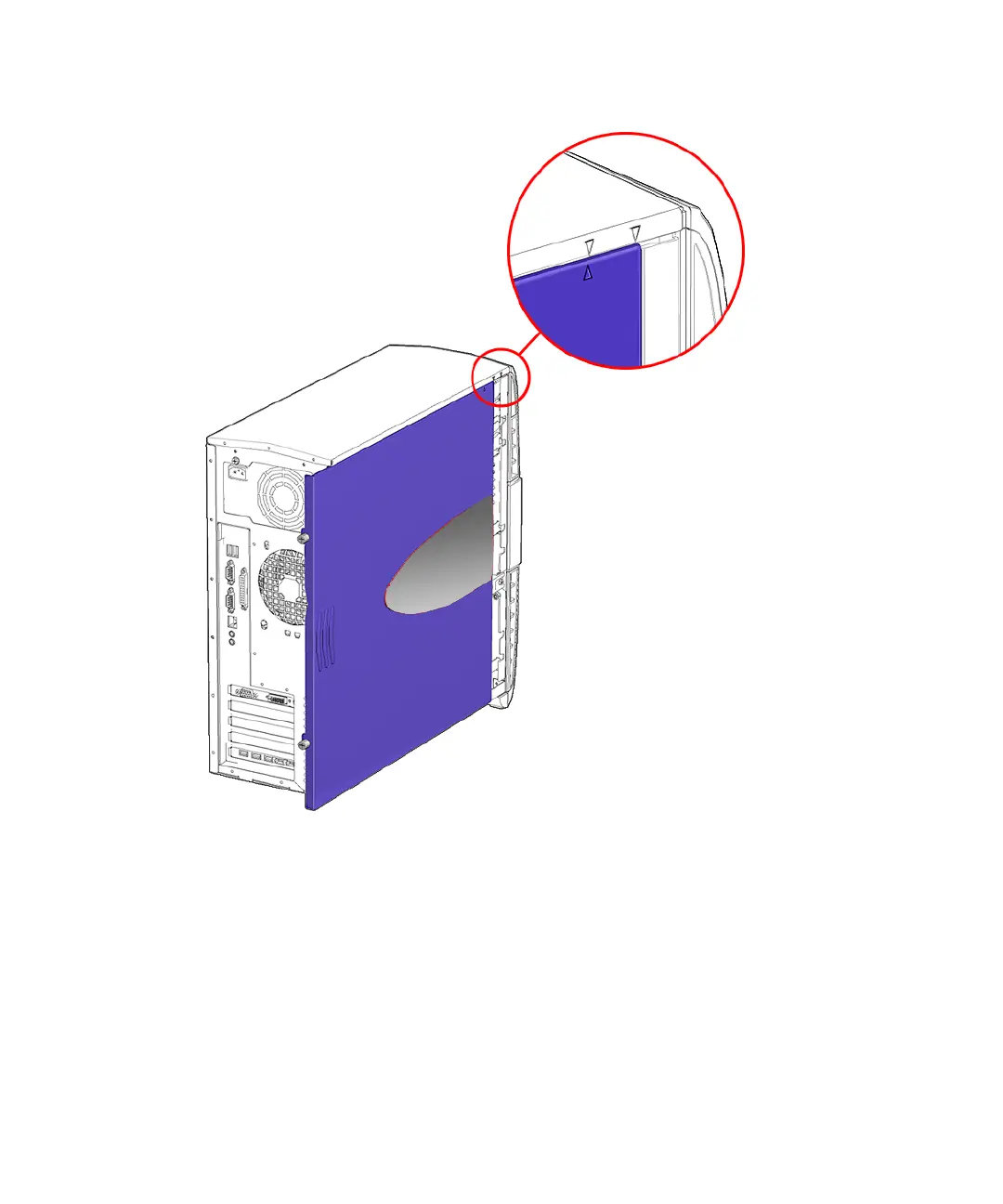

FIGURE 15-5 Aligning the Access Panel
8. Align the arrows on the access panel with the arrows on the chassis.
See FIGURE 15-5.
9. Slide the access panel toward the front of the system chassis until it stops.
See FIGURE 15-6.
Alignment
marks
