4. Align the four tabs on the open side of the fan bracket with their matching D-
shaped holes in the chassis front panel.
See FIGURE 13-11.

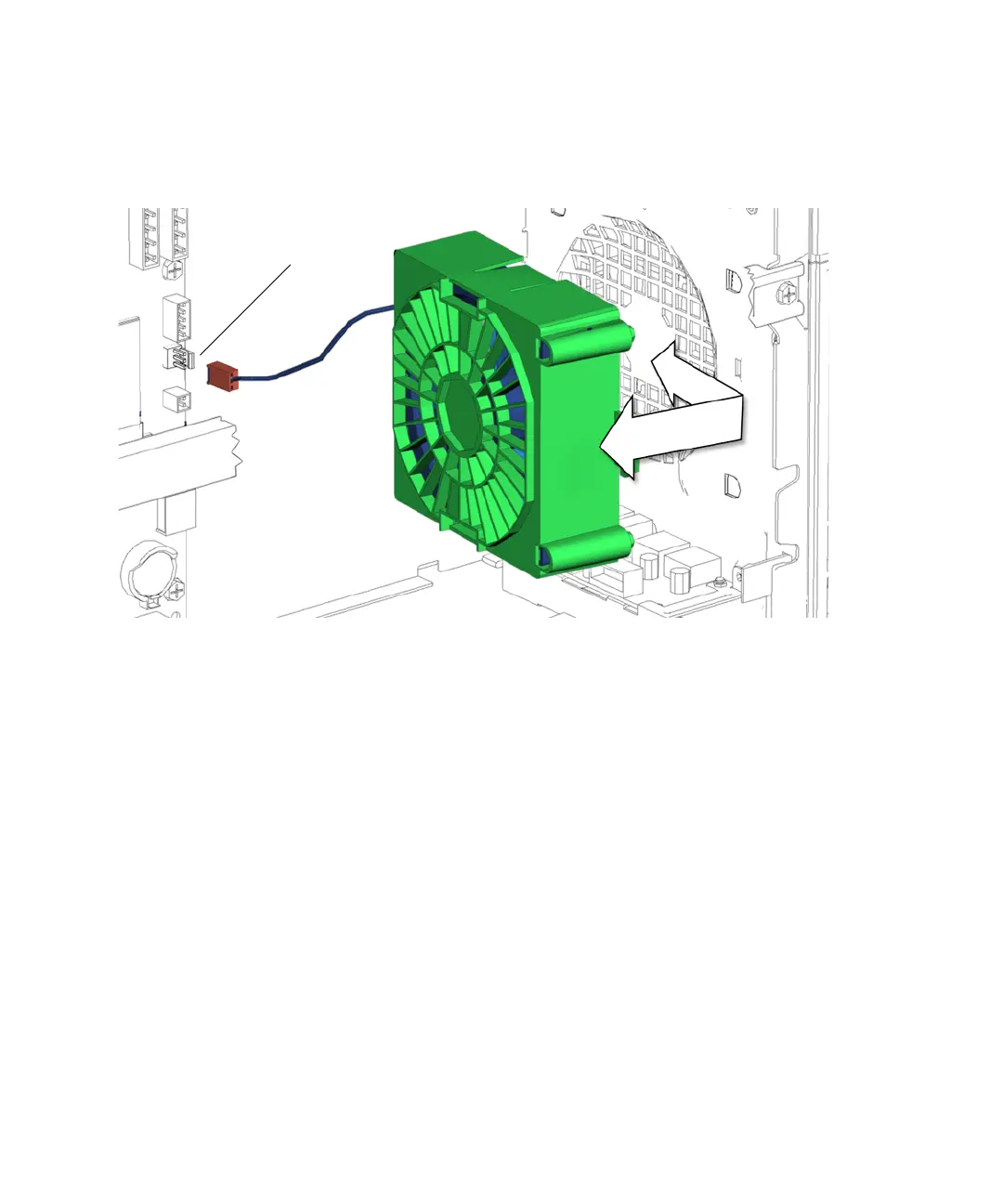

FIGURE 13-11 Installing the Front Fan Bracket
5. Slide the bracket sideways until the fan bracket latch clicks into place.
The four tabs on the fan bracket protrude to the outside of the chassis. See
FIGURE 13-12.
Connector FAN0 SYS
