11-54 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

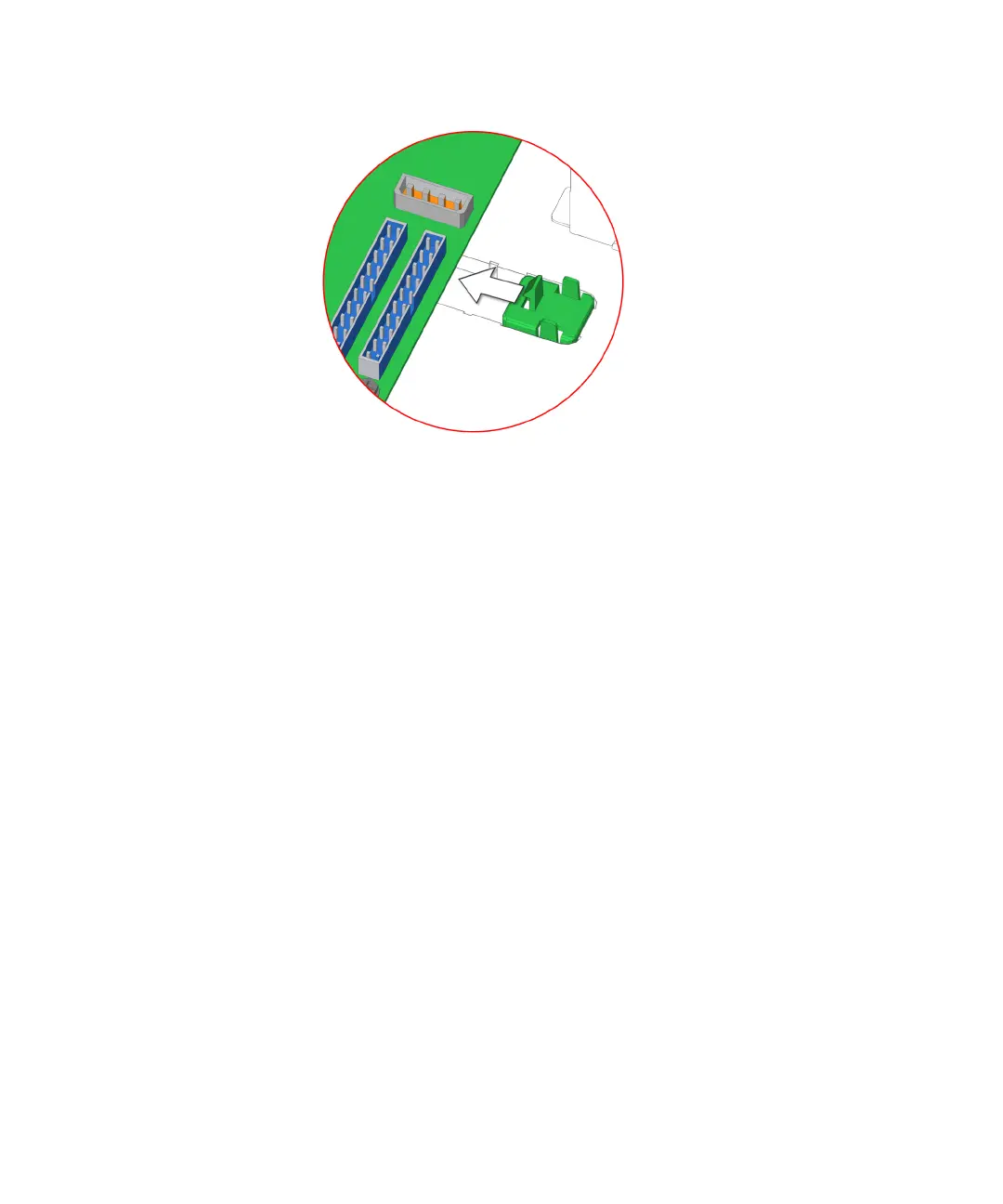

FIGURE 11-49 Latching the Motherboard Retaining Clip
10. While maintaining a downward pressure on the motherboard, use a No. 2 Phillips
screwdriver to fasten the upper center and lower center motherboard mounting
screws.
Then fasten the remaining seven screws. See FIGURE 11-50
