Chapter 13 Replacing Chassis Components 13-13

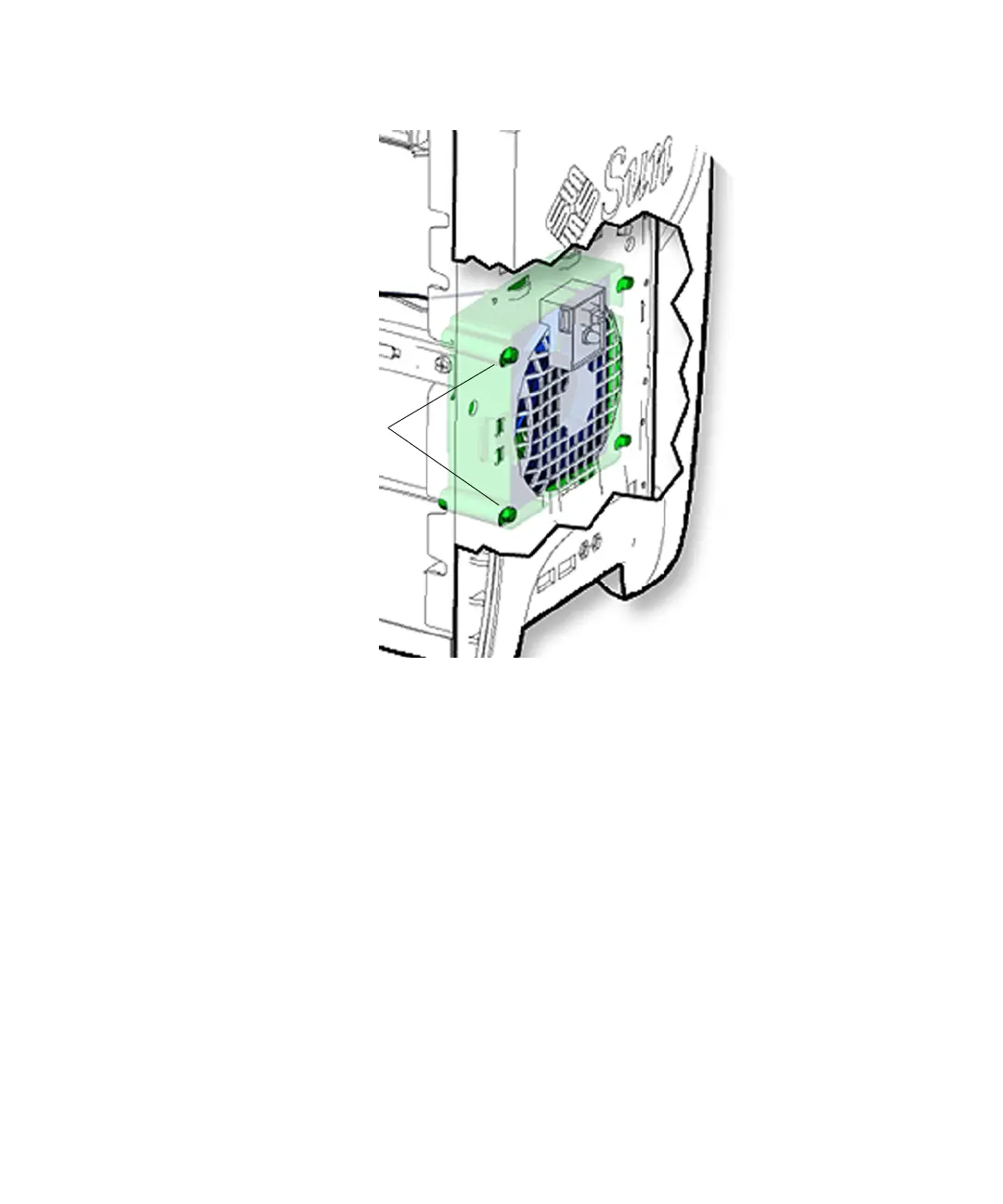

FIGURE 13-12 Securing the Front Fan Bracket
6. Connect the front fan power cable to the motherboard connector FAN0 SYS.
See FIGURE 13-11.
7. Guide the front fan cable through the bezel cable clip at the center of the chassis
and close the clip.
See FIGURE 13-13.
Tabs (4)
