Sun Microsystems Blade 1500 - TABLE 2-4 Sun Blade 1500 Replaceable Components; FIGURE 2-4 Exploded Diagram of Sun Blade 1500 Replaceable Components; Figure

2-8 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

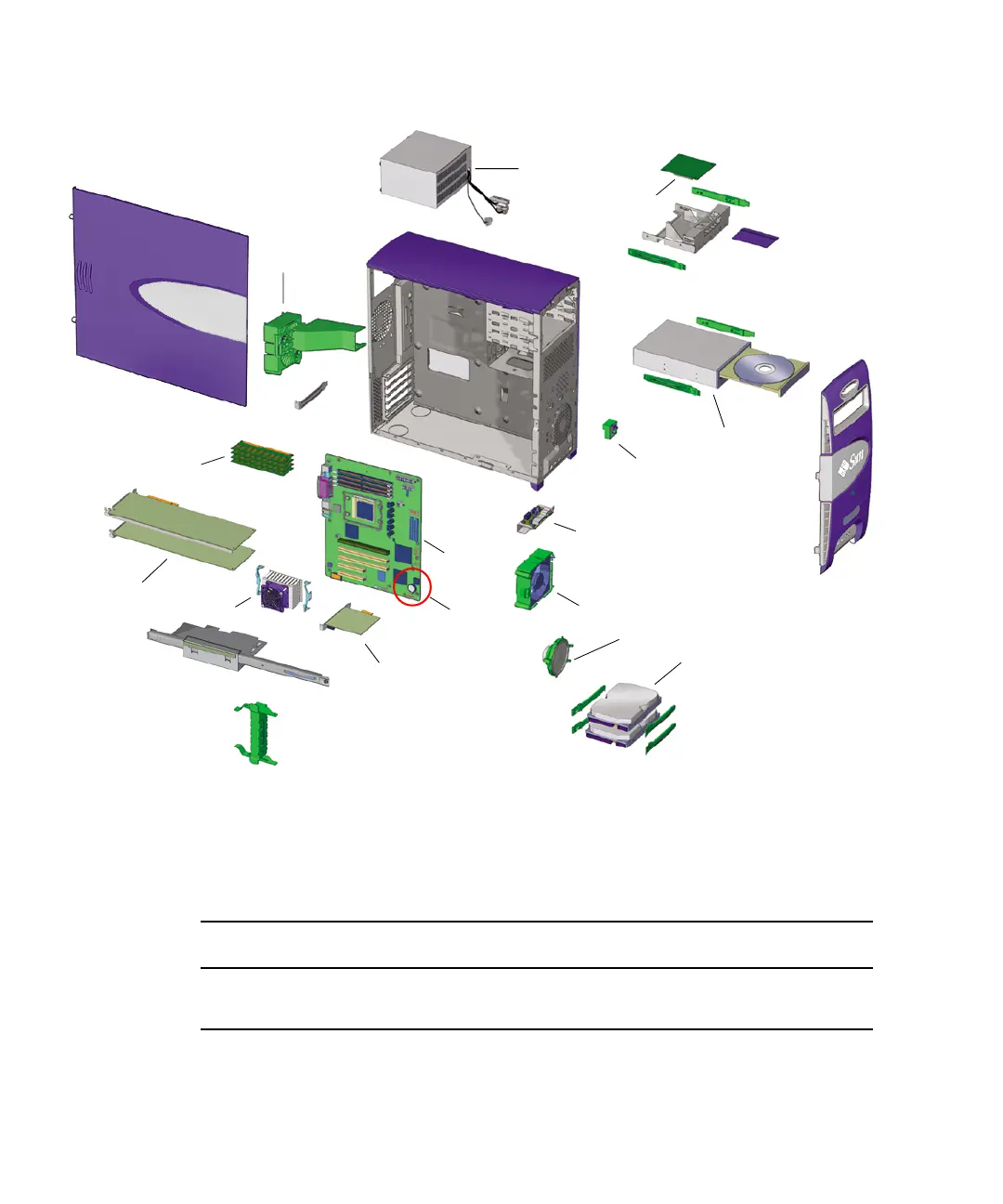

FIGURE 2-4 Exploded Diagram of Sun Blade 1500 Replaceable Components
More information about the replaceable components is listed in TABLE 2-4.
TABLE 2-4 Sun Blade 1500 Replaceable Components
Callout in
FIGURE 2-4 Component Description
1 Hard drive Hard drive, 120 GB, ATA 100/IDE
2 Optical drive DVD/CD-RW
8
9
3
11
2
5
1
14
10
13
4
6
7
12
15
