Chapter 13 Replacing Chassis Components 13-57

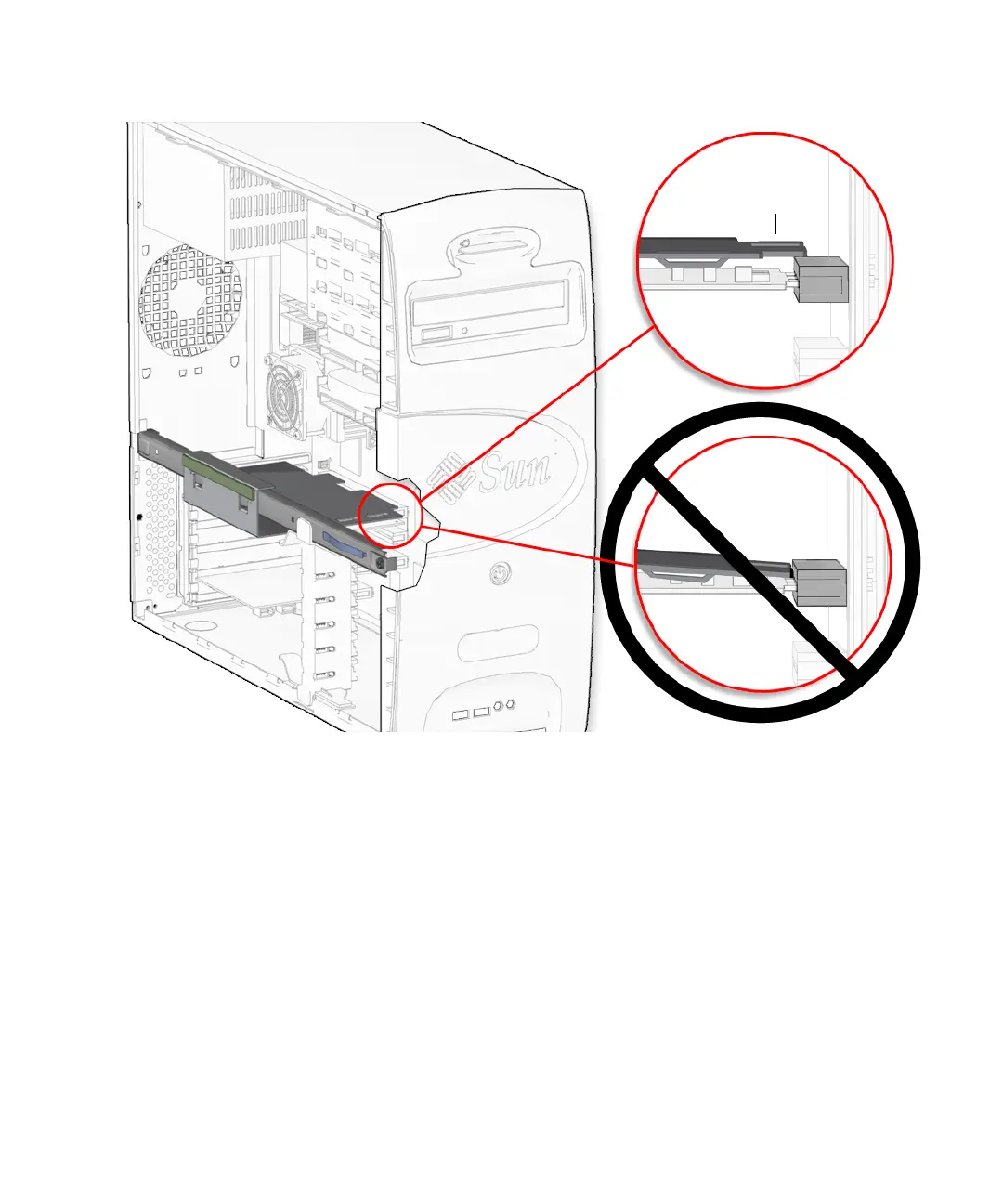

FIGURE 13-59 Preventing PCI Shield From Binding With Socket
When properly installed, the PCI shield fits flat against the back side of the PCI card
installed in slot PCI4. See
FIGURE 13-60.
PCI shield along
side of socket
PCI shield binding
with socket
