14-26 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

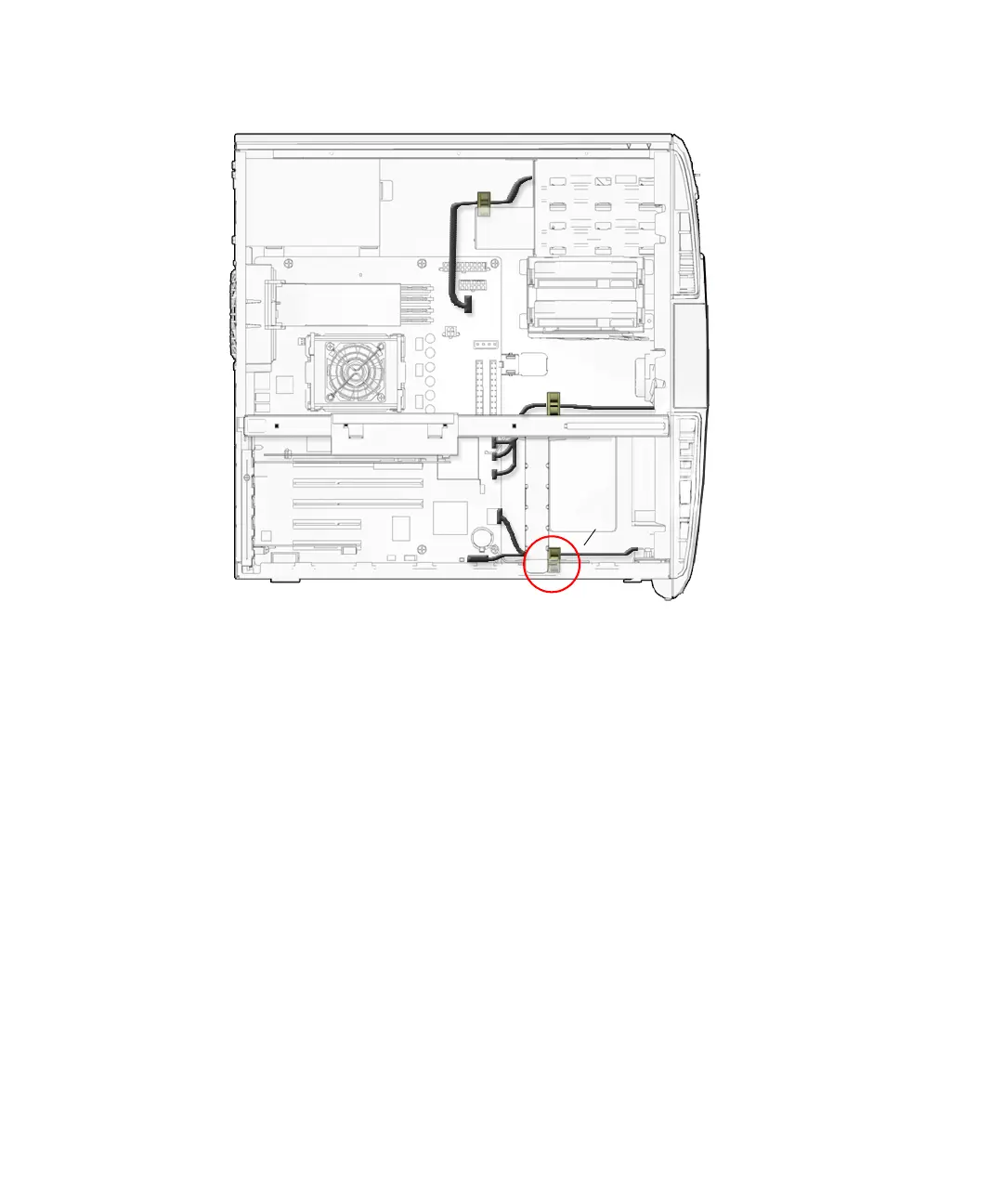

FIGURE 14-23 Removing the Audio USB Cables From the I/O Cable Clip
6. Disconnect the cables from both the audio and the USB connectors on the audio
USB board.
See FIGURE 14-24.
J13 Audio
J19 USB
I/O cable clip
