Chapter 14 Replacing Internal Cables 14-25

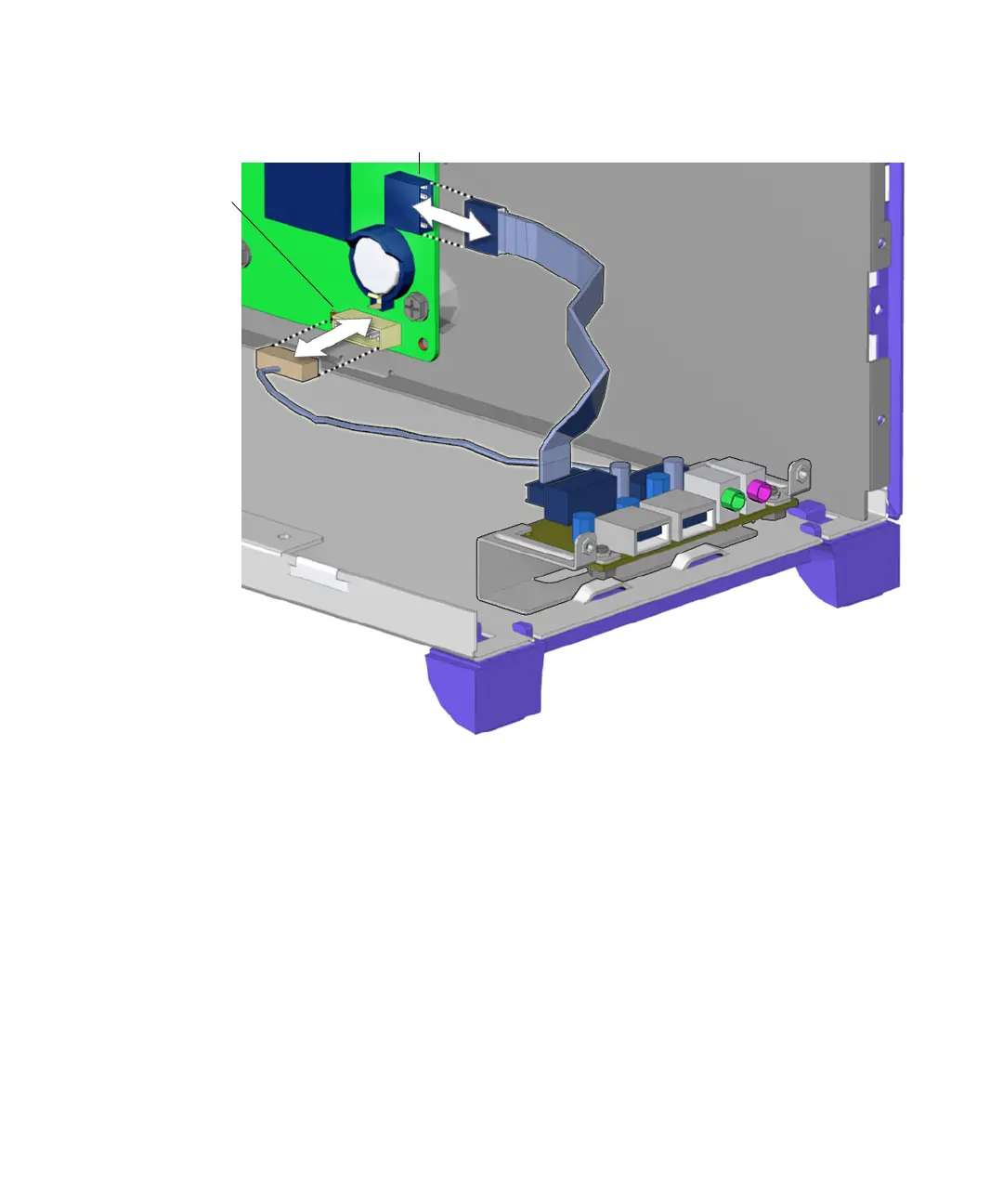

FIGURE 14-22 Removing Audio and USB Cables From the Motherboard
5. Open the I/O cable clip at the bottom of the chassis and remove the audio USB
board cables from the clip.
See FIGURE 14-23.
Connector J19 USB
Connector
J13 AUDIO
