Chapter 13 Replacing Chassis Components 13-55

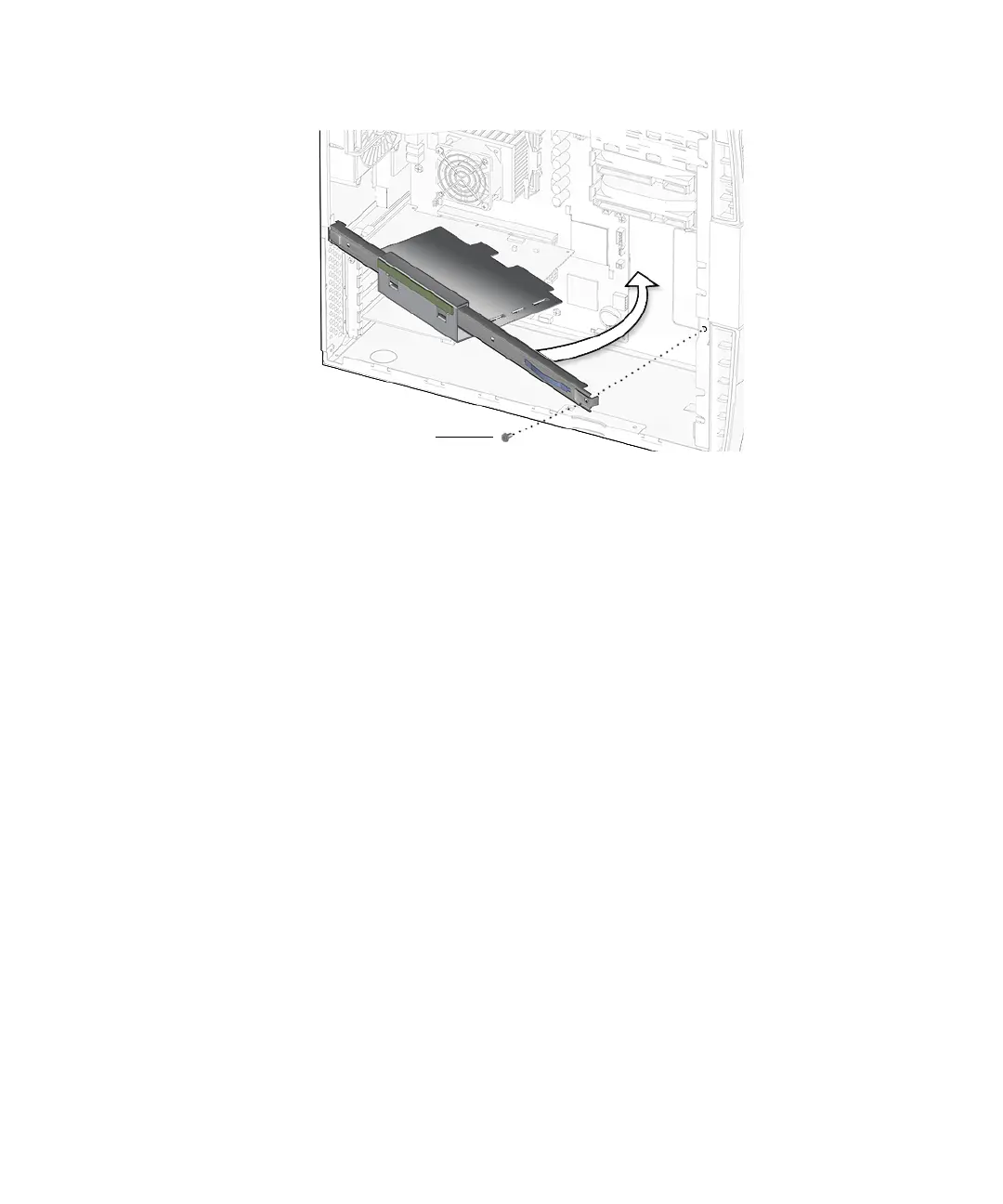

FIGURE 13-57 Swinging Chassis Cross Brace Into Position
4. Swing the front end of the cross brace toward the edge of the front panel.
See FIGURE 13-57.
5. As you swing the chassis cross brace into position, check that the edge of the PCI
shield does not strike components on the rear of the PCI card in slot PCI4.
See FIGURE 13-58.
Screw
