2. Locate the optical drive interface cable.
The optical drive is located in the upper portion of the chassis. The optical drive
cable is located to the rear of the optical drive. See
FIGURE 14-5.
3. Disconnect the optical drive interface cable from the optical drive.
See FIGURE 14-6.

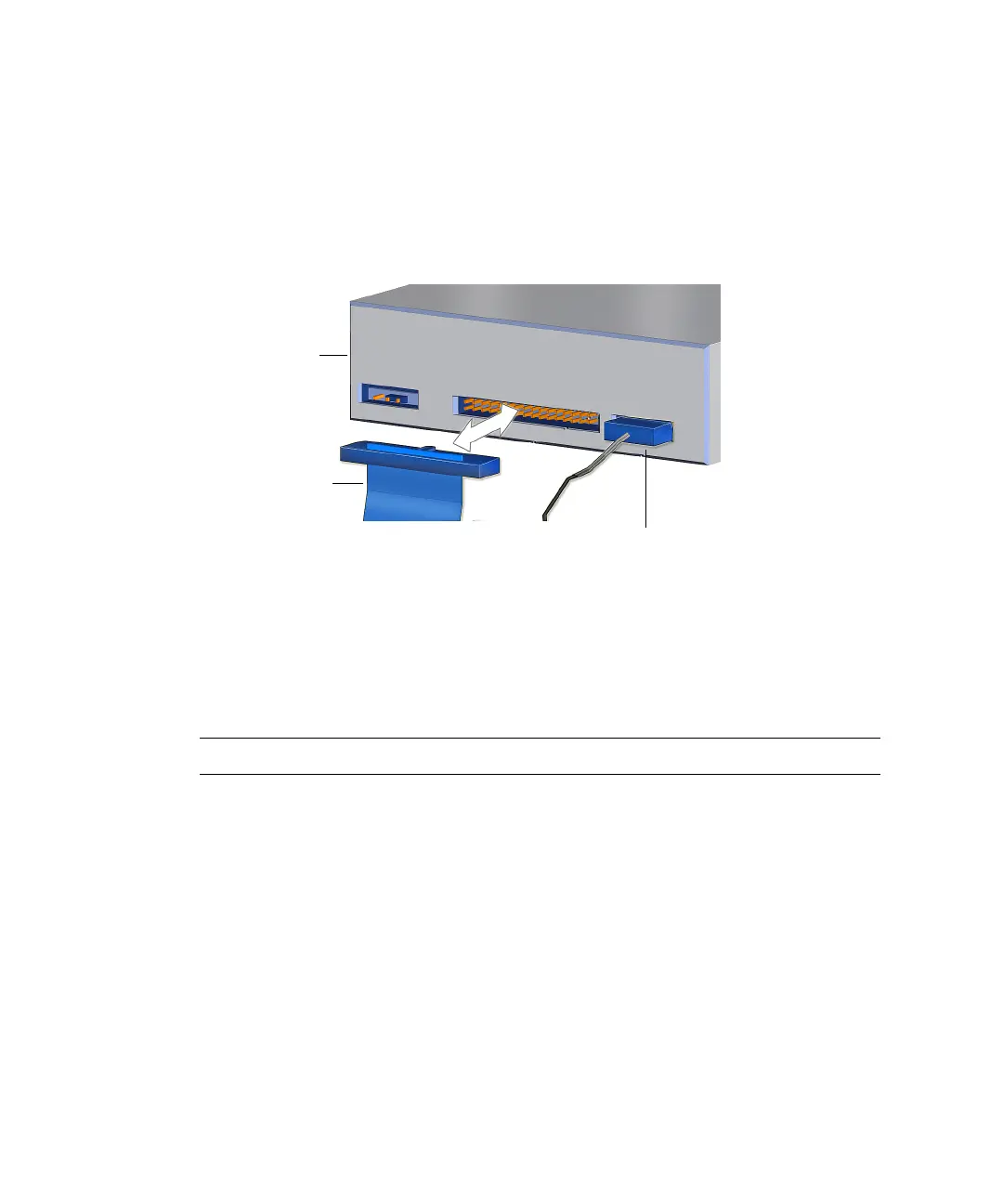

FIGURE 14-6 Disconnecting the Interface Cable From the Optical Drive
4. Disconnect the optical drive interface cable from the motherboard
at IDE SEC.
See FIGURE 14-1 and FIGURE 14-5.
Proceed to “Installing the Optical Drive Interface Cable” on page 14-8.
Note – The optical drive does not operate without the interface cable.
14.2.3 Installing the Optical Drive Interface Cable
1. Open the chassis.
Refer to:
■ “Powering Off the Workstation” on page 10-4
■ “Removing the Access Panel” on page 10-12
2. Locate where the optical drive interface cable is to be installed.
See FIGURE 14-5.
Interface cable
IDE power cable
Optical
drive
