11-52 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

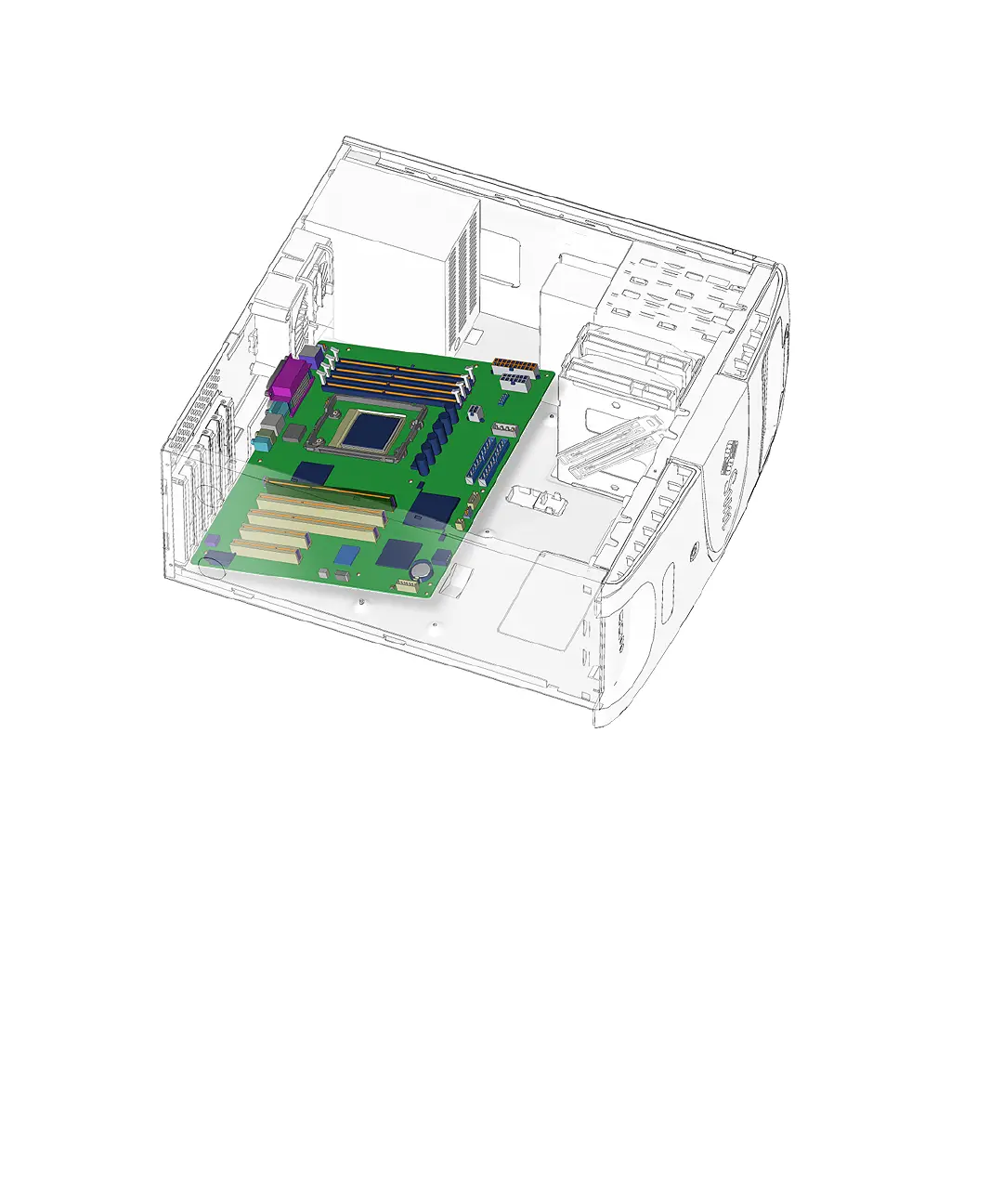

FIGURE 11-47 Placing the Motherboard Into the System Chassis
8. Align the motherboard so that the standoffs fit into the holes.
The upper center and lower center mounting holes have standoffs with raised lips
that fit into the respective holes of the motherboard. See
FIGURE 11-48.
