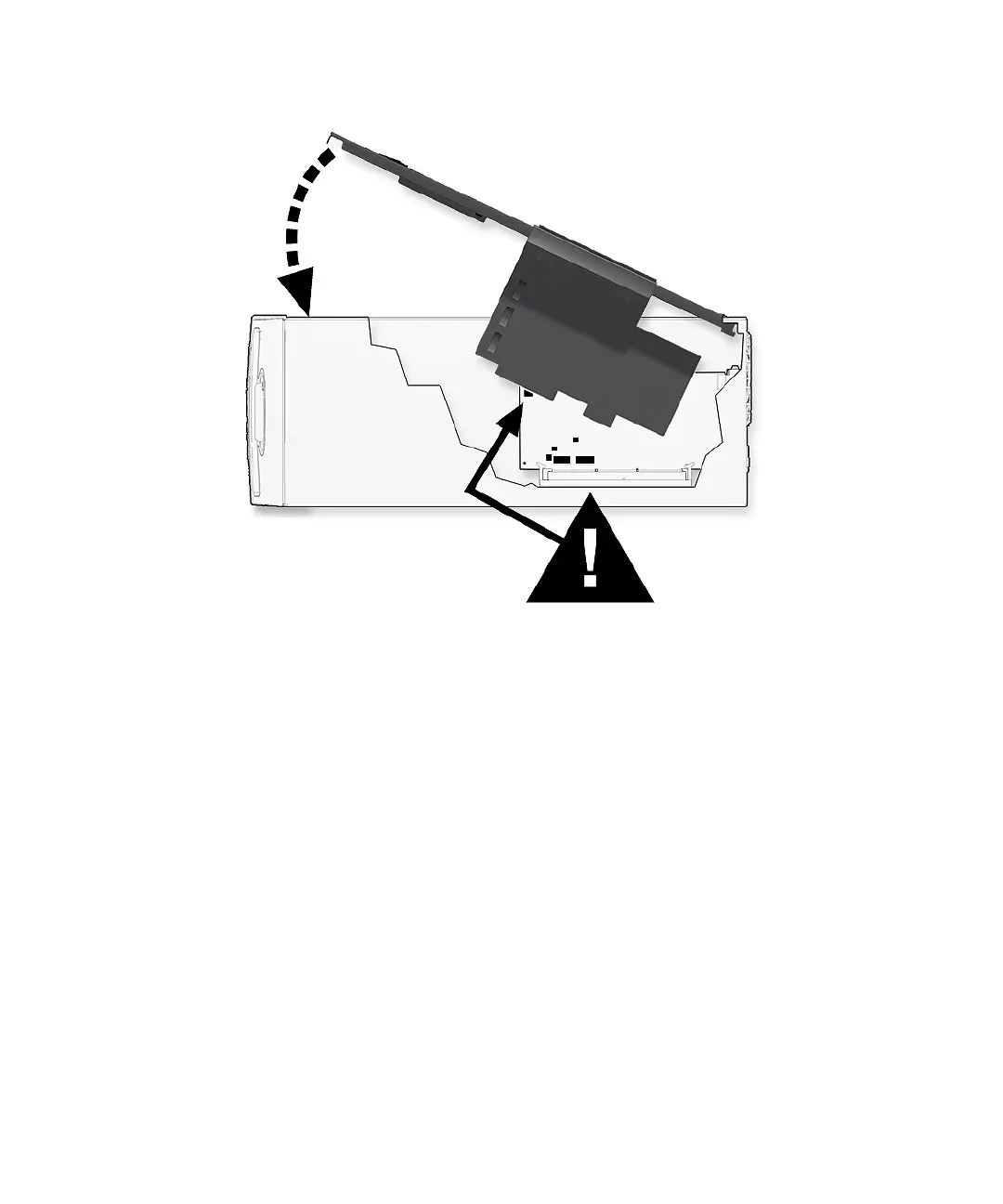

FIGURE 13-58 Preventing PCI Shield From Striking Components
6. As the cross brace screw hole aligns with the respective hole in the chassis, ensure
that the PCI shield is not binding on the socket of slot PCI4.
See FIGURE 13-59.
