C-6 Sun Blade 1500 Service, Diagnostics, and Troubleshooting Manual • December 2004

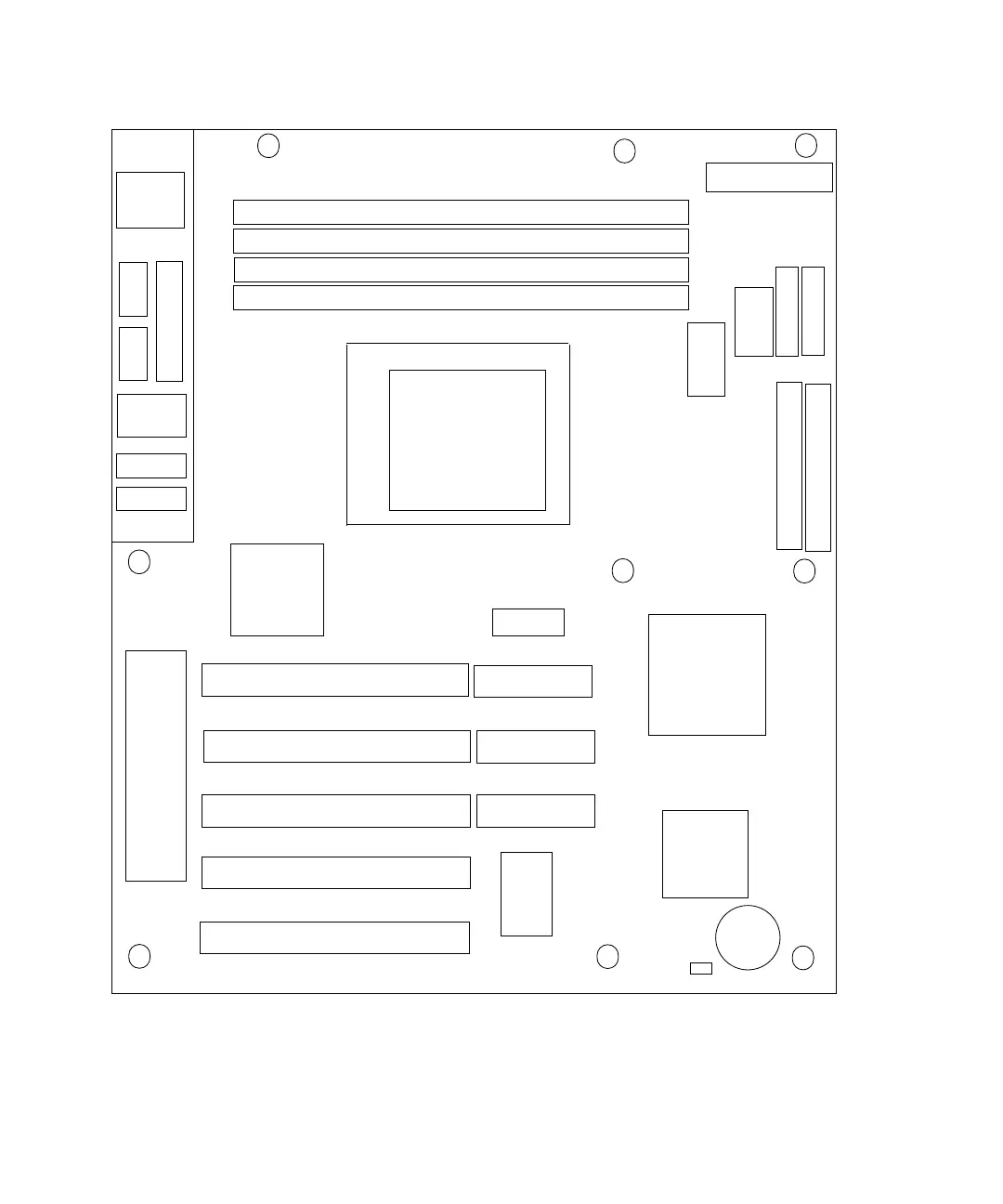

FIGURE C-3 Sun Blade 1500 Motherboard Layout Diagram
UltraSPARC IIIi
JIO
I/O Sub-
IChip2
IDE Secondary
IDE Primary
PROM
PECL Clock
PCI Clock
ATX Power
Gb
Ethernet
SRAM
TOD
PCI4 (66.6MHz)
PCI3
PCI2
PCI1
PCI0
AC97 Codec
system
DIMM0
DIMM1
DIMM2
DIMM3
Battery
USB
Ethernet
Audio in
Audio out
Serial2
Serial1
Parallel
Motherboard
LED0
