CMS32L051 User Manual |Chapter 12 Universal Serial Communication Unit
www.mcu.com.cn 374 / 703

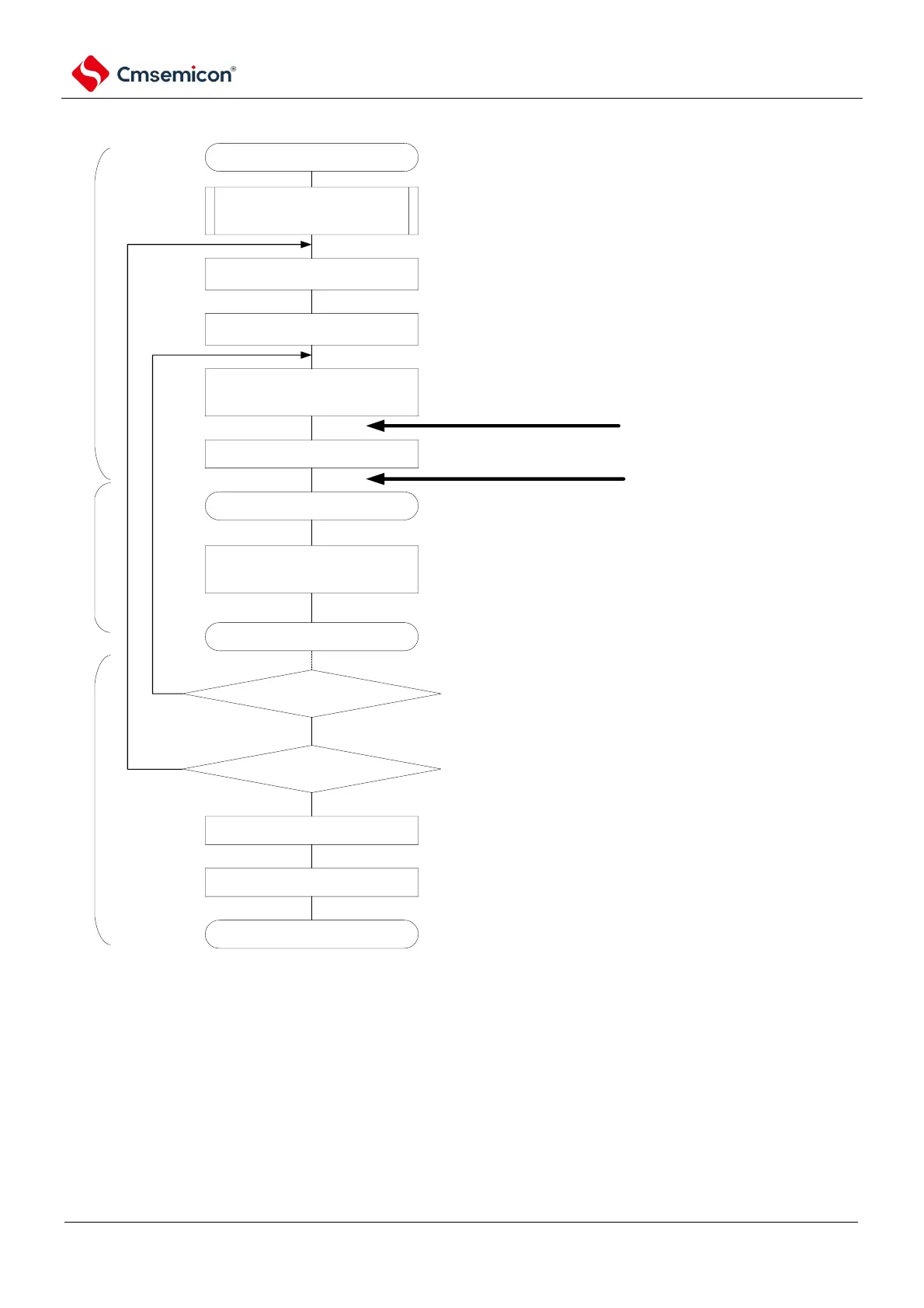

Figure 12-66 Flowchart of slave send and receive (single send and receive mode).
SSPI communication starts
configure transmit and receive
data
enable interrupt
write transmit data into
SIOp(=SDRmn[7:0])
wait for transmitting and
reception completes.
relevant initial configuration, refer to diagram 19-64
(select transmission completion interrupt)
regarding transmit and receive data, configure storage
region and data count (via software, any specified
internal RAM storage region, transmit data pointer
communnication data count)
after clear interrupt request flag(Ifxx) and release
interrupt mask(MKxx), enable interrupt
start communication via clock
provided by master device.
SCI initial configuration
transmission completion
interrupt
RETURN
transmit and receive next data?
disable interrupt (mask).
set STmn bit to 1.
communication completed.
No
Yes
main program
interrupt process program
main program
if interrupt generated via
transmission completion, jump
to interrupt process program.
update communication data count,
confirm whether there is next transmit
and receive data.
read transmit data from buffer and write
into SIOp, update transmit data pointer
Transmit and receive
completed?
No
Yes
read received data into
SIOp(=SDRmn[7:0])
read receiving data and write into storage region,
update receive data pointer
Note Data must be sent to the SIOp register settings before the master device starts the output clock.
