CMS32L051 User Manual |Chapter 14 Serial interface IICA

www.mcu.com.cn 547 / 703

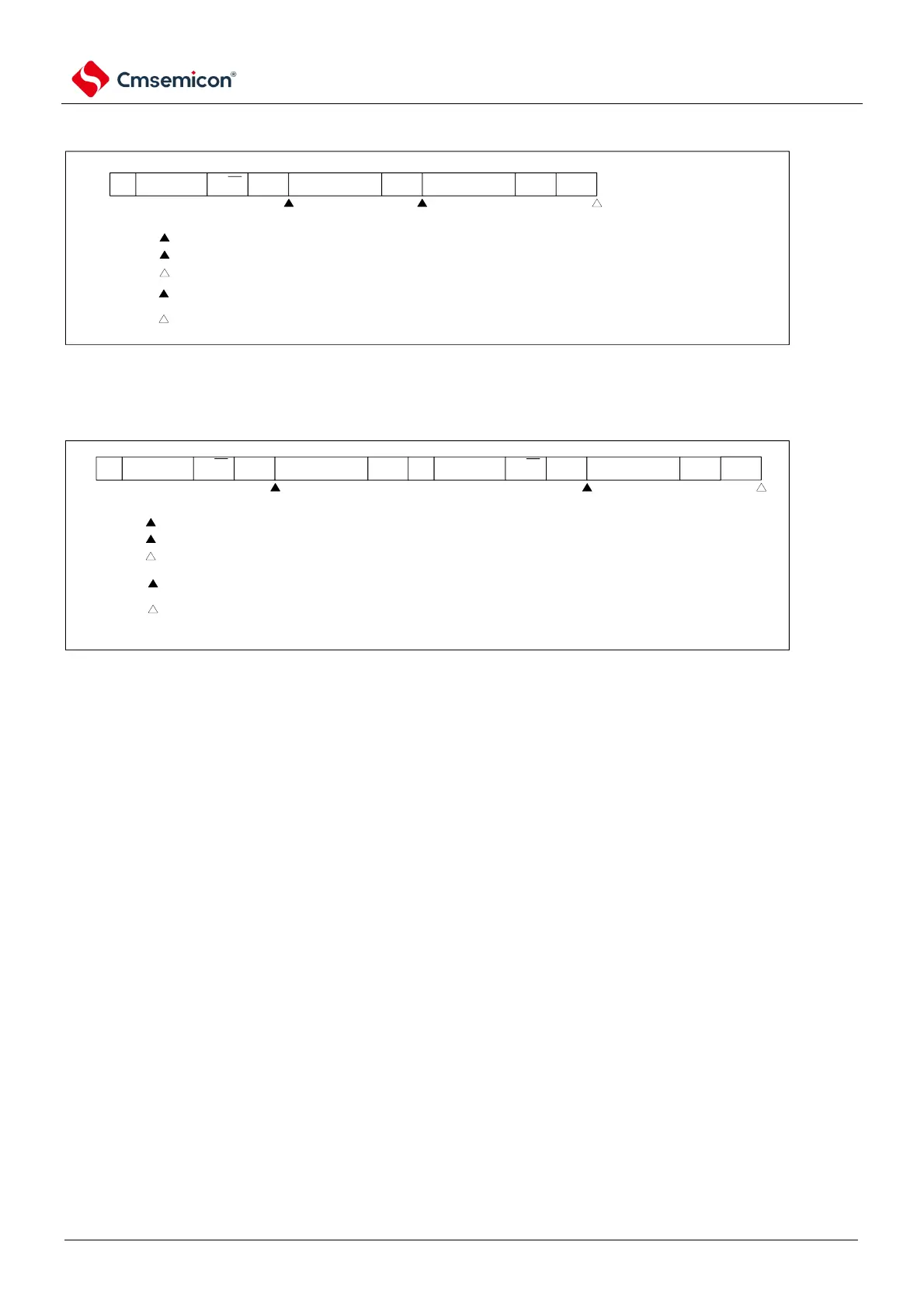

(ii)

When WTIMn=1

ST AD6~AD0 R/W ACK D7~D0 ACK D7~D0 ACK SP

1 2 3

1:IICSn=10001110B

2:IICSn=01000100B

3:IICSn=00000001B

Remark must generate

only generate while SPIEn bit is '1'

(d) A situation in which arbitration fails due to restart conditions when transferring data

(i) Non-extension code (for example, SVAn is different).

ST AD6~AD0 R/W ACK D7~D0 ACK

1:IICSn=1000X110B

2:IICSn=01000110B

3:IICSn=00000001B

ST AD6~AD0 R/W ACK D7~D0 ACK

Remark must generate

only generate while SPIEn bit is '1'

any

Note n=0
