USB on-the-go full-speed/high-speed (OTG_FS/OTG_HS) RM0390
1096/1328 RM0390 Rev 4
PTXQSAV bits in the OTG_HNPTXSTS register or NPTQXSAV bits in the
OTG_HNPTXSTS register.
31.8 SOF trigger

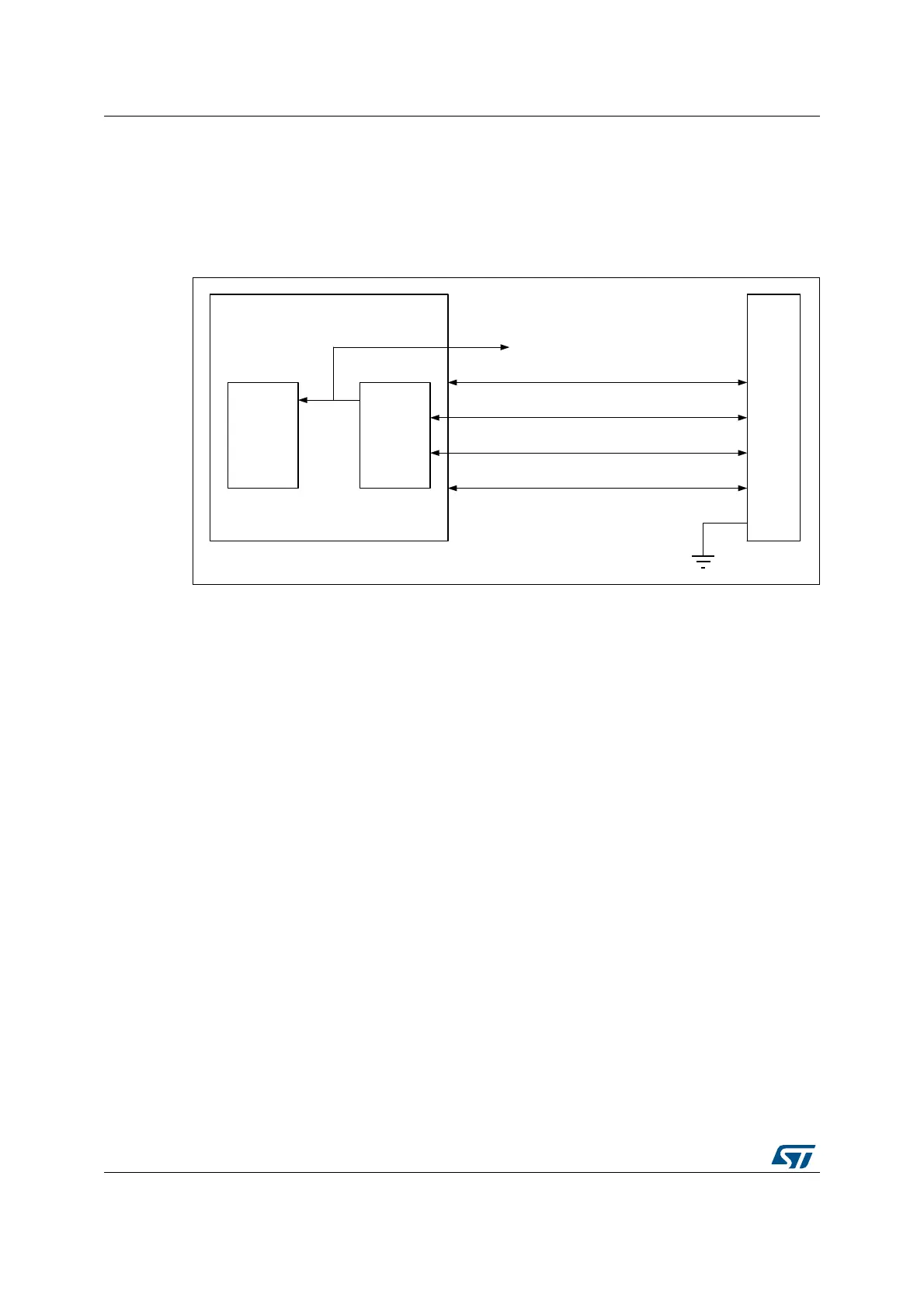

Figure 405. SOF connectivity (SOF trigger output to TIM and ITR1 connection)
The OTG_FS/OTG_HS core provides means to monitor, track and configure SOF framing in
the host and peripheral, as well as an SOF pulse output connectivity feature.
Such utilities are especially useful for adaptive audio clock generation techniques, where
the audio peripheral needs to synchronize to the isochronous stream provided by the PC, or
the host needs to trim its framing rate according to the requirements of the audio peripheral.
31.8.1 Host SOFs
In host mode the number of PHY clocks occurring between the generation of two
consecutive SOF (HS/FS) or Keep-alive (LS) tokens is programmable in the host frame
interval register (HFIR), thus providing application control over the SOF framing period. An
interrupt is generated at any start of frame (SOF bit in OTG_GINTSTS). The current frame
number and the time remaining until the next SOF are tracked in the host frame number
register (HFNUM).
A SOF pulse signal, is generated at any SOF starting token and with a width of 12 system
clock cycles. The SOF pulse is also internally connected to the input trigger of the timer, so
that the input capture feature, the output compare feature and the timer can be triggered by
the SOF pulse.
31.8.2 Peripheral SOFs
In device mode, the start of frame interrupt is generated each time an SOF token is received
on the USB (SOF bit in OTG_GINTSTS). The corresponding frame number can be read
from the device status register (FNSOF bit in OTG_DSTS). A SOF pulse signal with a width
of 12 system clock cycles is also generated.The SOF pulse signal is also internally
connected to the TIM input trigger, so that the input capture feature, the output compare
feature and the timer can be triggered by the SOF pulse.
670
7,0 62)JHQ
62)SXOVH
86%PLFUR$%FRQQHFWRU
,75
62)SXOVHRXWSXWWR
H[WHUQDODXGLRFRQWURO
9
%86
9
66
'
'
,'
06Y9
