RM0390 Rev 4 403/1328
RM0390 Digital-to-analog converter (DAC)
422
Note: The ENx bit enables the analog DAC Channelx macrocell only. The DAC Channelx digital
interface is enabled even if the ENx bit is reset.
14.3.2 DAC output buffer enable
The DAC integrates two output buffers that can be used to reduce the output impedance,
and to drive external loads directly without having to add an external operational amplifier.
Each DAC channel output buffer can be enabled and disabled using the corresponding
BOFFx bit in the DAC_CR register.

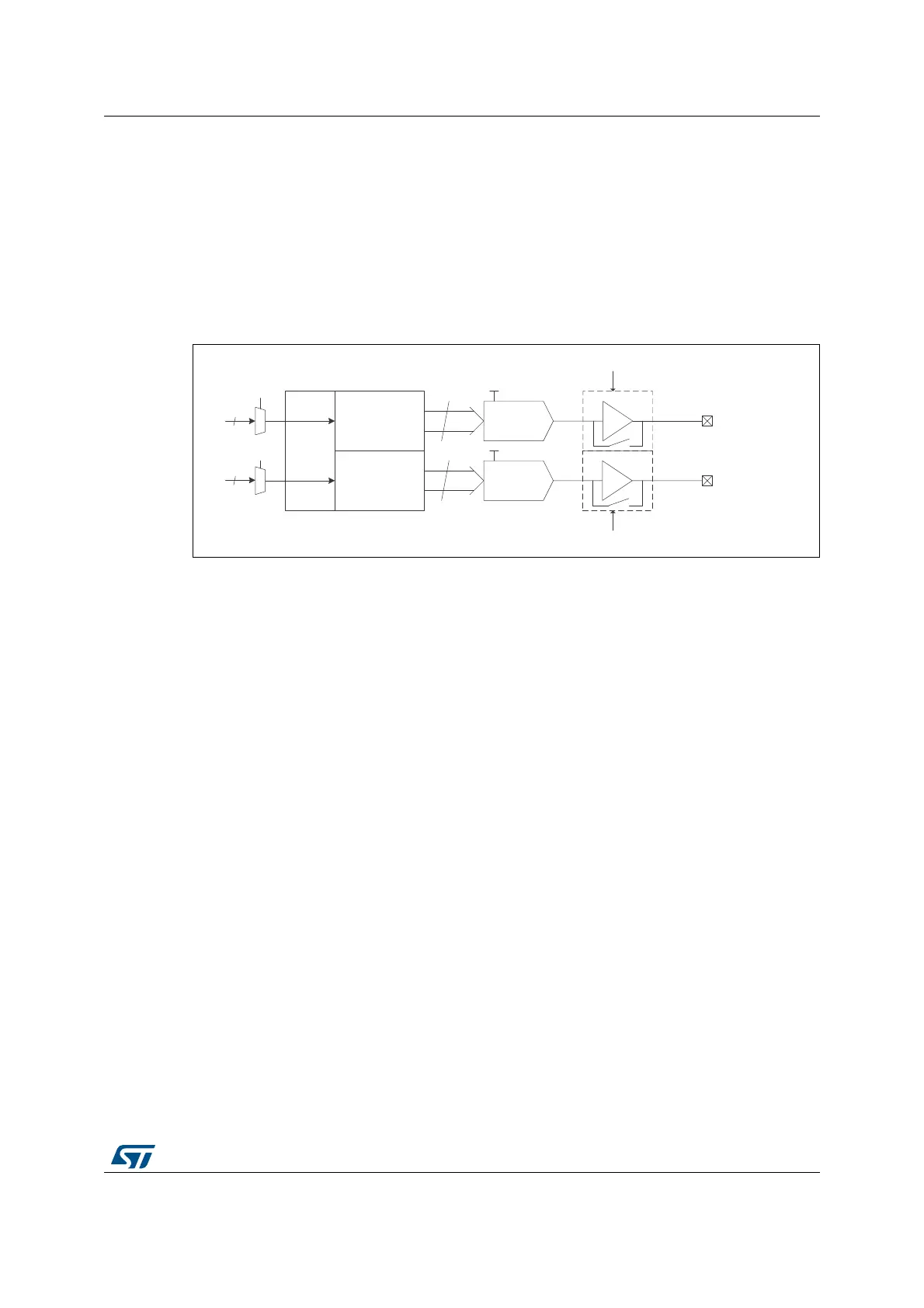

Figure 93. DAC output buffer connection
14.3.3 DAC data format
Depending on the selected configuration mode, the data have to be written into the specified
register as described below:
• Single DAC channelx, there are three possibilities:
– 8-bit right alignment: the software has to load data into the DAC_DHR8Rx [7:0]
bits (stored into the DHRx[11:4] bits)
– 12-bit left alignment: the software has to load data into the DAC_DHR12Lx [15:4]
bits (stored into the DHRx[11:0] bits)
– 12-bit right alignment: the software has to load data into the DAC_DHR12Rx [11:0]
bits (stored into the DHRx[11:0] bits)
Depending on the loaded DAC_DHRyyyx register, the data written by the user is shifted and
stored into the corresponding DHRx (data holding registerx, which are internal non-memory-
mapped registers). The DHRx register is then loaded into the DORx register either
automatically, by software trigger or by an external event trigger.
'$&
&+
&+
'$&
95()
'$&
95()
%XIIHU
'$&B&5%2))
%\SDVVZKHQ
RII
3$
3$
76(/>@
76(/>@
%XIIHU
%\SDVVZKHQ
RII
'$&B&5%2))
06Y9
