RM0390 Rev 4 183/1328
RM0390 General-purpose I/Os (GPIO)
194
Figure 20. Input floating/pull up/pull down configurations
7.3.10 Output configuration
When the I/O port is programmed as output:
The output buffer is enabled:
Open drain mode: A “0” in the Output register activates the N-MOS whereas a “1”
in the Output register leaves the port in Hi-Z (the P-MOS is never activated)
Push-pull mode: A “0” in the Output register activates the N-MOS whereas a “1” in
the Output register activates the P-MOS
The Schmitt trigger input is activated
The weak pull-up and pull-down resistors are activated or not depending on the value
in the GPIOx_PUPDR register
The data present on the I/O pin are sampled into the input data register every AHB1
clock cycle
A read access to the input data register gets the I/O state
A read access to the output data register gets the last written value

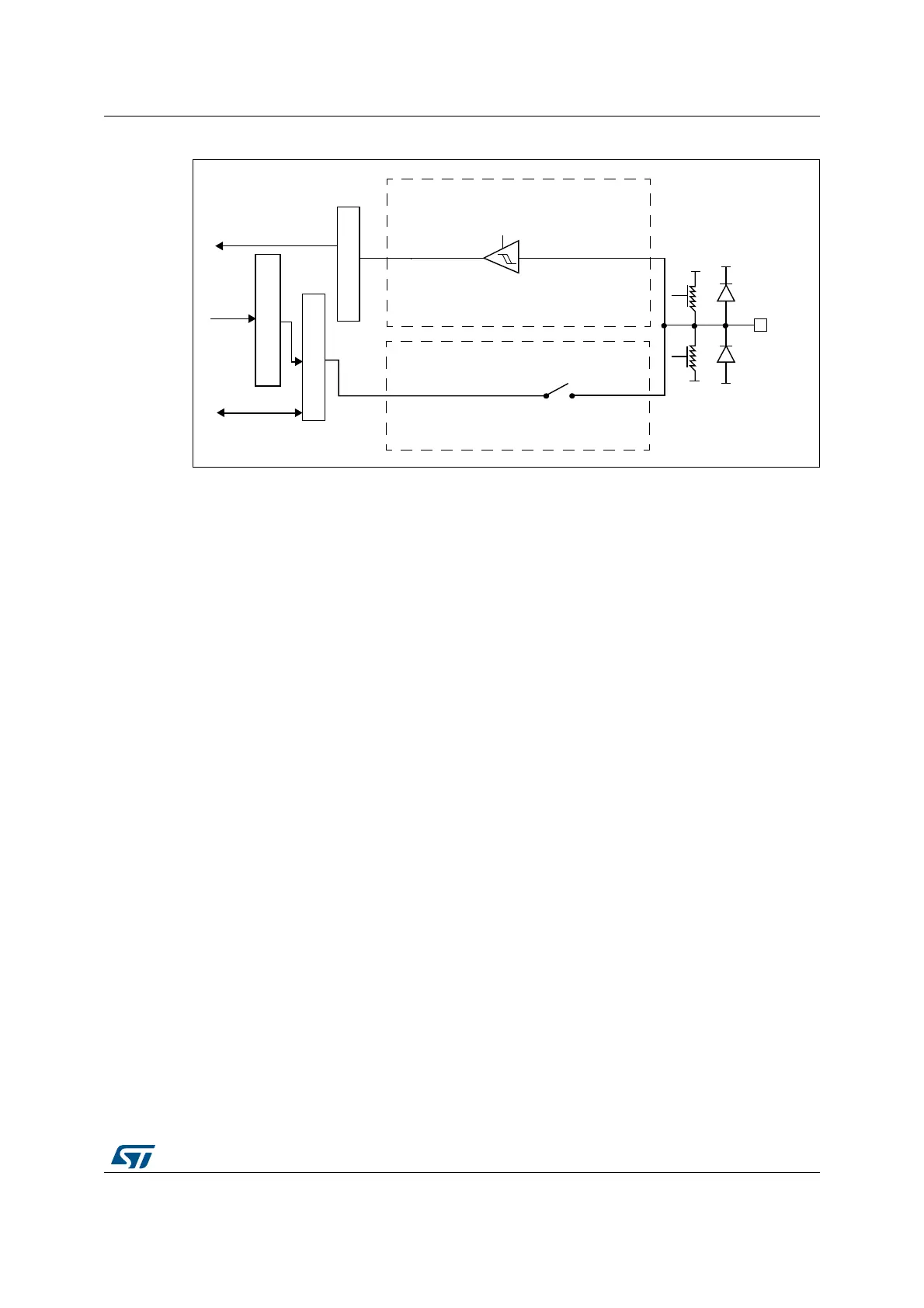

Figure 21 shows the output configuration of the I/O port bit.
ONOFF
PULL
PULL
ONOFF
)/PIN
6
$$
6
33
44,3CHMITT
TRIGGER
6
33
6
$$
PROTECTION
DIODE
PROTECTION
DIODE
ON
INPUTDRIVER
OUTPUTDRIVER
DOWN
UP
)NPUTDATAREGISTER
/UTPUTDATAREGISTER
2EADWRITE
2EAD
"ITSETRESETREGISTERS
7RITE
AIB
