RM0390 HDMI-CEC controller (HDMI-CEC)
1283

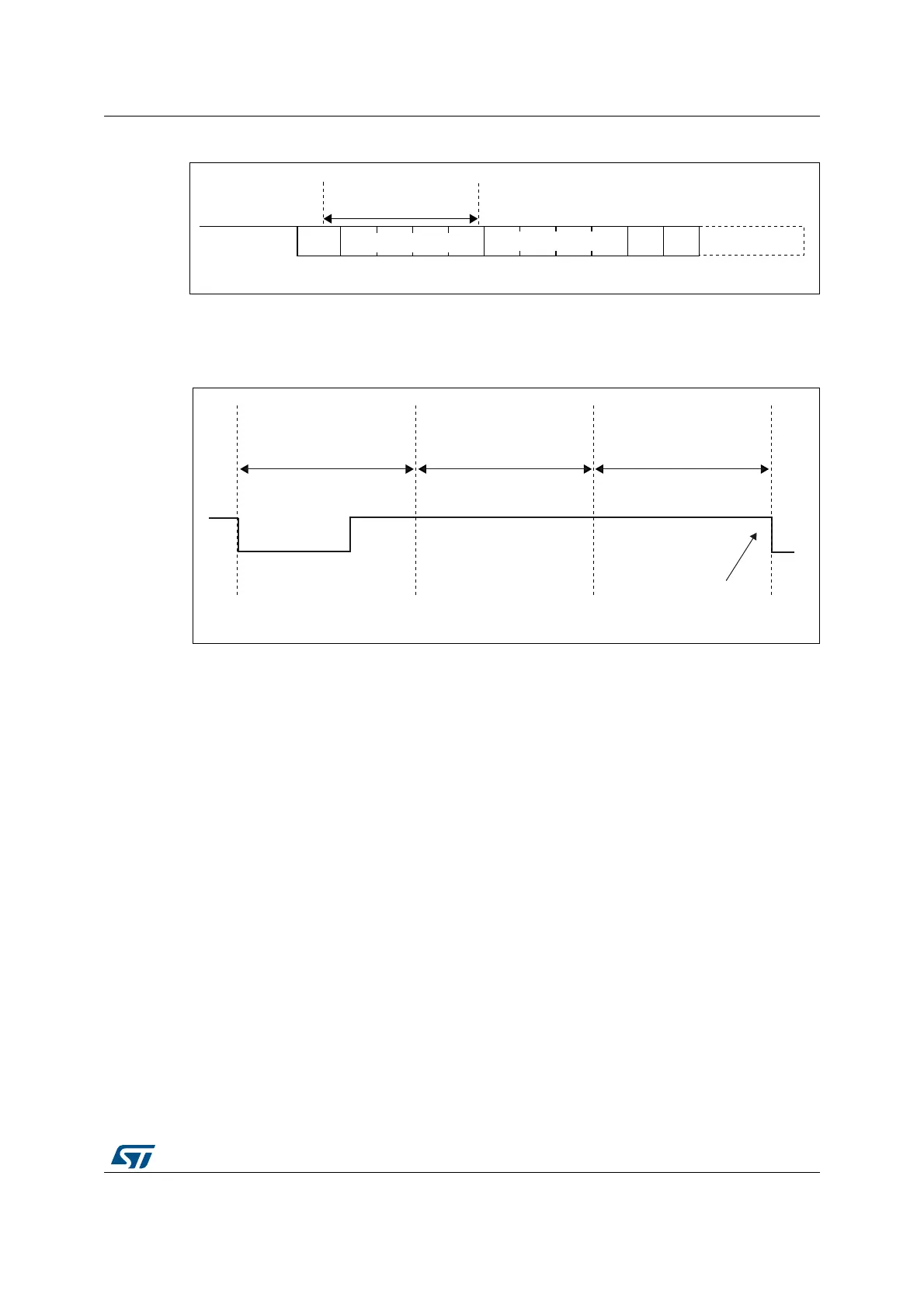

Figure 437. Arbitration phase
The Figure 438 shows an example for a SFT of three nominal bit periods
Figure 438. SFT of three nominal bit periods
A configurable time window is counted before starting the transmission.
In the SFT=0x0 configuration the HDMI-CEC device performs automatic SFT calculation
ensuring compliance with the HDMI-CEC Standard:
• 2.5 data bit periods if the CEC is the last bus initiator with unsuccessful transmission
• 4 data bit periods if the CEC is the new bus initiator
• 6 data bit periods if the CEC is the last bus initiator with successful transmission
This is done to guarantee the maximum priority to a failed transmission and the lowest one
to the last initiator that completed successfully its transmission.
Otherwise there is the possibility to configure the SFT bits to count a fixed timing value.
Possible values are 0.5, 1.5, 2.5, 3.5, 4.5, 5.5, 6.5 data bit periods.
32.4.1 SFT option bit
In case of SFTOPT=0 configuration SFT starts being counted when the start-of-
transmission command is set by software (TXSOM=1).
In case of SFTOPT=1, SFT starts automatically being counted by the HDMI-CEC device
when a bus-idle or line error condition is detected. If the SFT timer is completed at the time
TXSOM command is set then transmission starts immediately without latency. If the SFT
069
!RBITRATIONPHASE
HIGHIMPEDANCE
34!24
")4
).)4)!4/2;= $%34).!4)/.;= %/- !#+
069
ODVWELWRISUHYLRXVIUDPH
3TARTBIT
