A
FWD
B
FWD
A
NITROGEN GENERATION SYSTEM
(EXAMPLE)
(VIEW IN THE INBOARD DIRECTION)
AIR SEPARATION
MODULE (ASM)
RAM AIR ACCESS
PANEL, 192BL
NITROGEN
GENERATION
SYSTEM
1484845 S0000268316_V4
ASM - Removal and Installation

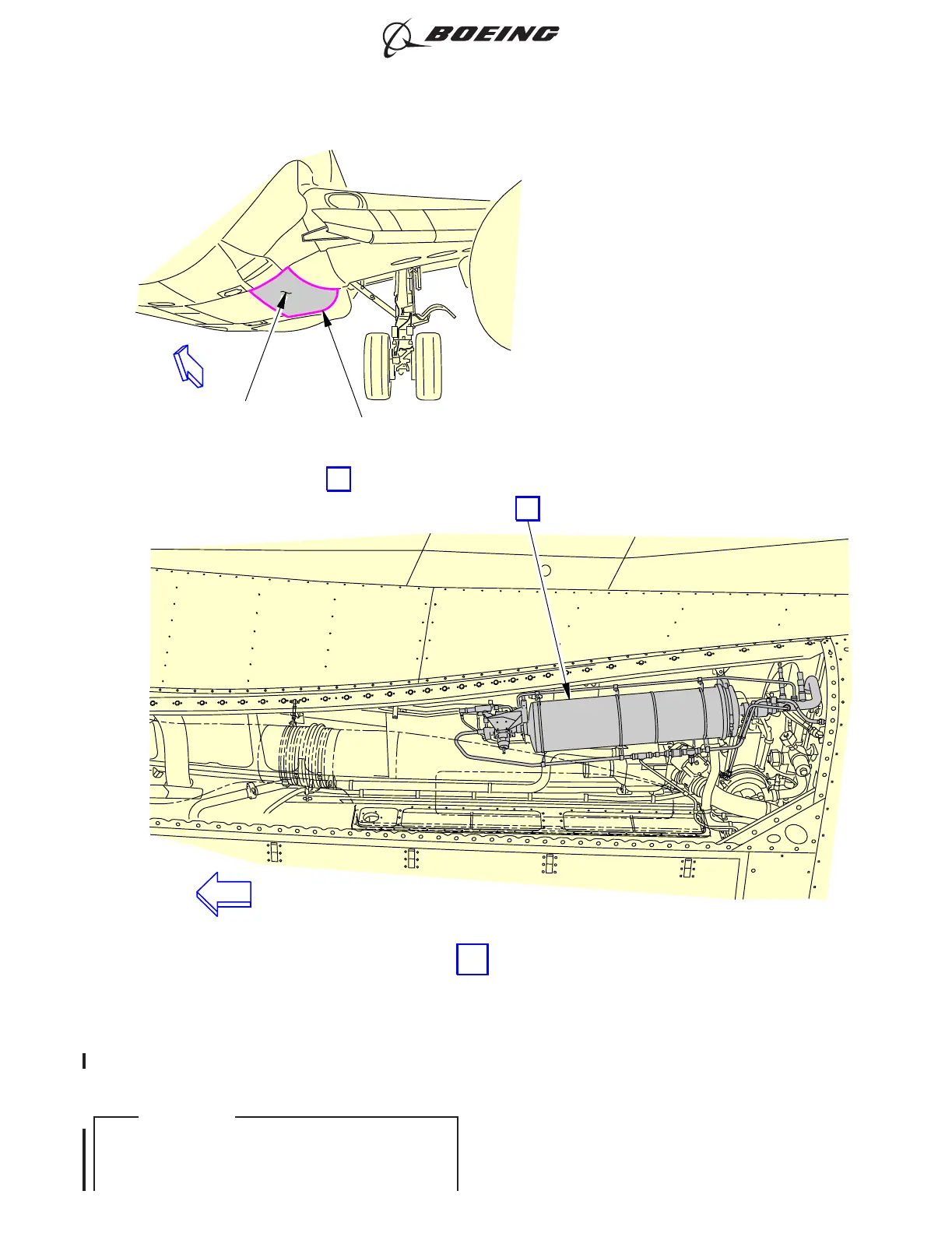

Figure 401/47-11-01-990-801 (Sheet 2 of 7)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-11-01
Page 406
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 402, 452, 509, 510, 523, 525-528, 576, 577, 590, 592-599, 601-603, 606, 607, 610-615,
620, 625-627, 691-699, 833-835, 838, 971, 980-999; ILF 101, 151, 156-199, 301, 304, 308,
310, 314, 315, 317-319, 323, 331-399, 401, 405, 406, 409, 410, 412, 416, 424, 425,
427-429, 451, 501-504, 507, 508, 512-514, 516, 518, 524, 531-533, 535-537, 541, 542,
552-556, 560-562, 567, 571-575, 671, 672, 686, 703, 707-710, 803-813, 821, 822, 831,
832, 836, 837, 841, 842, 851, 852, 854-858, 861-863, 871-874, 947, 948, 968-970, 972,
973 POST SB 737-47-1003; ILF 568, 569, 581, 583, 585, 588, 589 POST SB 737-47-1015
OR POST SB 737-47-1012
