Boeing 737-600 - Page 1124

C
B
D
C
D
F
W
D
REAR SPAR
FLAME
ARRESTOR
SEALANT
[4] FLARELESS
FITTING
[5] NEADS
TUBE
[3] NUT
[2] WASHER
[1] FLAME
ARRESTOR
[7] O-RING
REAR
SPAR
FLAME ARRESTOR
SEALANT
SEALANT
REAR
SPAR
[8] PRESSURE
SEAL CAP
WHEEL WELL SIDE
WHEEL
WELL
SIDE
TANK
SIDE
TANK
SIDE
2121912 S0000457381_V2

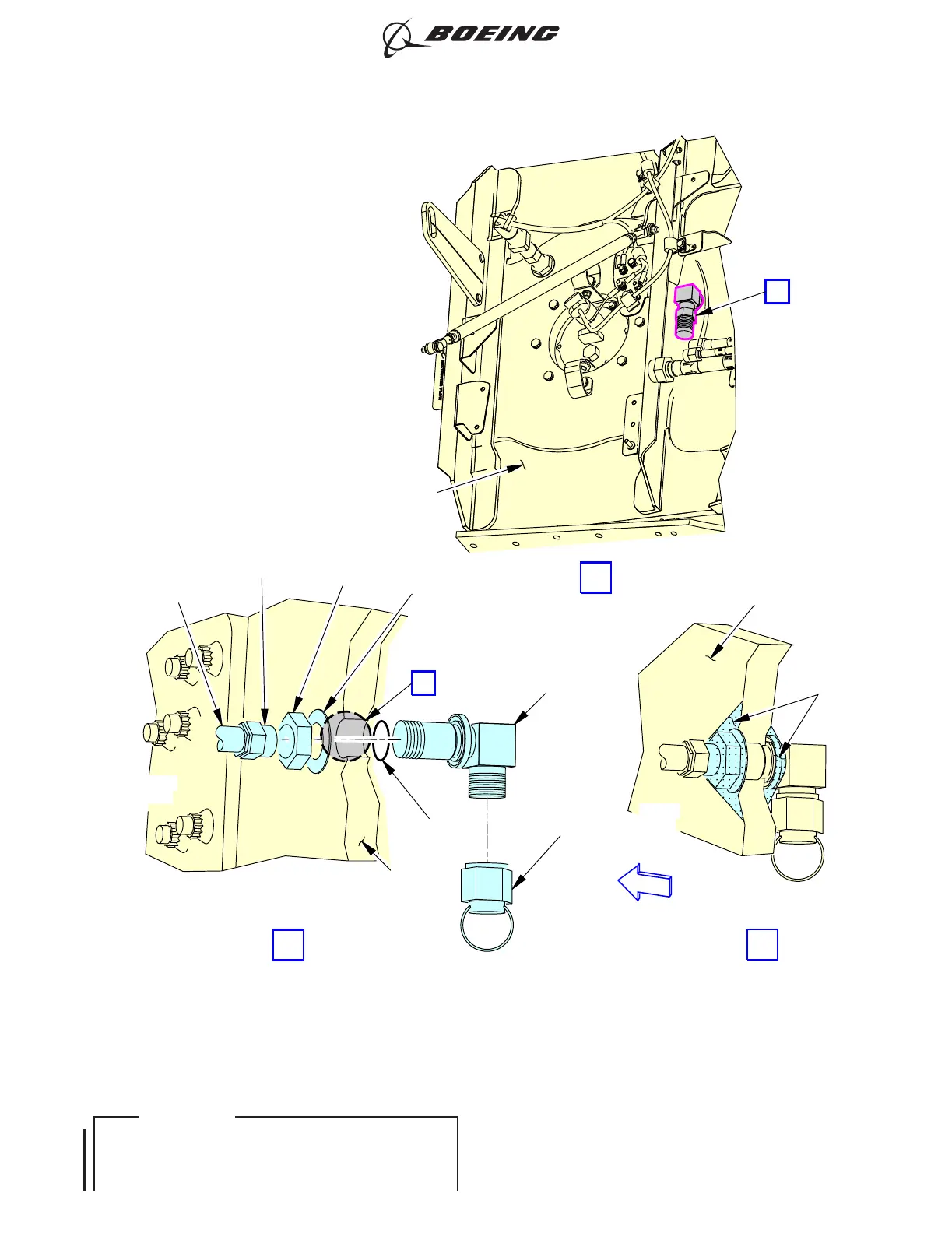

Flame Arrestor
Figure 401/47-21-07-990-801 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-21-07
Page 408
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
