FWD
A
B
INBD
FWD
B
A
[1] UPPER
LIGHTNING
SHIELD
FLAME
ARRESTOR
LEFT MAIN
LANDING GEAR
WHEEL WELL
LEFT WING
[21] BOLT OR
[2] RIVET
[22] COLLAR
(2 LOCATIONS)
WIRE
BUNDLE
[3] CAP SCREW
[23] SPACER
VERTICAL
STIFFENER
[1] UPPER
LIGHTNING
SHIELD
LOWER
LIGHTNING
SHIELD
[22] CLAMP
1539975 S0000280494_V3

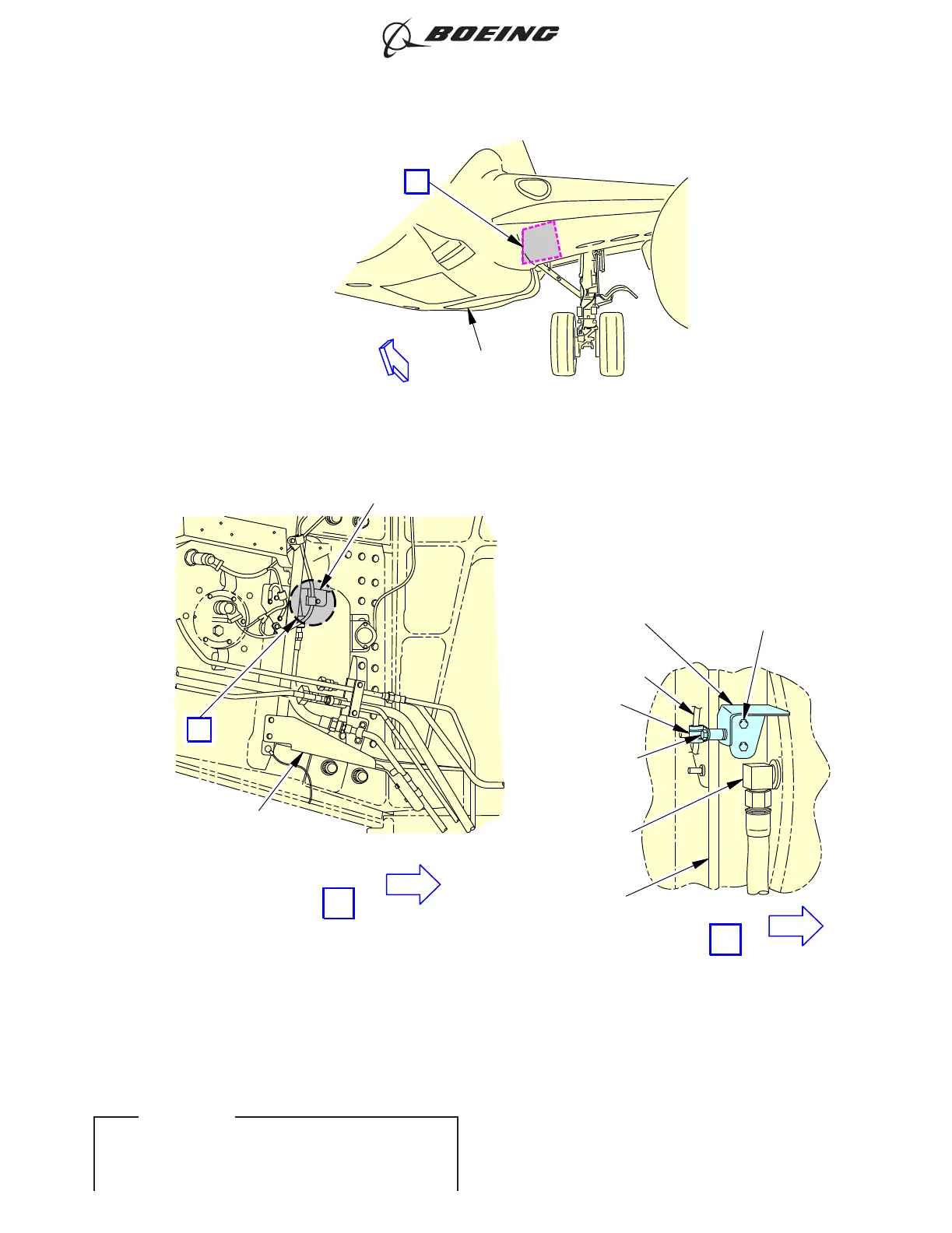

Upper Lightning Shield
Figure 401/47-21-08-990-801 (Sheet 1 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-21-08
Page 403
D633A101-ILF Jun 15/2019
