Ground Tests?
PUSHBUTTON
CONTROLS
MESSAGE
DISPLAY
PRESS THE MENU PUSHBUTTON TO NAVIGATE THROUGH THE BDU MENUS (REF THE
BDU MENU DISPLAY MAP). WHEN YOU PRESS THE MENU PUSHBUTTON THE BDU
WILL DISPLAY THE PREVIOUS MENU. THE MENU PUSHBUTTON IS ALSO USED TO
IMMEDIATELY STOP THE BDU GROUND TESTS.
PRESS THE YES PUSHBUTTON TO REPLY TO THE MESSAGE DISPLAY QUESTION (?).
THE YES PUSHBUTTON IS ALSO USED TO START THE BDU GROUND TEST.
PRESS THE NO PUSHBUTTON TO REPLY TO THE MESSAGE DISPLAY QUESTION (?).
PRESS THE DOWN ARROW PUSHBUTTON TO SCROLL DOWNWARD THROUGH THE LIST OF
ITEMS AVAILABLE FOR A SPECIFIC MENU.
PRESS THE ON/OFF PUSHBUTTON TO START AND STOP THE BITE DISPLAY. THE
ON/OFF PUSHBUTTON CAN ALSO BE USED TO IMMEDIATELY STOP THE BDU GROUND
TESTS.
PRESS THE UP ARROW PUSHBUTTON TO SCROLL UPWARD THROUGH THE LIST OF
ITEMS AVAILABLE FOR A SPECIFIC MENU.
THE PUSHBUTTON CONTROL AND ARROW SHOW THE RESPONSE TO AN EVENT,
SUCH AS WHAT HAPPENS WHEN YOU PRESS THE YES PUSHBUTTON.

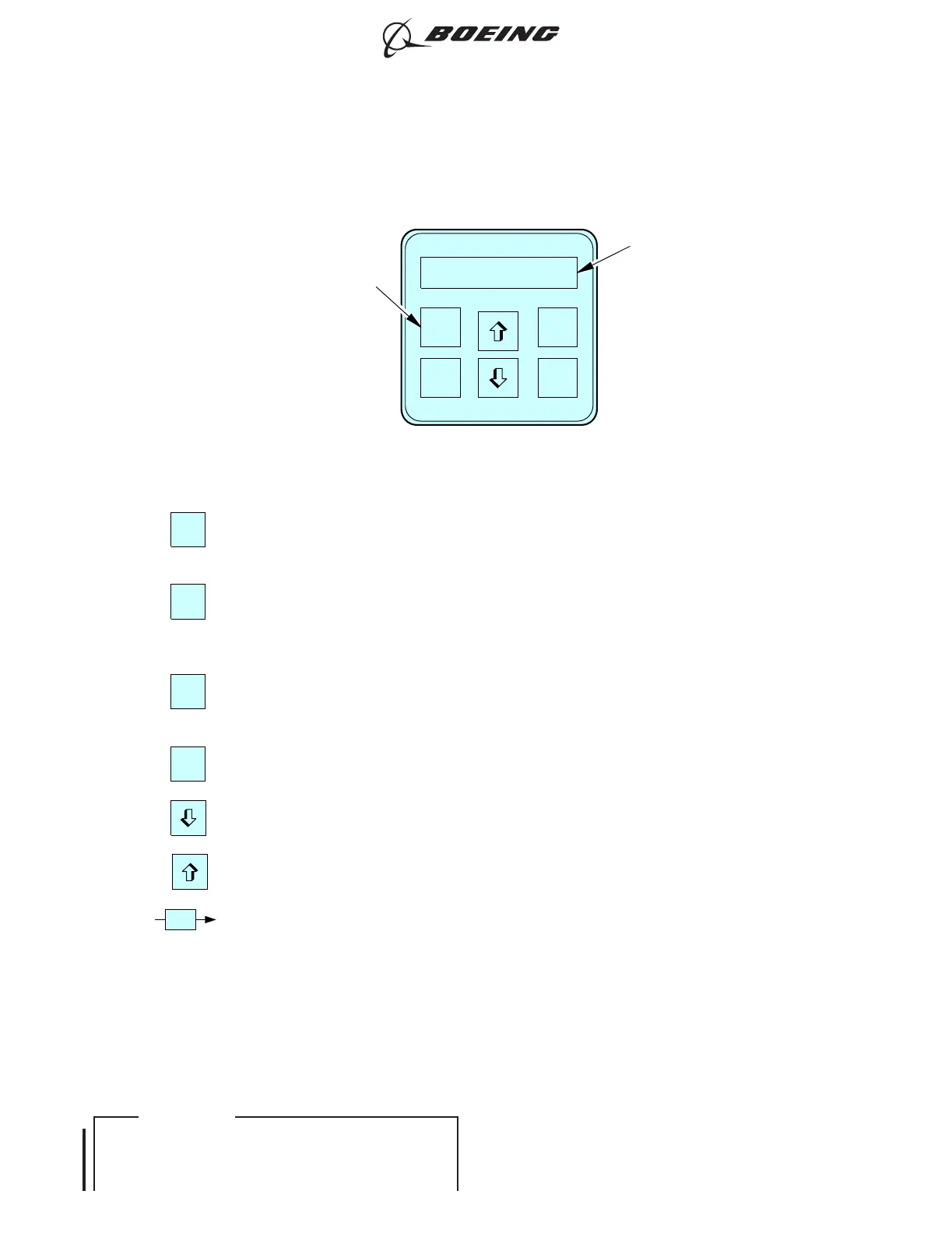

BDU CONTROL PANEL
LEGEND:
J85771 S0000180481_V5
BDU Pushbutton Control
Figure 202/47-31-02-990-808
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-31-02
Page 206
D633A101-ILF Oct 15/2019
