Boeing 737-600 - Page 1211

MENU
ON
OFF
NO
YES
YES
MENU MENU MENU
FLIGHT DECK
SMOKE1: NOT EVAC
Discrete Inputs?
Top of List
FLIGHT DECK
SMOKE1: NOT EVAC
FLIGHT DECK
SMOKE1: EVAC
WOW: ON GROUND
MAIN CARGO FIRE:
ARMED
TEST MODE 1:
GROUND
TEST MODE 1:
OPEN
WOW: IN AIR
MAIN CARGO FIRE:
NOT ARMED
AFT CARGO FIRE:
ARMED
AFT CARGO FIRE:
NOT ARMED
TEST MODE 2:
GROUND
TEST MODE 2:
OPEN
TEST MODE 3:
GROUND
TEST MODE 3:
OPEN
TEST MODE 3:
GROUND
TEST MODE 4:
OPEN
ID PIN 1: OPEN
ID PIN 1: GROUND
REFUEL VLV SIG1:
Valve Open
ENGINE 2 SIG:
ON
ENGINE 2 SIG:
OFF
DISCRETE INPUTS
LIST
DISCRETE INPUTS
LIST
DISCRETE INPUTS
LIST
DISCRETE INPUTS
LIST
DISCRETE INPUTS
LIST
DISCRETE INPUTS
LIST
I/O Monitor?
Other Functions?
MAIN MENU
OTHER FUNCTIONS
FLIGHT DECK
SMOKE1: NOT EVAC
DISCRETE INPUTS
Discrete Inputs?
I/O MONITOR
SEE LIST BELOW
End of List
FILTER DP SW:
High Pressure
FILTER DP SW:
Normal
LAMP DISCRETE:
LAMP TEST
LAMP DISCRETE:
NO TEST
WOW: ON GROUND
ENGINE 1 SIG:
ON
ENGINE 1 SIG:
OFF
ID PIN 2: OPEN
ID PIN 2: GROUND
ID PIN 3: OPEN
ID PIN 3: GROUND
ID PIN 4: OPEN
ID PIN 4: GROUND
ID PIN 5: OPEN
ID PIN 5: GROUND
PACK SIG: OFF
PACK SIG: ON
REFUEL VLV SIG1:
Valve Closed
FWD CARGO FIRE:
ARMED
FWD CARGO FIRE:
NOT ARMED
I/O MONITOR
DISCRETE INPUTS
1503864 S0000273988_V3
Other Functions Menu

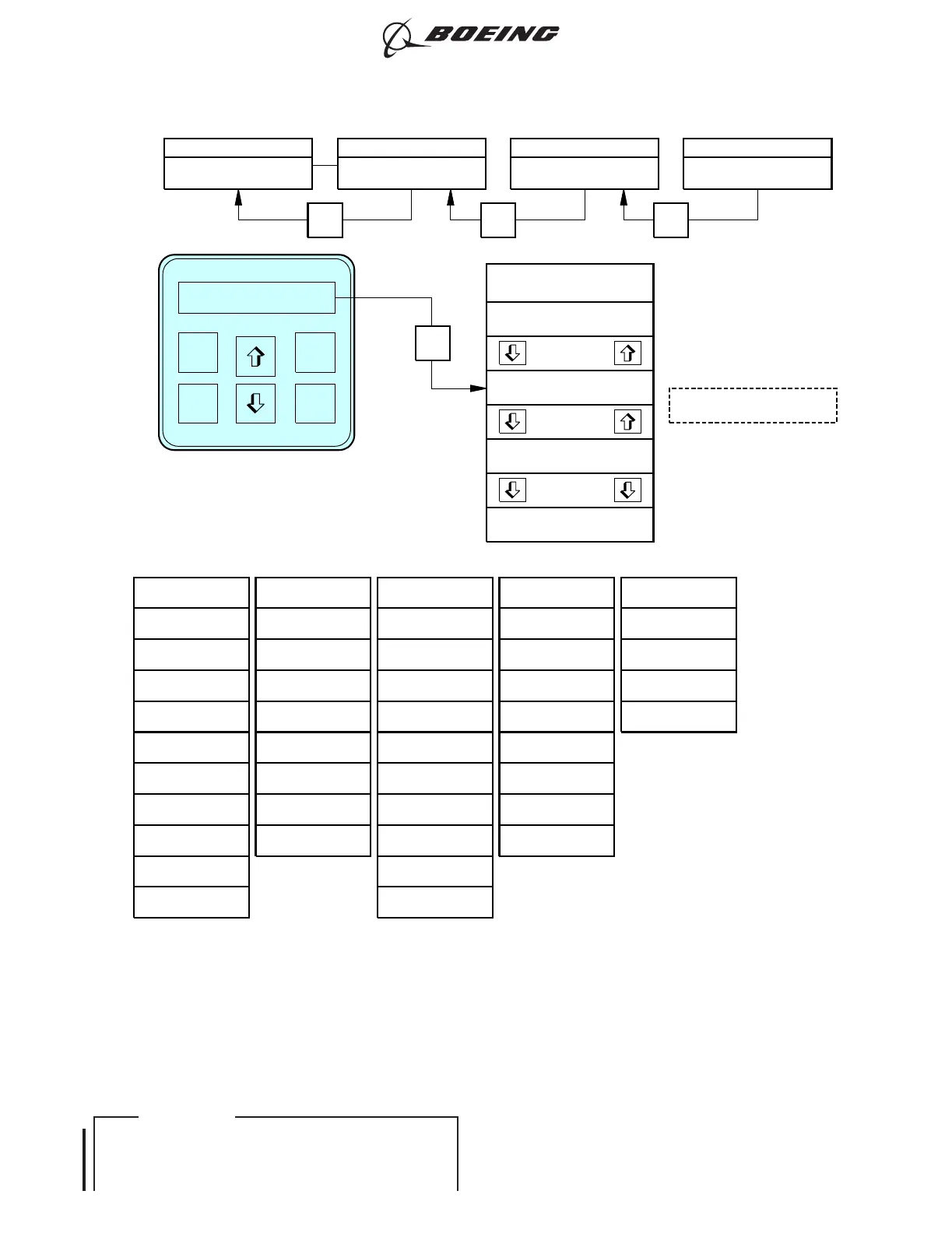

Figure 209/47-31-02-990-806 (Sheet 5 of 7)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-31-02
Page 254
D633A101-ILF Oct 15/2019
