F
W
D
INBD
B
NGS SHUTOFF VALVE
[1] NGS
SHUTOFF
VALVE
[2] BLEED AIR
INLET DUCT
[4] COUPLING
[5] COUPLING
[3] SEAL
[6] OZONE
CONVERTER
[12] BONDING
JUMPER
[8] LOCKPIN
[9] SCREW
BONDING TAB
[7] ELECTRICAL
CONNECTOR
[10] WASHER
[11] NUT
[10] WASHER
SERVO HOUSING
J73923 S0000177219_V6

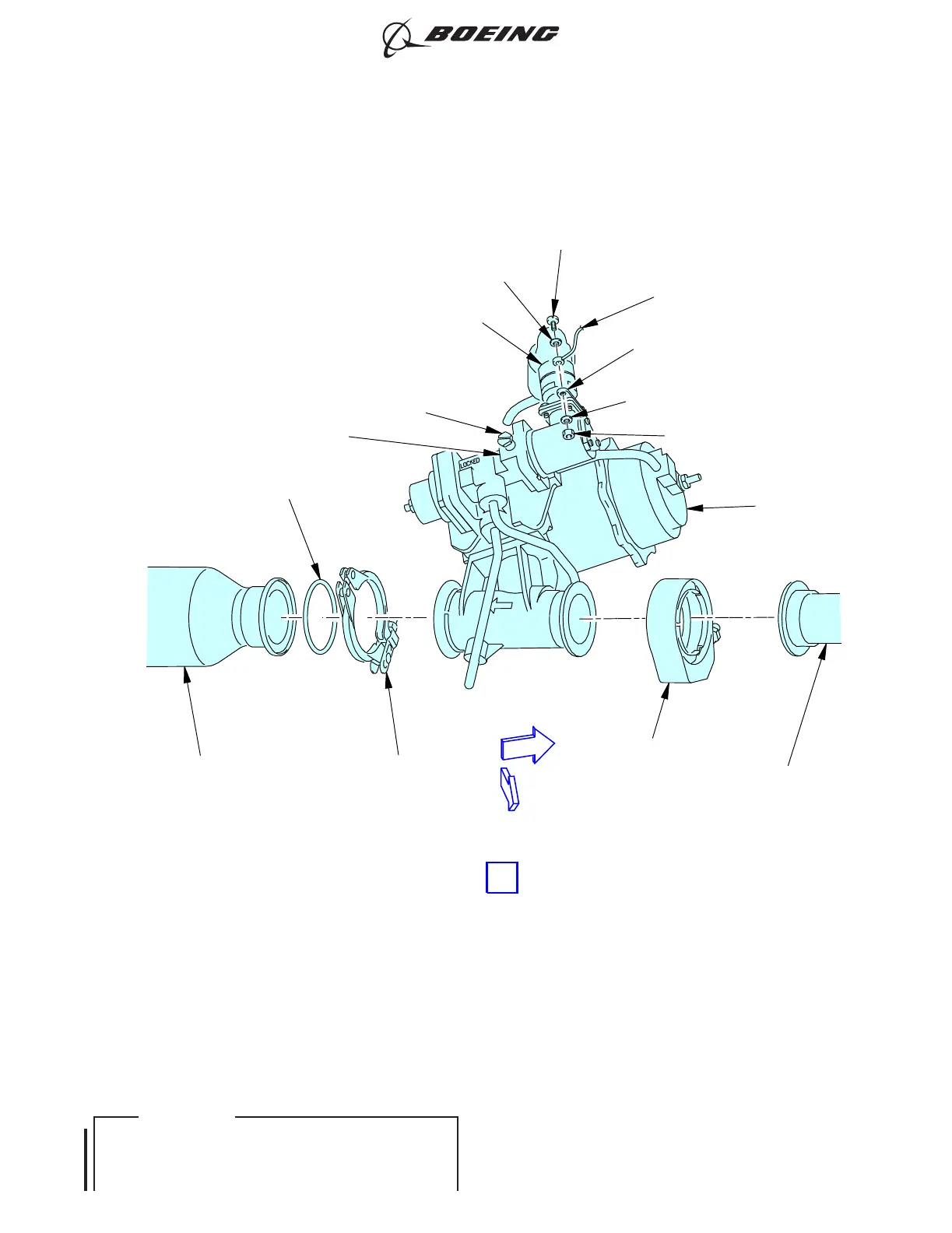

NGS Shutoff Valve
Figure 401/47-32-01-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-32-01
Page 405
D633A101-ILF Oct 15/2019
