C
B
C
RAM AIR VALVE
BONDING JUMPER
HEAT EXCHANGER
[1] RAM AIR
VALVE
[15] SEAL
RAM AIR
EXHAUST
[3] ELECTRICAL
CONNECTOR
[4] MUSCLE
AIR LINE
[13] COUPLING
[9] O-RING
[8] COUPLING
[6] HOSE
CLAMP
[7] FLEXIBLE
HOSE
[10] MANUAL LOCKING
HEX BOLT
[2] BONDING JUMPER
[2] BONDING
JUMPER
[11] BOLT
[12] WASHER
(QTY 2)
BONDING
TAB
[14] NUT
[5] EXHAUST
DUCT
D79247 S0000178735_V4

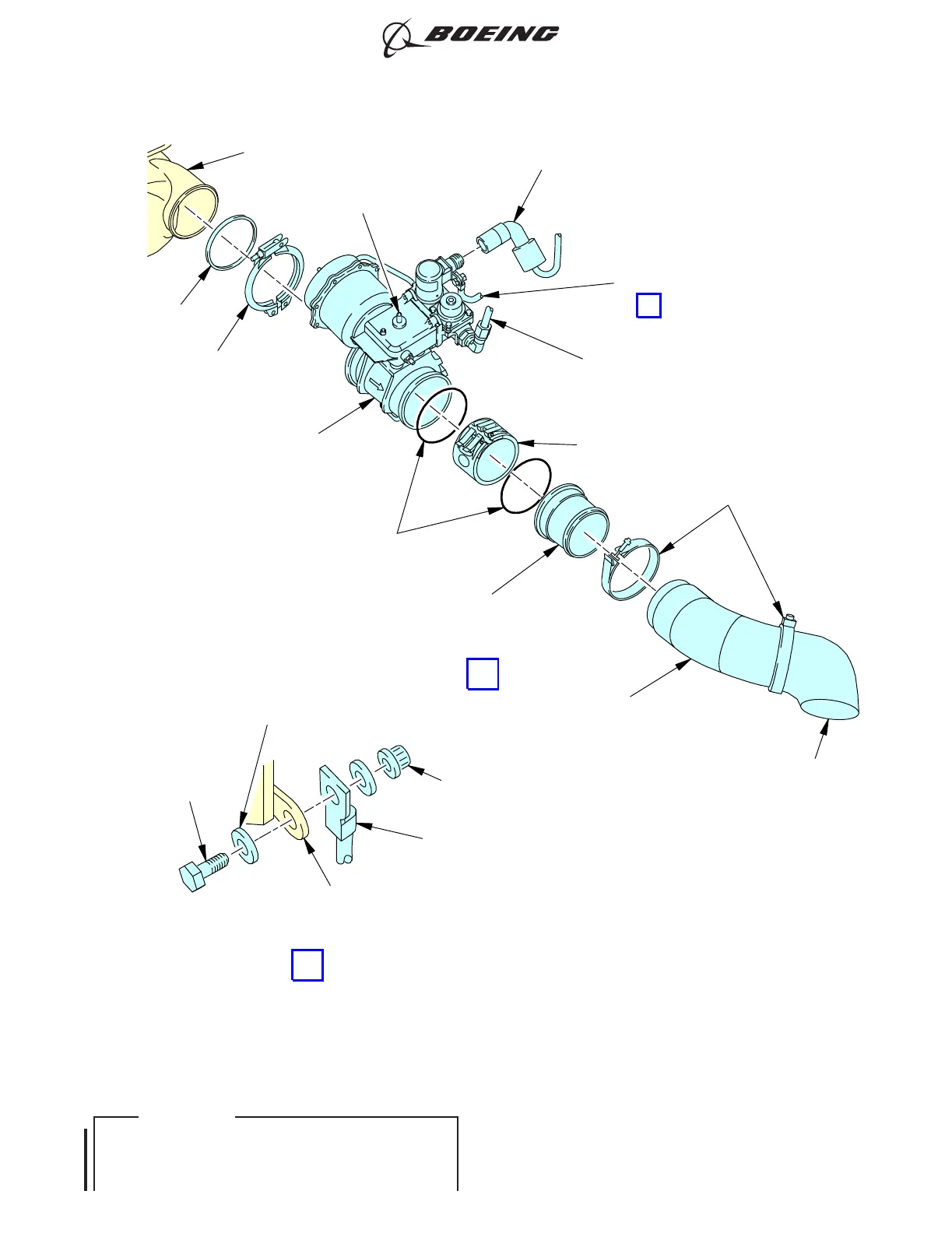

Ram Air Valve
Figure 401/47-32-05-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-32-05
Page 405
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 402, 452, 509, 510, 523, 525-528, 568, 569, 576, 577, 581, 583, 585, 588-590,
592-599, 601-603, 606, 607, 610-615, 620, 625-627, 691-699, 833-835, 838, 971, 980-999;
ILF 101, 151, 156-199, 301, 304, 308, 310, 314, 315, 317-319, 323, 331-399, 401, 405,
406, 409, 410, 412, 416, 424, 425, 427-429, 451, 501-504, 507, 508, 512-514, 516, 518,
524, 531-533, 535-537, 541, 542, 552-556, 560-562, 567, 571-575, 671, 672, 686, 703,
707-710, 803-813, 821, 822, 831, 832, 836, 837, 841, 842, 851, 852, 854-858, 861-863,
871-874, 947, 948, 968-970, 972, 973 POST SB 737-47-1003
