Boeing 737-600 - Page 1530

A
B
FWD
FWD
A
B
FWD
DRAG BRACE
SUPPORT
FITTING
ACTUATOR
SUPPORT
FITTING
NOSE WHEEL WELL
(FORWARD BULKHEAD)
NOSE WHEEL WELL
(AFT BULKHEAD)
NOSE WHEEL WELL
(FORWARD BULKHEAD)
NOSE WHEEL WELL
(AFT BULKHEAD)
TRUNNION
SUPPORT
FITTINGS
AFT
BULKHEAD
FORWARD
BULKHEAD
SIDE PANEL
(LEFT SIDE)
SIDE PANEL
(RIGHT SIDE)
D63215 S0000162566_V2

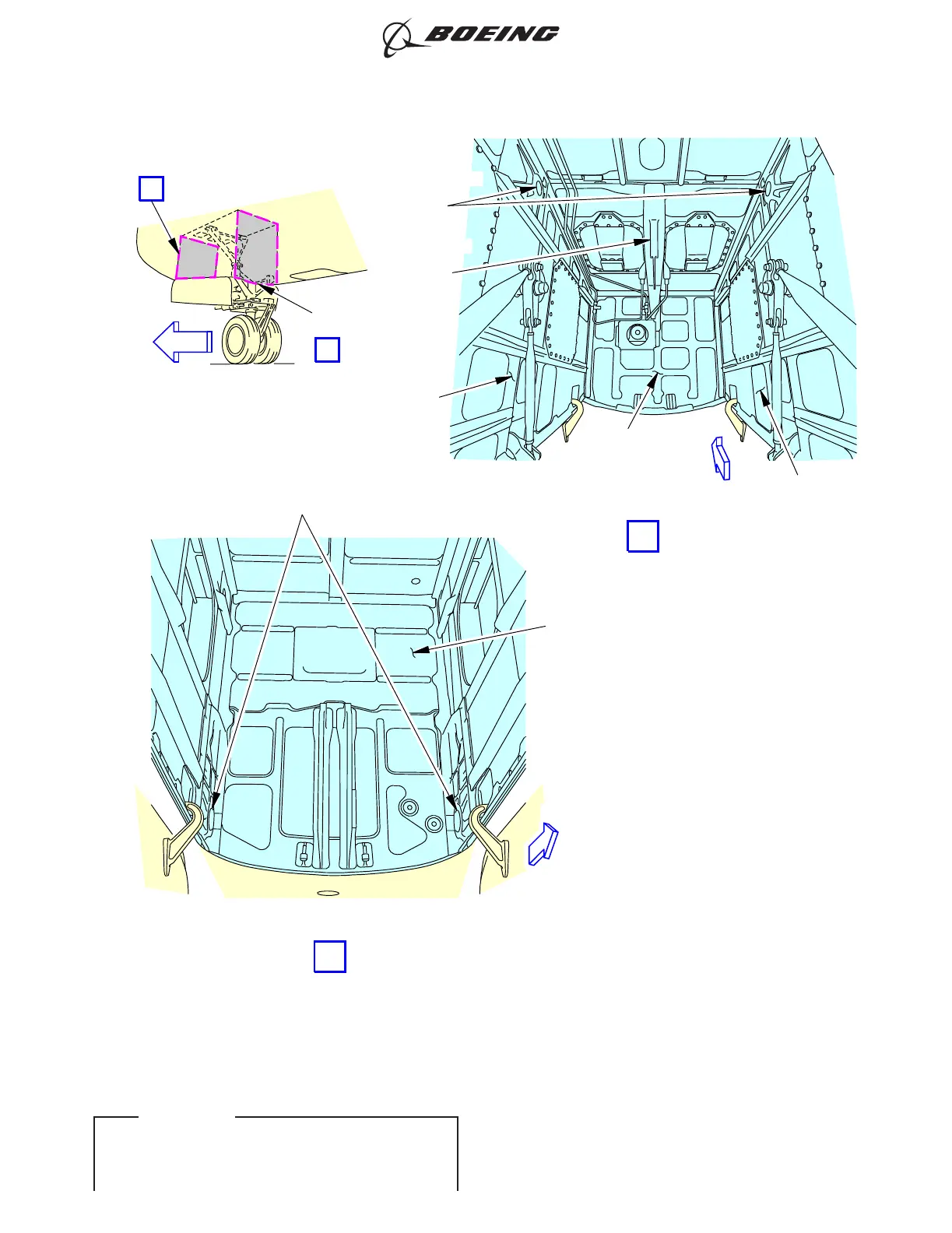

Nose Landing Gear Wheel Well
Figure 204/53-05-03-990-831
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 208
D633A101-ILF Jun 15/2018
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
