WING CENTER SECTION
REAR SPAR, BULKHEAD
(STA 663)
LOWER CHORD
LOWER LEFT WEB
UPPER
WEB
STIFFENER
SUPPORT FITTING
UPPER
CHORD
LBL
6.15
LBL
0.19
LBL
10.54
LBL
40.00
LBL
45.64
LBL
54.21
LBL
24.92
LBL
31.83
LOWER CENTER
WEB
RBL
54.21
RBL
45.64
RBL
40.00
RBL
31.83
RBL
25.00
RBL
15.54
RBL
6.15
LOWER
RIGHT
WEB
STIFFENER
STIFFENER
STIFFENER
D79184 S0000164682_V2

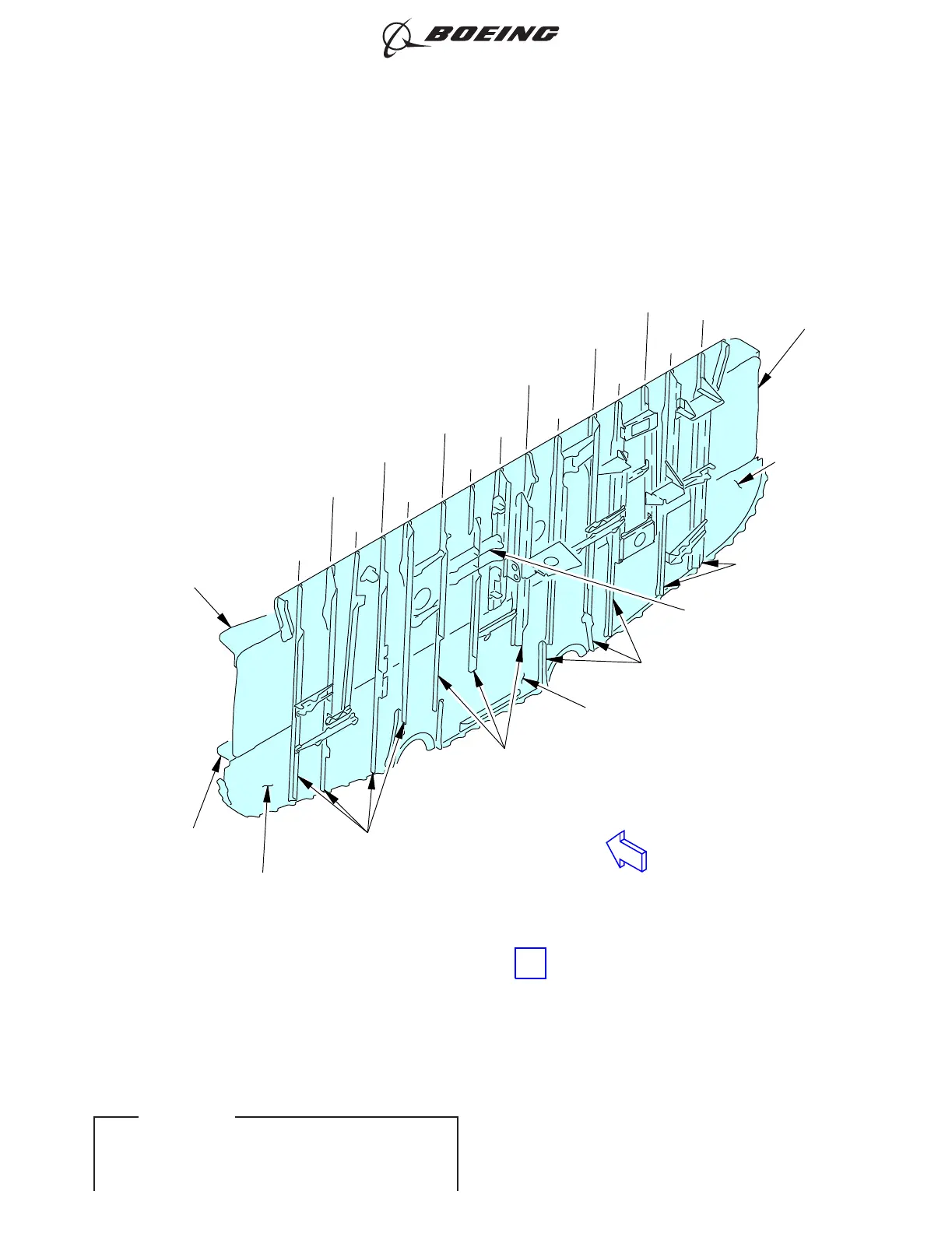

EXTERNAL-GENERAL VISUAL: MAIN LANDING GEAR WHEEL WELL
Figure 207/53-05-03-990-835 (Sheet 4 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 217
D633A101-ILF Jun 15/2018
