MPD ITEM
53-090-00
NOSE WHEEL
WELL TOP PANEL
113AC
ACTUATOR
SUPPORT FITTING
113AW
STA
224.8/227.8
BULKHEAD
113BW
DRAG BRACE
FITTING
NOSE WHEEL
WELL SIDE PANEL
TRUNNION
FITTING
STA 294
BULKHEAD
CIRCUMFERENTIAL
SKIN SPLICE
SKIN

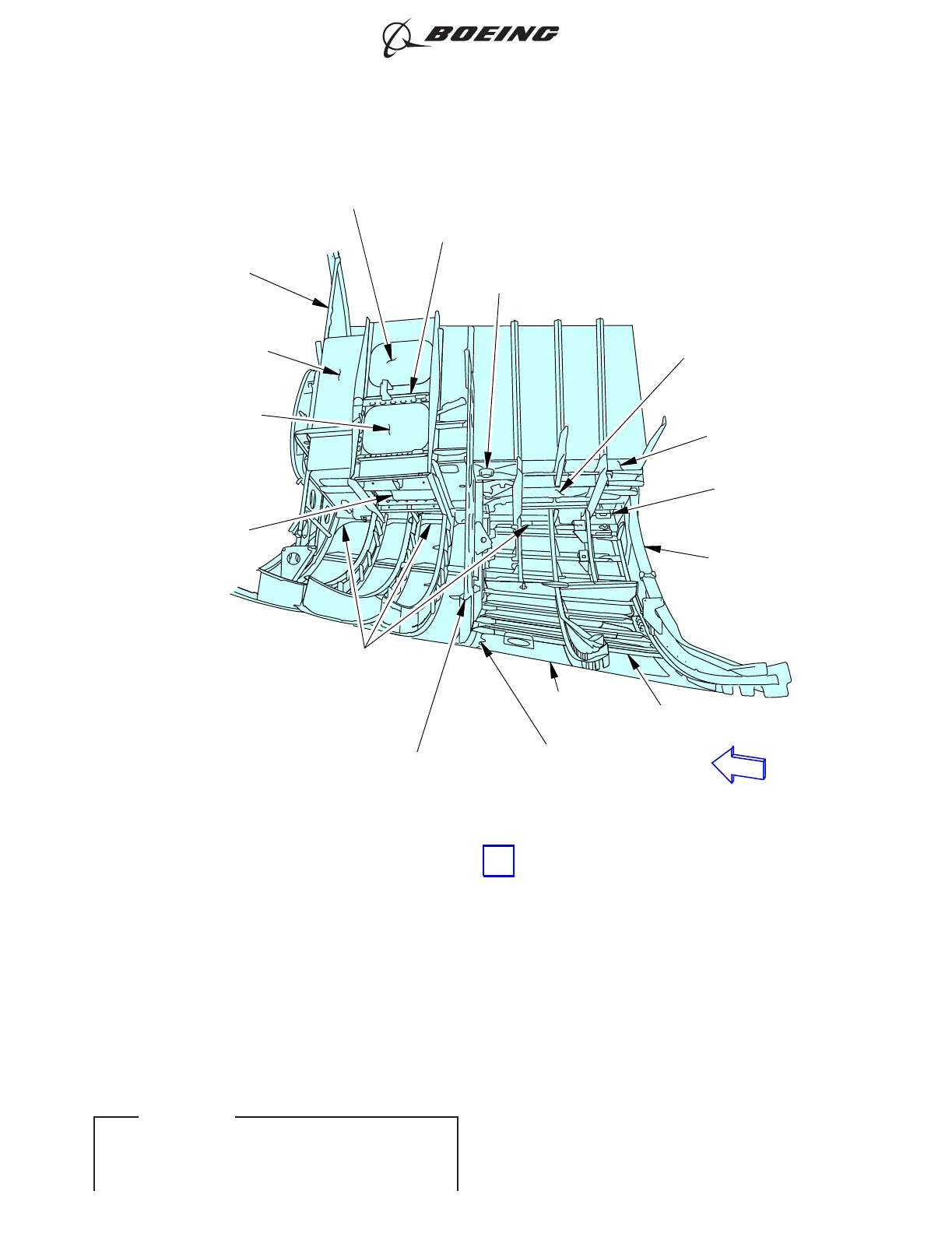

NOSE LANDING GEAR WHEEL WELL
(LEFT SIDE, VIEW IN THE DOWN DIRECTION)
STA 259.5
BULKHEAD
STRINGER
(TYPICAL)
NOSE WHEEL
WELL CUTOUT
SURROUND
STRUCTURE
114AC
2070792 S0000429416_V3
Above and Outboard of the Nose Landing Gear Wheel Well General Visual (Internal)
Figure 213/53-05-03-990-844 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 229
D633A101-ILF Jun 15/2018
