Boeing 737-600 - Page 1592

F
W
D
C
S-24
STRINGER
SKIN
FRAME
S-18
WING CENTER SECTION
FRONT SPAR
(STA 540 BULKHEAD)
LONGITUDINAL
LAP SPLICE
STA
540
STA
520
FORWARD
CARGO AFT
BULKHEAD
DRAG
ANGLE
AREA AFT OF FORWARD CARGO
(RIGHT SIDE VIEW)
MPD ITEM
53-170-00
2080303 S0000435861_V2

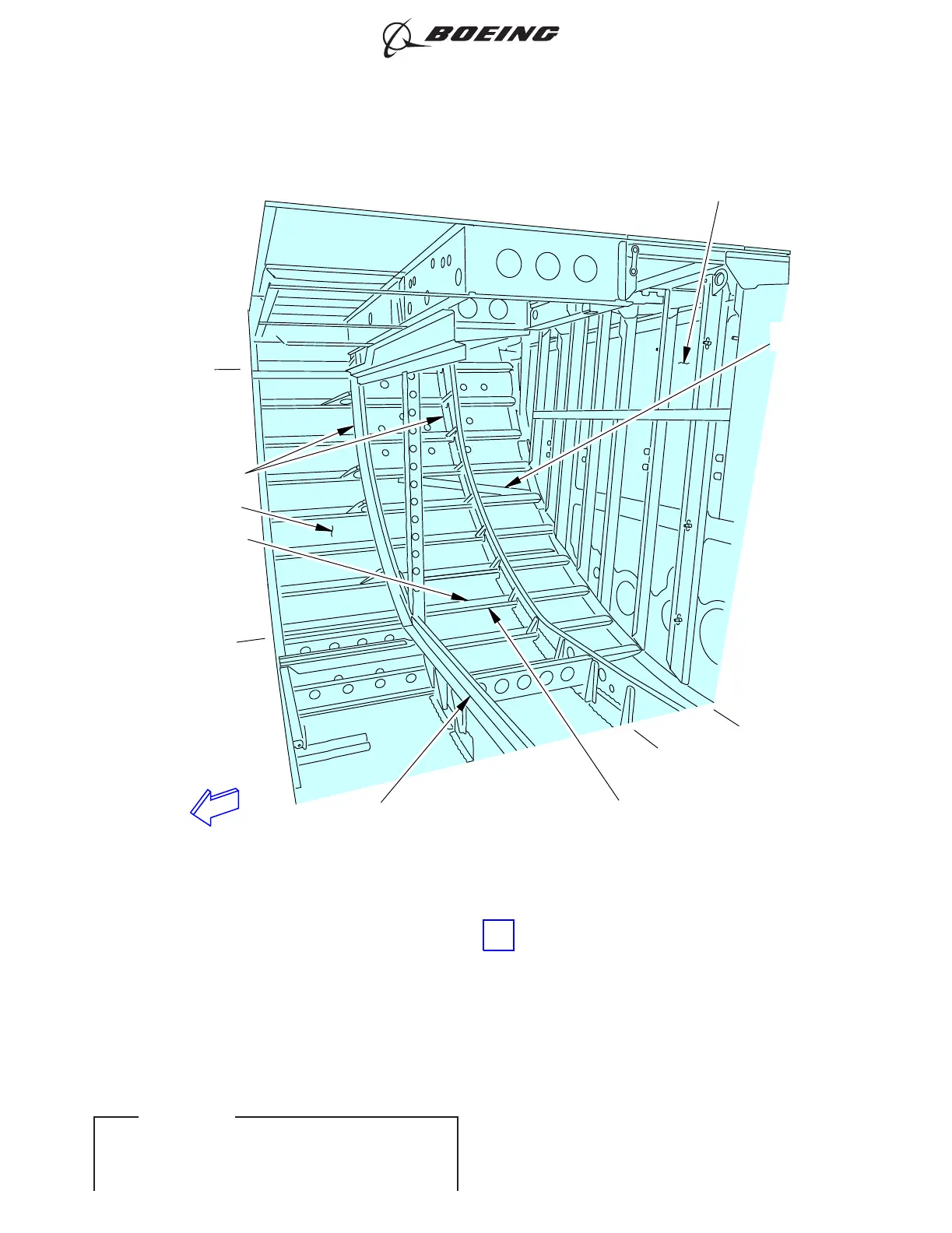

INTERNAL-GENERAL VISUAL: AREA AFT OF FORWARD CARGO COMPARTMENT
Figure 222/53-05-03-990-847 (Sheet 3 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 270
D633A101-ILF Jun 15/2018
