B
MPD ITEM
53-260-00
AREA AFT OF AFT CARGO
(STA 947.5 TO STA 1016)
(LEFT SIDE)
STA
947.5
STA
1016
S27L
CIRCUMFERENTIAL
SKIN SPLICE
STRINGER
SPLICE
FITTING
STRINGER
SKIN
AFT ENTRY DOOR
CUT-OUT SURROUND
STRUCTURE
S23L
S17L
LONGITUDINAL
LAP SPLICE
CHORD/WEB ATTACHMENTS
AND TENSION BOLTS
STIFFENERS
PRESSURE WEB
2094973 S0000442106_V2
Internal-General Visual: Internal-Area Aft Of Cargo Compartment

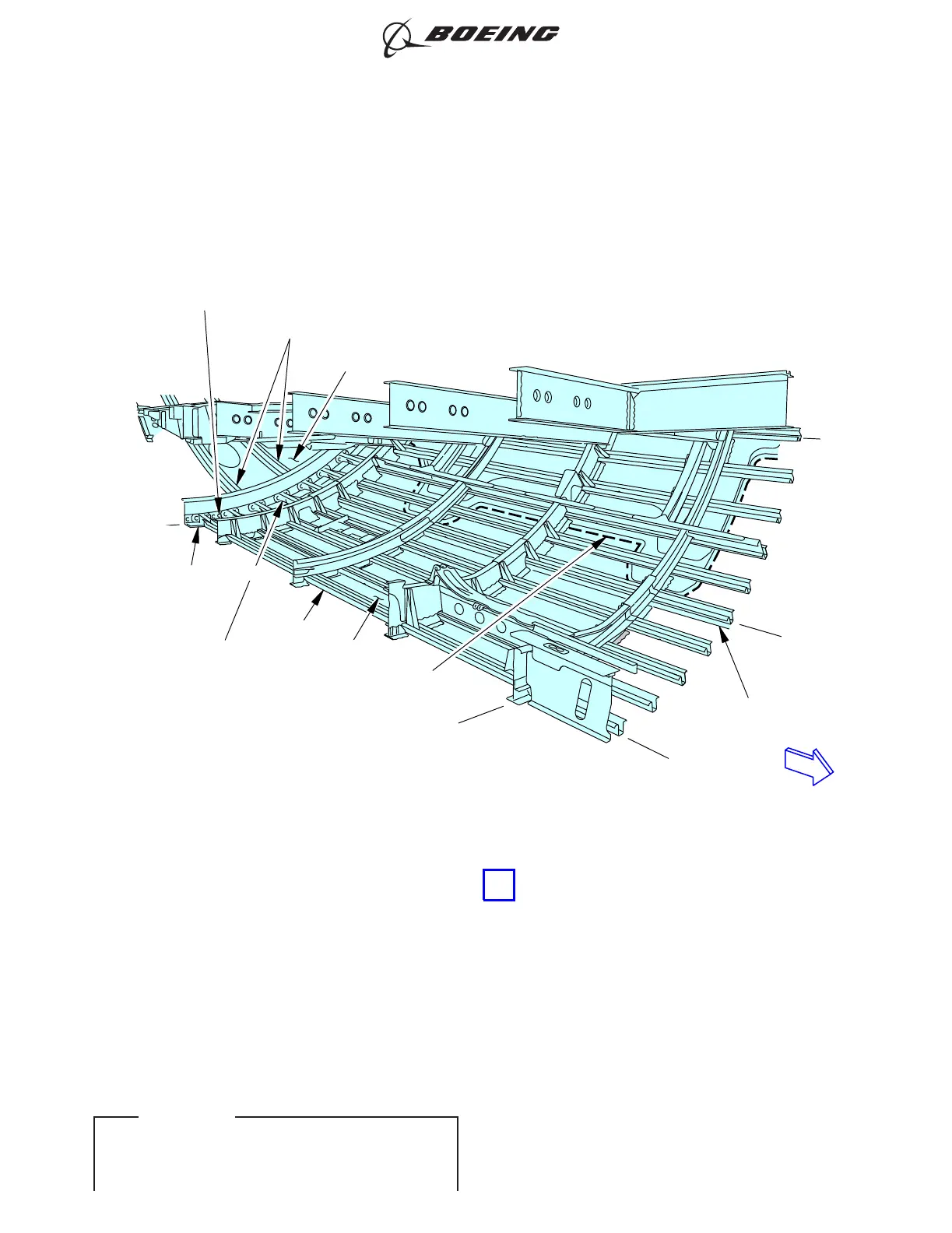

Figure 232/53-05-03-990-866 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.2
D633A101-ILF Jun 15/2018
