Boeing 737-600 - Page 1638

A
B
I
N
B
D
F
W
D
A
B
FORWARD
ENTRY
DOOR
STOP FITTING
(18 LOCATIONS)
FRAME
(TYPICAL)
HINGES
DOOR-MOUNTED
LATCH ROLLER
FRAME-MOUNTED
PRESSURE PAD
FRAME-MOUNTED
LATCH TRACK
FITTING
DOOR-MOUNTED
STOP PIN
DOOR
STRUCTURE
FRAME
STRUCTURE
LATCH
TORQUE
TUBE

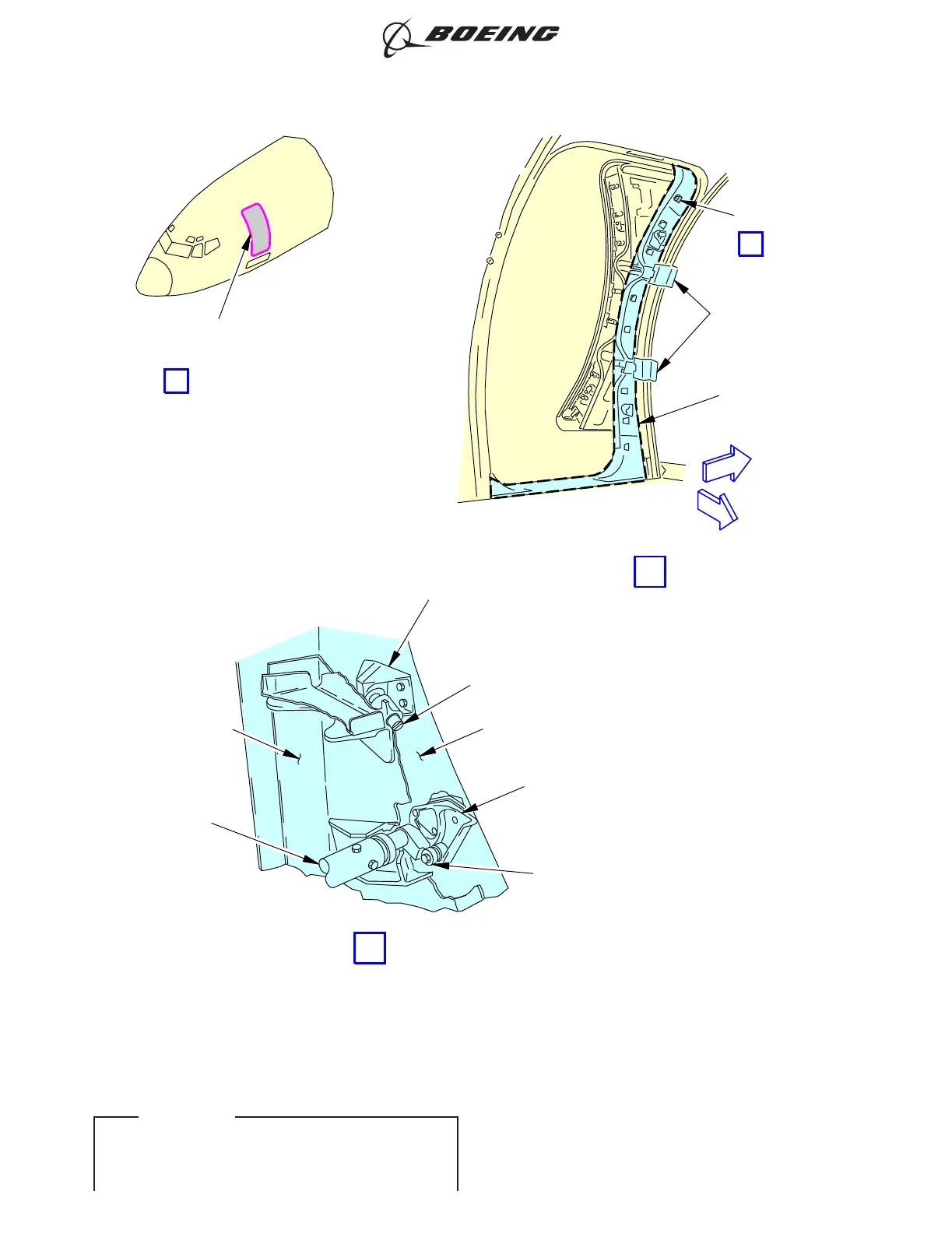

LATCH AND STOP ASSEMBLY DETAIL
FORWARD ENTRY DOOR
H45979 S0006584636_V2
External - Forward Entry Door Frame, Stop, Latches and Hinges
Figure 238/53-05-03-990-808
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.18
D633A101-ILF Jun 15/2018
