Boeing 737-600 - Page 1640

A
B
A
B
FWD
I
N
B
D

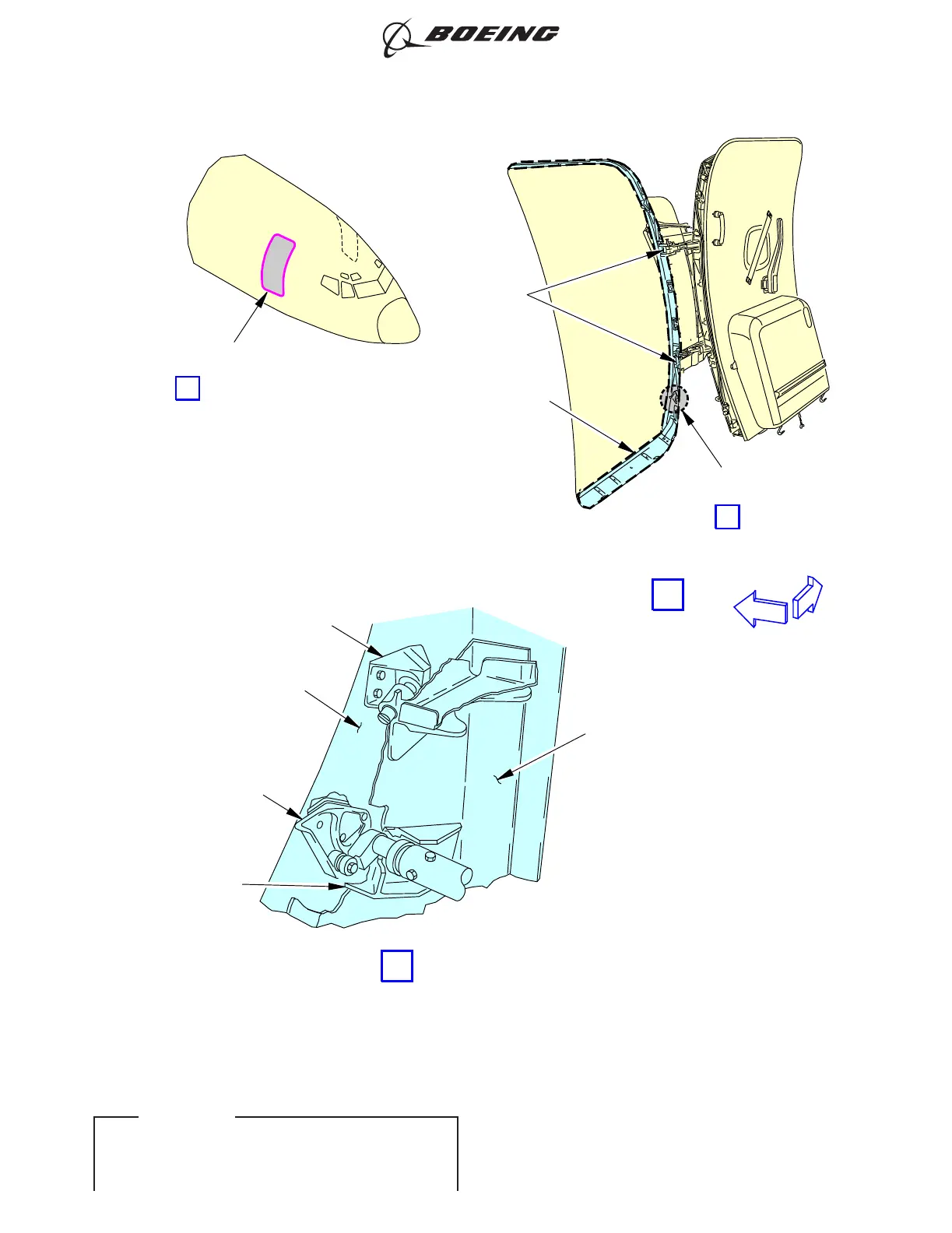

LATCH AND STOP ASSEMBLY DETAIL
FORWARD SERVICE DOOR
DOOR-MOUNTED
LATCH ROLLER
FRAME-MOUNTED
LATCH TRACK
FITTING
FRAME-MOUNTED
STOP FITTING
FRAME
STRUCTURE
STOP FITTING
(12 LOCATIONS)
FRAME
(TYPICAL)
HINGES
DOOR
STRUCTURE
FORWARD GALLEY
SERVICE DOOR
H45986 S0006584639_V2
External - Forward Galley Service Door Frame, Stops, Latches and Hinges
Figure 239/53-05-03-990-809
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.20
D633A101-ILF Jun 15/2018
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
