Boeing 737-600 - Page 1651

A
B
A
FWD
MPD ITEM
53-350-00
PASSENGER
COMPARTMENT
STA
270
STA
360
PASSENGER
COMPARTMENT

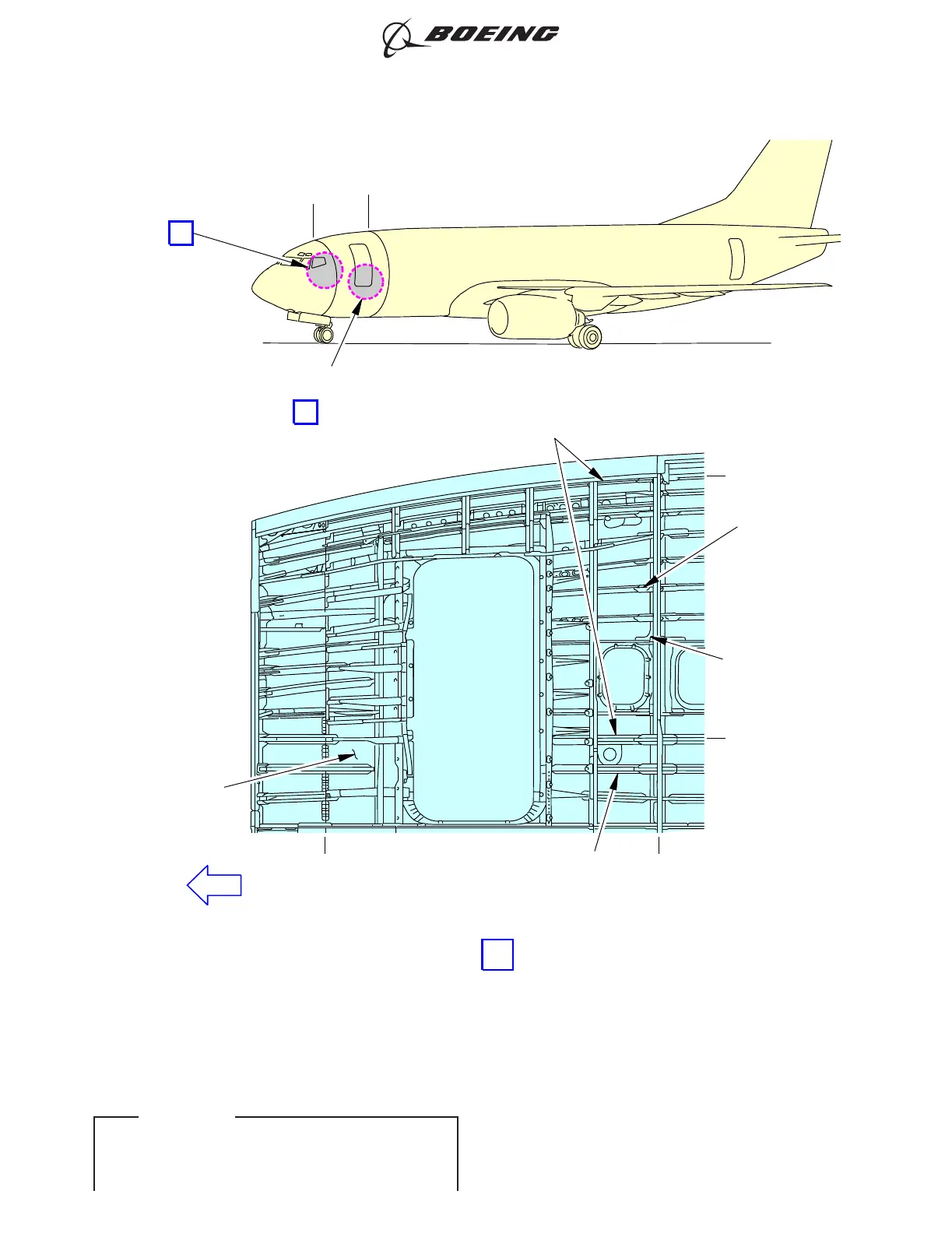

PASSENGER COMPARTMENT (STA 270 TO STA 360)
(RIGHT SIDE, VIEW IN THE OUTBOARD DIRECTION)
LONGITUDINAL
LAP SPLICE
S4R
STRINGER
SPLICE
CIRCUMFERENTIAL
SKIN SPLICE
S14R
STRINGER
STA
360
STA
270
SKIN
2071151 S0000430778_V2
INTERNAL-GENERAL VISUAL: PASSENGER COMPARTMENT FROM STA 270 TO STA 360
Figure 244/53-05-03-990-860 (Sheet 1 of 2)
