VIEW FROM FRONT
MPD ITEM
53-420-00
STA 1088
STA 1016
STRINGER
SPLICE
FITTINGS
SKIN PANELS
STRINGERS
LONGITUDINAL
LAP SPLICES
FRAMES
VERTICAL FIN
REAR FITTINGS
LUGS AND BOLTS
LEFT SIDE
RIGHT SIDE
FRAMES
STRINGERS
SKIN PANELS
STA 1088
STA 1016
STRINGER
SPLICE
FITTINGS
LONGITUDINAL
LAP SPLICES
2097088 S0000441632_V3

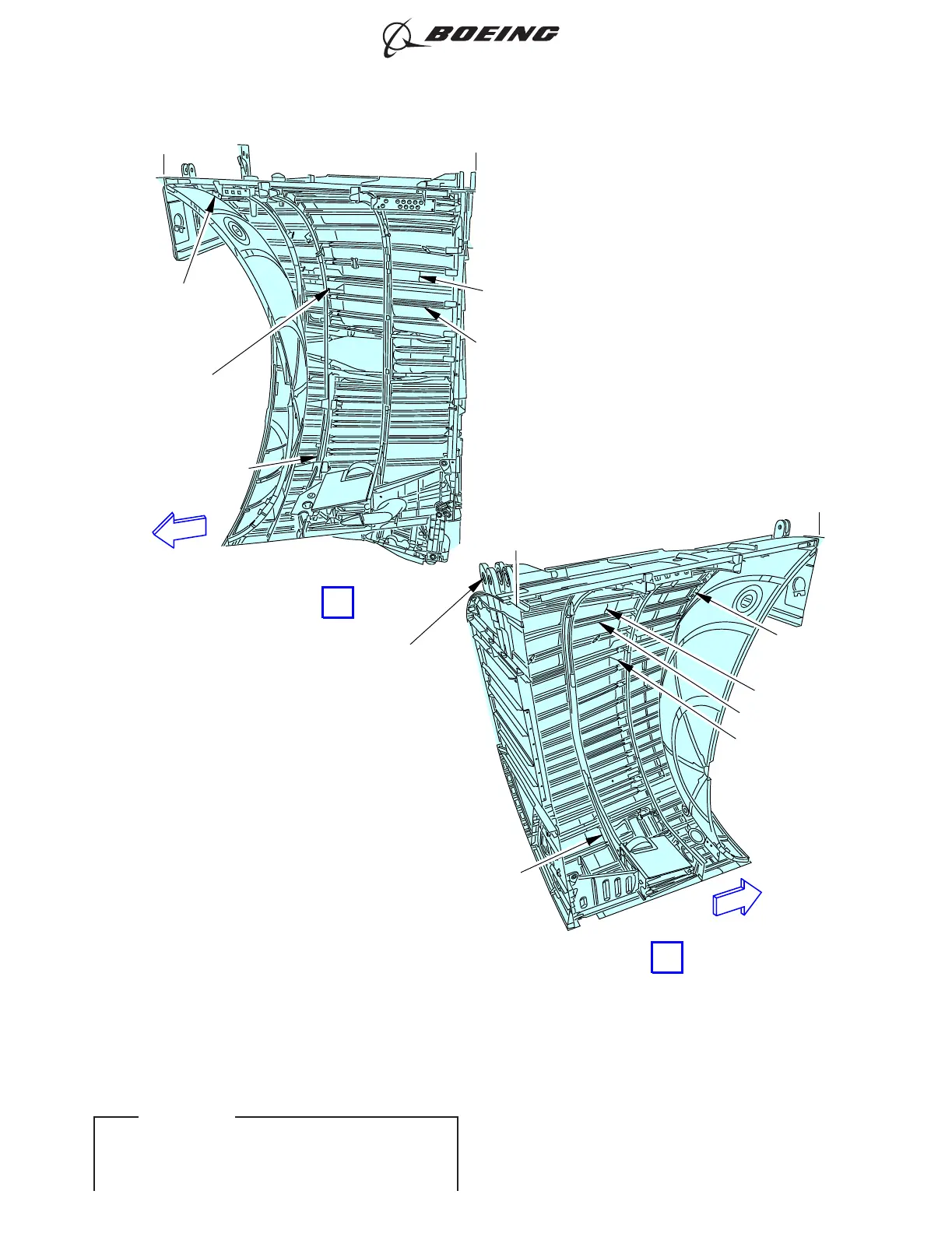

INTERNAL-GENERAL VISUAL: AREA AFT OF STA 1016 BULKHEAD
Figure 255/53-05-03-990-851 (Sheet 4 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.70
D633A101-ILF Jun 15/2018
