Boeing 737-600 - Page 1712

A
A
(FLAT POSITION)
0.76 INCH (19 mm)
LIFT FITTING NO. 3
RUD STA
56.48
RUD STA
66.42
LIFT FITTING NO. 1
RUD STA
184.76
LIFT FITTING NO. 2
LE STA
128.400
SLING ASSEMBLY
WITH FOUR
SHACKLES
NO. 1 CRANE HOOK
SLACK
NO. 1 CRANE HOOK
AND CABLE
LIFT FITTING NO. 3
NO. 2 CRANE HOOK
AND CABLE
CENTERLINE
FRONT SPAR
CENTERLINE
REAR SPAR
2860065 S0000673244_V1

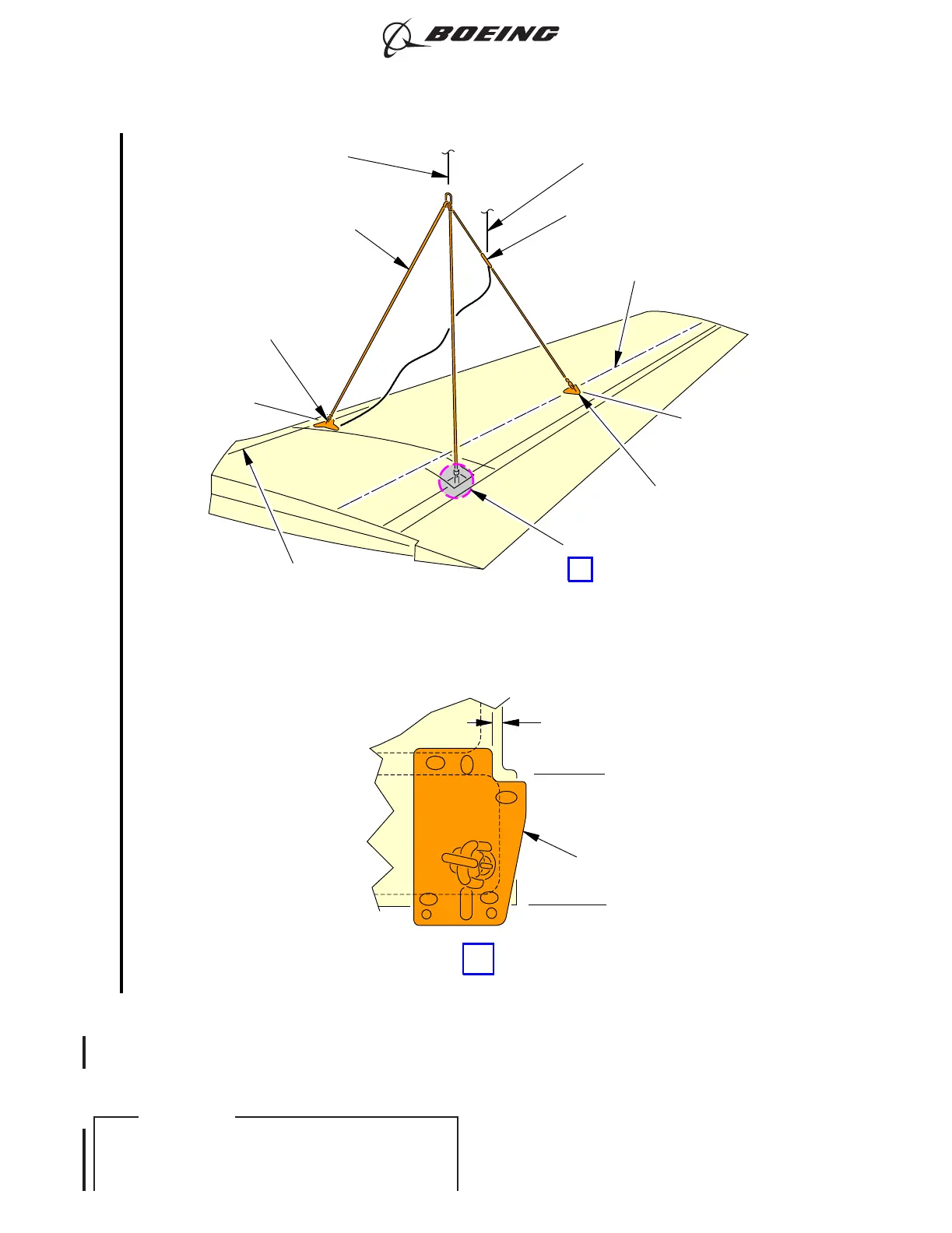

INTERNAL-GENERAL VISUAL: VERTICAL FIN REAR SPAR FITTING
Figure 262/53-05-03-990-907 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.92
D633A101-ILF Oct 15/2019
