Boeing 737-600 - Page 1729

A-A
B-B
STRUCTURE
PREPACK
SCUFF
PLATE
SCUFF PLATE
PREPACK
DOOR
LINING
OUTER
SKIN
SCUFF PLATE
PREPACK
SCUFF
PLATE
OUTER
SKIN
M27780 S0006581007_V2

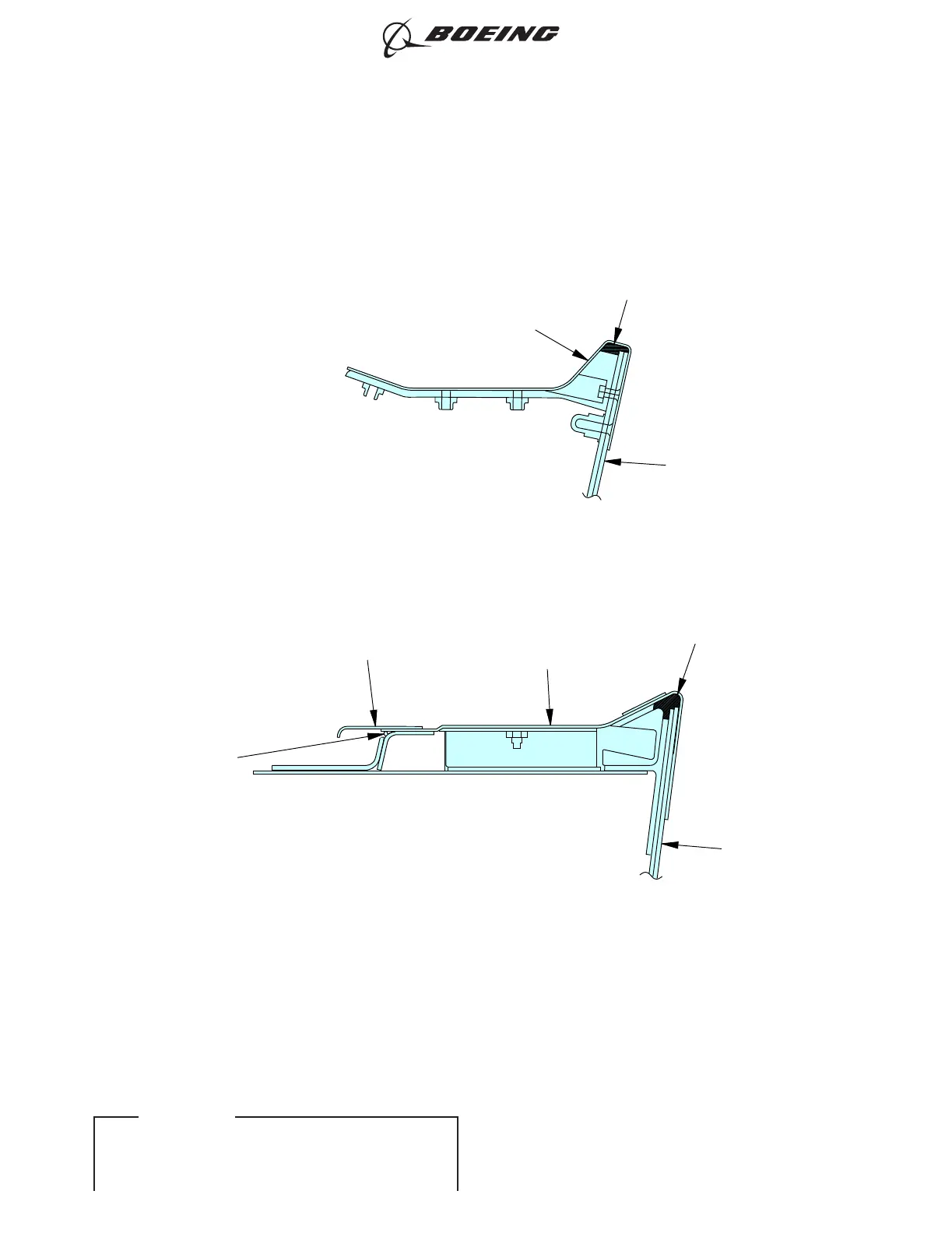

Forward Galley Service Door Scuff Plate Installation
Figure 403/53-11-01-990-803 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-11-01
Page 410
D633A101-ILF Oct 15/2015
