Boeing 737-600 - Page 1760

1
1
2
FWD
A
1
2
2
A
AREA UNDER GALLEY AND LAVATORY
PARTITION
SUPPORT
MAIN DECK
SEAT TRACK
SEE FIG. 7
SEE AMM 53-11-37, FIG. 3
FOR DAMS IN STRINGERS
FLOOR BEAM
STRINGERS
FORWARD GALLEYS
OR LAVATORIES
AFT PRESSURE
BULKHEAD
LOCATION OF GALLEY AND LAVATORY VARIES
APPLY BMS 3-23 ON ALL EXPOSED STRUCTURE
FRAME
AFT GALLEYS
OR LAVATORIES
AREA UNDER GALLEY
AND LAVATORY
J69581 S0000174911_V2

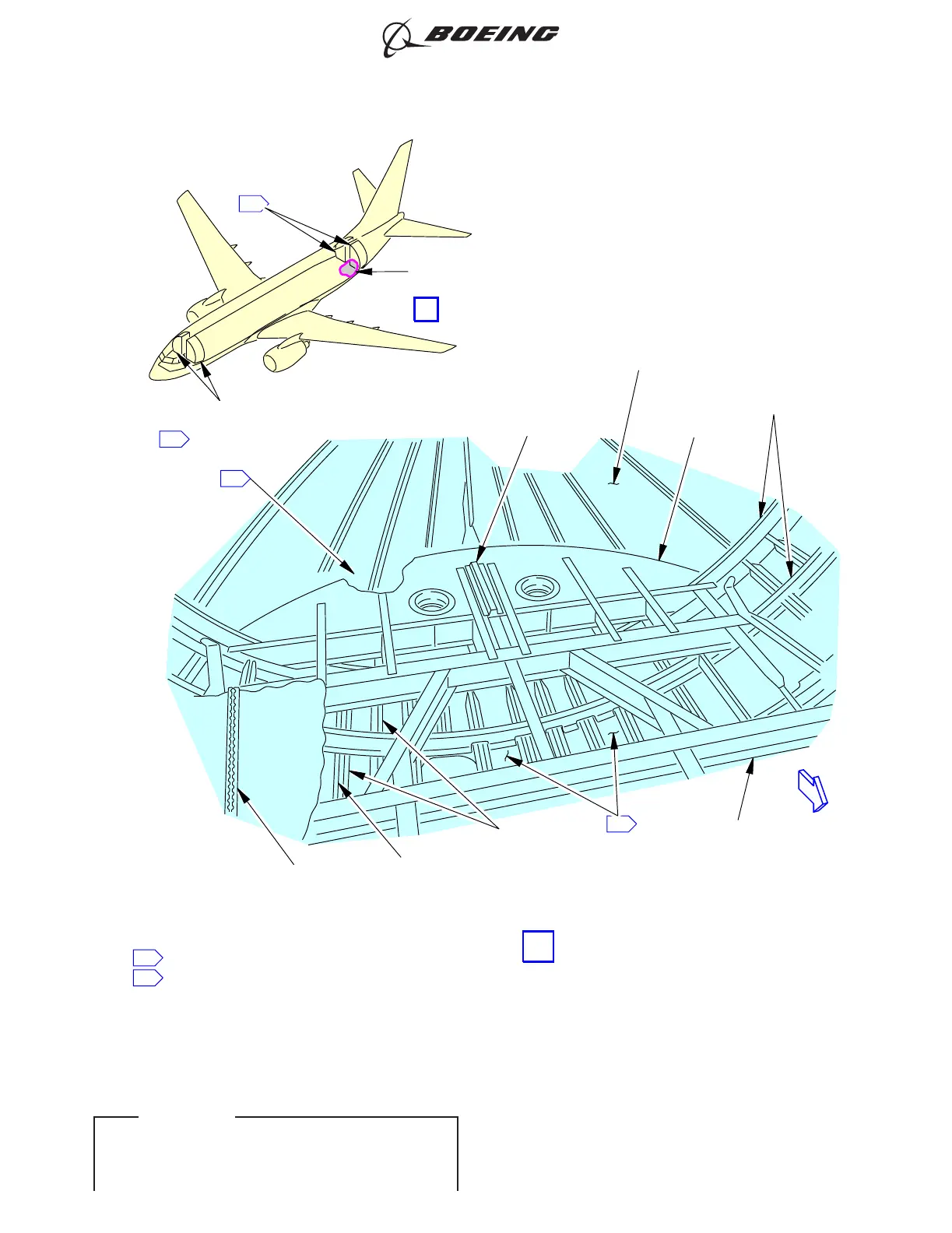

Galley and Lavatory Areas
Figure 203/53-11-37-990-804 (Sheet 1 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-11-37
Page 217
D633A101-ILF Oct 15/2015
