Boeing 737-600 - Page 1766

A
I
C
B
H
A
CENTER WING
REAR SPAR
MAIN GEAR
WHEEL WELL
STA
727
MLG SUPPORT
BEAM ATTACH
LUG (TYPICAL)
FLAP DRIVE
SYSTEM
PRESSURE
DECK
STA 727
BULKHEAD
KEEL BEAM
MAIN DECK
FLOOR
WL 202
S-18A
STA
685
STA
695
STA
706
SEE AMM 57-15-00 FOR
CORROSION ON MLG
SUPPORT BEAM
NOSE
GEAR
MAIN GEAR
WING WHEEL WELL
(AMM 57-14-00)
STA
663.75
MLG SIDE STRUT
ATTACH LUG
(TYPICAL)
TYPICAL
CRACKS
J71775 S0000174934_V2

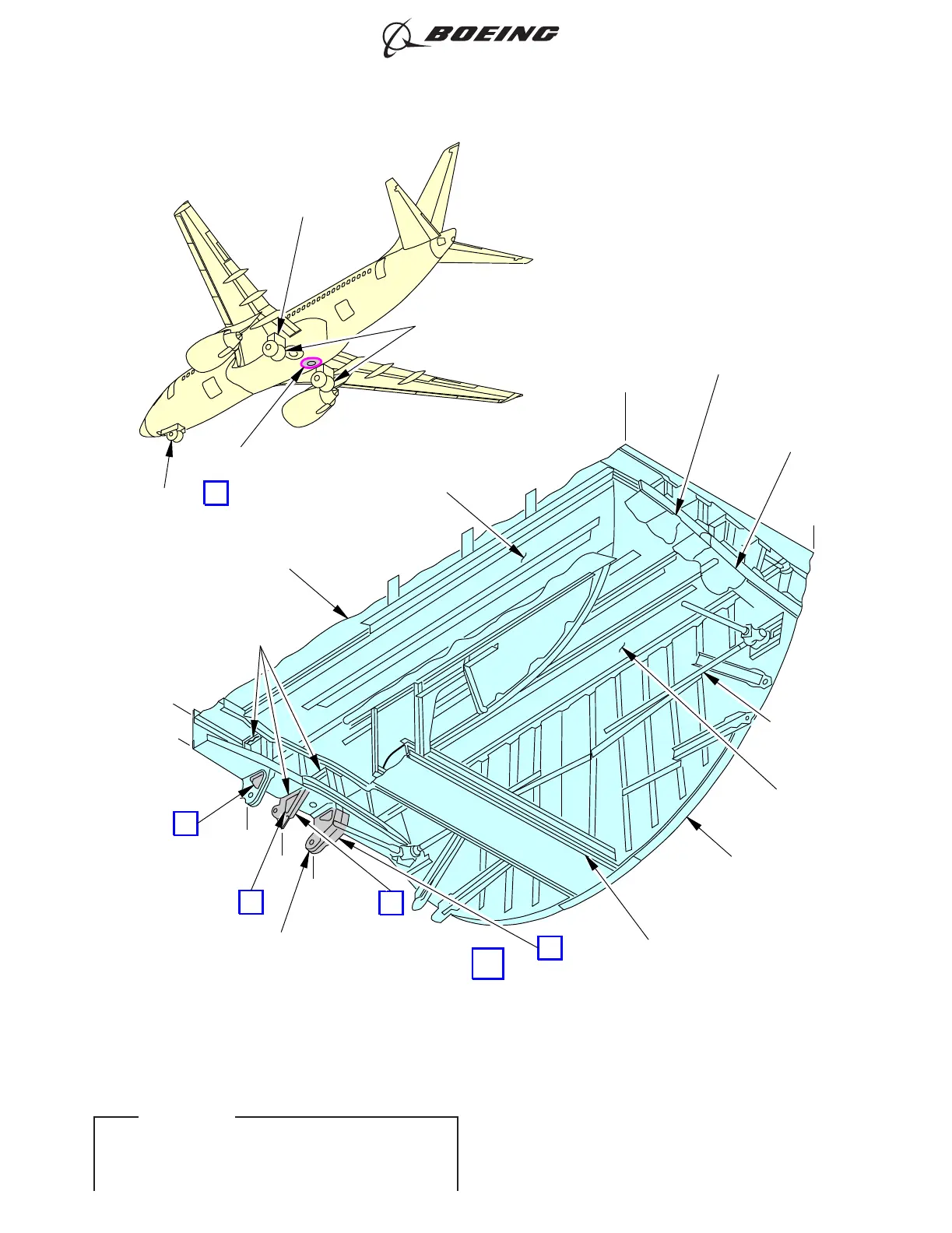

Main Gear Wheel and Keel Beam
Figure 204/53-11-37-990-805 (Sheet 1 of 5)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-11-37
Page 223
D633A101-ILF Oct 15/2015
