Boeing 737-600 - Page 1794

F
W
D
I
N
B
D
I
N
B
D
FWD
C
D
AFT LINK
(MAIN LANDING GEAR WHEEL WELL)
(TYPICAL)
[2] BOLT
[4] WASHER
[6] BUSHING
[7] WASHER
[8] NUT
[1] LINK
[9] BOLT
[12] COLLAR
(2 LOCATIONS)
[13] FITTING
[16] SPAR
FRAME
[10] BOLTS
[12] COLLARS
(2 LOCATIONS)
[11] BOLT
[12] COLLAR
(2 LOCATIONS)
[3] BOLT
[4] WASHER
[5] BUSHING
[7] WASHER
[8] NUT
FORWARD LINK
(PASSENGER COMPARTMENT)
(TYPICAL)
[3] BOLT
[4] WASHER
[6] BUSHING
[7] WASHER
[8] NUT
[2] BOLT
[4] WASHER
[5] BUSHING
[7] WASHER
[8] NUT
[1] LINK
[14] FITTING
[15] FITTING
[16] SPAR
FRAME
2907570 S0000696292_V1

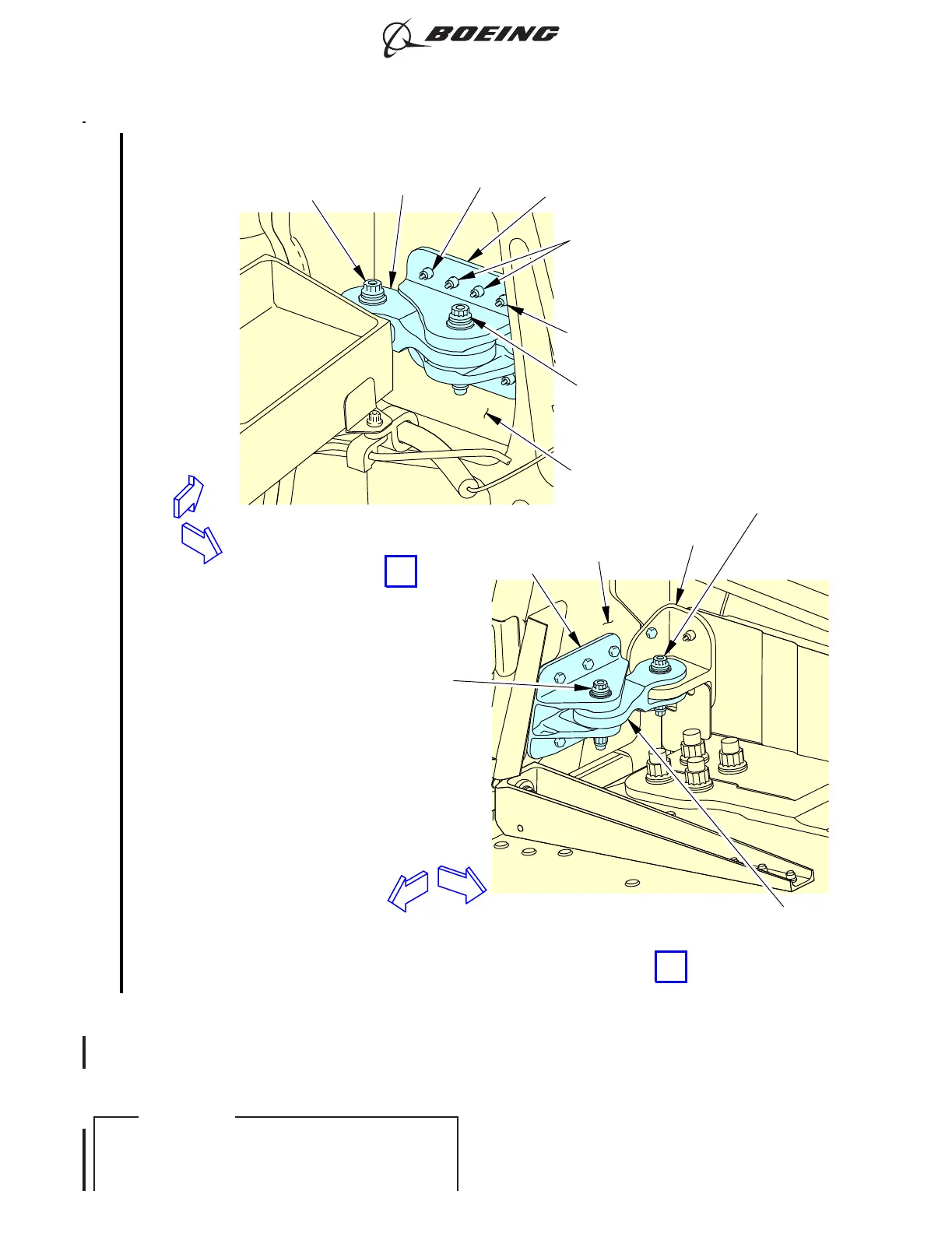

STRINGER BEAM LINK INSTALLATION
Figure 401/53-12-12-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-12-12
Page 404
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
