Boeing 737-600 - Page 1809

1
1
1
1
2
2
1
2
PANEL
ASSEMBLY
±0.07 INCH (±1.78 mm)
FLOOR PANEL MISMATCH
TOLERANCE
PANEL
ASSEMBLY
TYPICAL MISMATCH DIMENSION
FOR FLOOR PANEL INSTALLATION
-0.005/+0.030 INCH
(-0.13/+0.76 mm)
ALLOWABLE MISMATCHING
(DISHING)
PANEL
ASSEMBLY
PANEL
ASSEMBLY
-0.10/+0.04 INCH
(-2.54/+1.02 mm)
SEAT TRACK
TYPICAL MISMATCH DIMENSION
FOR FLOOR PANEL INSTALLATION
TYPICAL MISMATCH DIMENSION
FOR FLOOR PANEL INSTALLATION
PANEL
ASSEMBLY
STABILIZER
0.03-0.15 INCH
(0.76-3.81 mm)
(TYPICAL)
MOISTURE BARRIER TAPE
1.5-INCH
SEAM TAPE
FLOOR PANEL
SEAT TRACK
TYPICAL FLOOR PANEL
SEALING AT SEAT TRACKS
FLOOR PANEL
HI-TAK TAPE
SEALANT
TYPICAL MISMATCH DIMENSION
FOR FLOOR PANEL INSTALLATION
PANEL
ASSEMBLY
U63204 S0000210324_V3

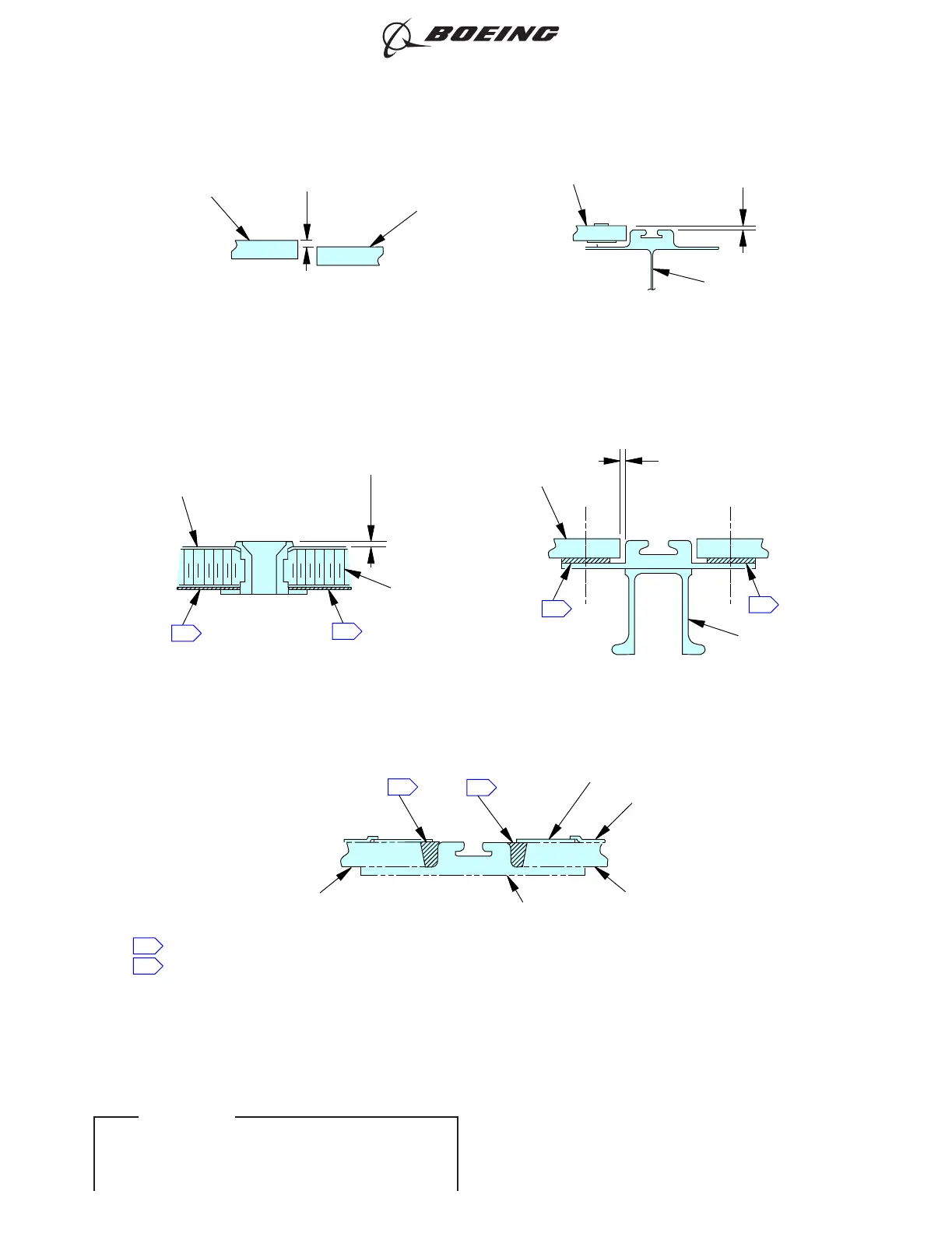

Floor Panel Installation and Sealing
Figure 401/53-21-00-990-806 (Sheet 1 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-21-00
Page 403
D633A101-ILF Feb 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
