A
FWD
FWD
A
VORTEX GENERATOR ASSEMBLY
SECTION 48
(LEFT SIDE IS SHOWN,
RIGHT SIDE IS OPPOSITE)
VORTEX
GENERATOR
(EXAMPLE)
[2] BOLT
(1 LOCATION)
[2] BOLT
(12 LOCATIONS)
RIVET
(EXAMPLE, 6
LOCATIONS)
STRINGER 5AL
STRINGER 3L
STRINGER 2L
STRINGER 4L
VORTEX
GENERATOR
ASSEMBLY
HORIZONTAL
STABILIZER
VERTICAL
STABILIZER
[1] VORTEX
GENERATOR
ASSEMBLY
H22177 S0006581028_V3

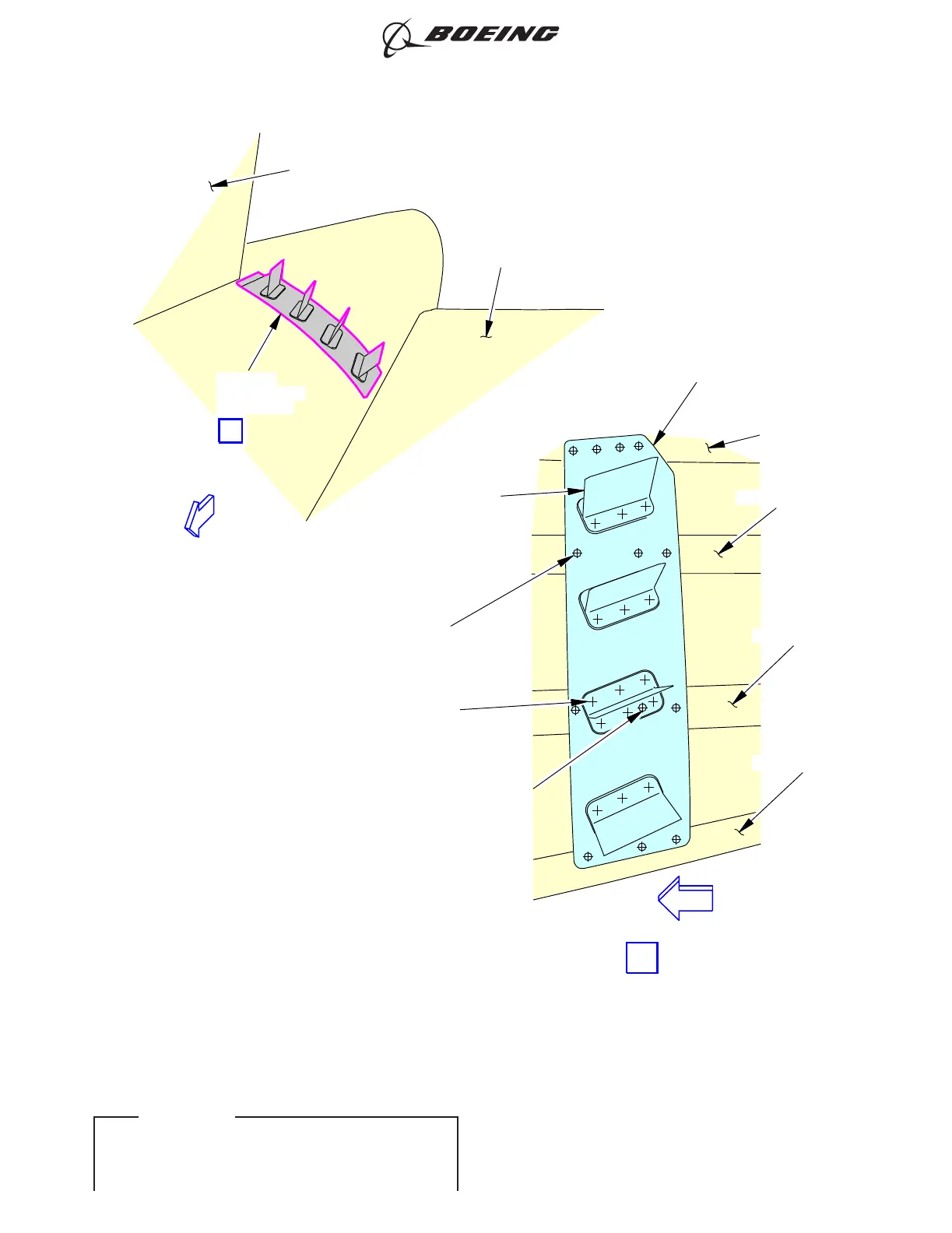

Fuselage Vortex Generator Installation
Figure 401/53-31-21-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-31-21
Page 405
D633A101-ILF Oct 15/2015
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
