D
B
U
O
T
A-A
D
B
U
O
T
B-B
0.03 ±0.01 INCH
SEAL PLATE
TRACK
CORNER
PLATE
TIE-BAR
RUB GUIDE
SEAL PLATE
SEAL PLATE
INBOARD TRACK
OUTBOARD
TRACK STRIP
PROTECTIVE
MYLAR TAPE
H20834 S0006581035_V2

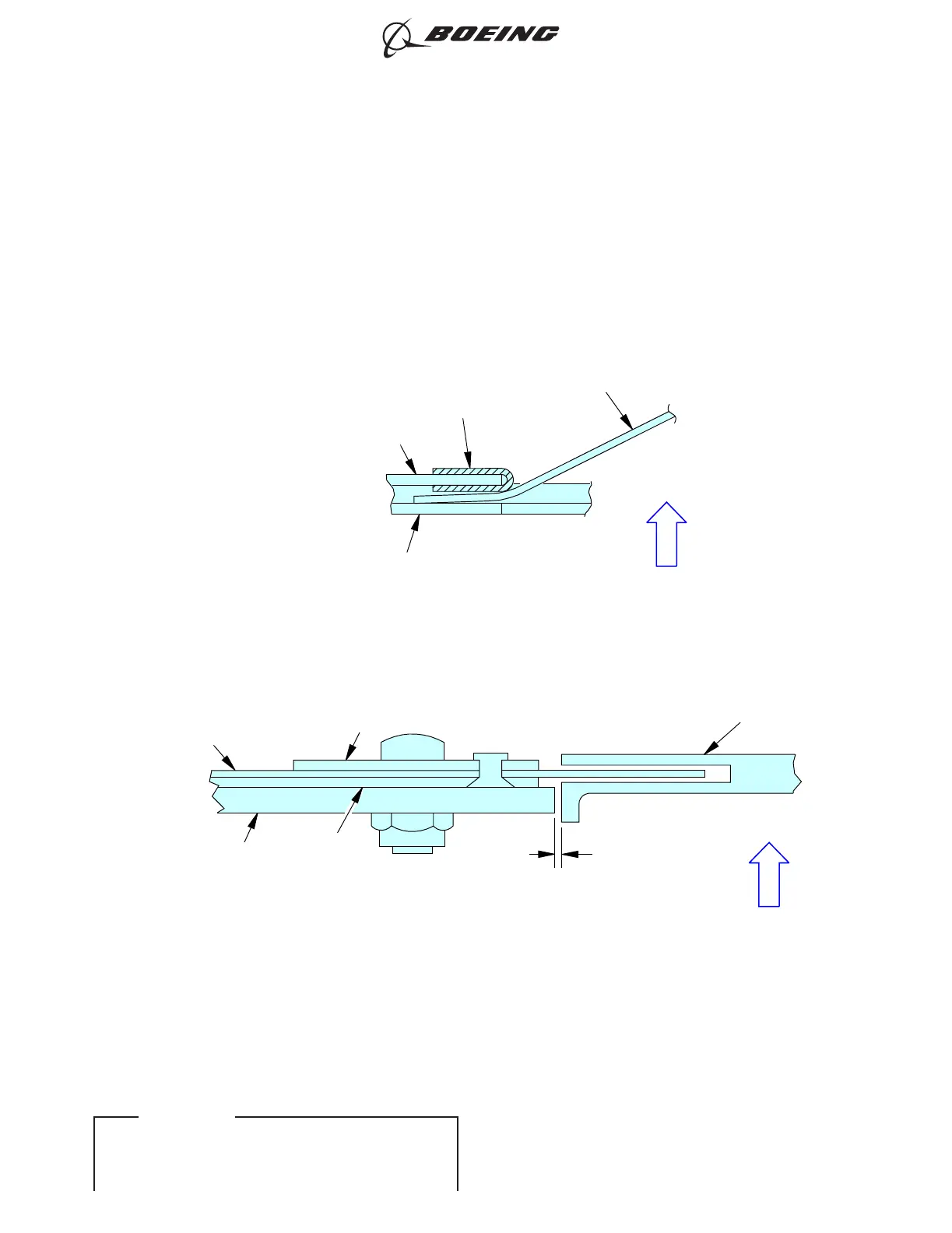

Front Spar Sliding Seal Installation
Figure 401/53-31-31-990-802 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-31-31
Config 2
Page 407
D633A101-ILF Jun 15/2019
