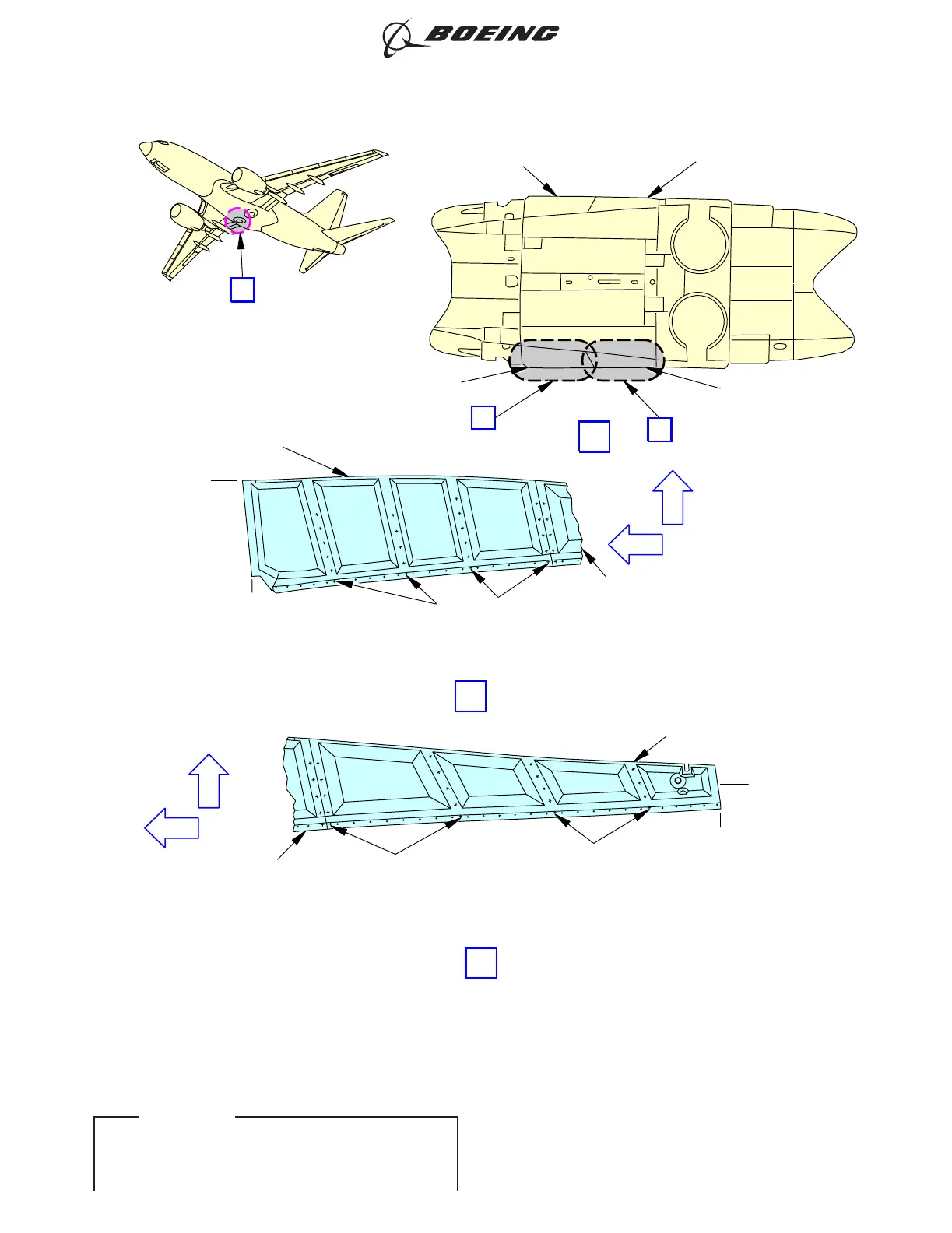

AFT UNDERWING PANEL, 149A7252, FASTENER LOCATIONS
(LEFT PANEL IS SHOWN, RIGHT PANEL IS OPPOSITE)
149A7251-2
UNDERWING PANEL
149A7252-2
UNDERWING PANEL
149A7252-1
UNDERWING PANEL
149A7251-1
UNDERWING PANEL
149A7252
PANEL
149A7251
PANEL
LBL
50.00
REF
STA
537.00
REF
SUSPECT 1/4 INCH
FASTENER LOCATIONS
149A7252
PANEL
149A7251
PANEL
STA
668.00
REF
LBL
75.00
REF
SUSPECT 1/4 INCH
FASTENER LOCATIONS
SUSPECT 1/4 INCH
FASTENER LOCATIONS
FORWARD UNDERWING PANEL, 149A7251, FASTENER LOCATIONS
(LEFT PANEL IS SHOWN, RIGHT PANEL IS OPPOSITE)
462352 S0000140774_V2
Front Spar to Rear Spar Underwing Panel Attachment Fasteners
Figure 201/53-51-00-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-51-00
Page 203
D633A101-ILF Oct 15/2015
