Boeing 737-600 - Page 1914

D
FWD
C
1
D
BONDING
FASTENER
0.0600 -0.1000/+0.0400 INCH
(1.524 -2.540/+1.016 mm)
MISFAIR
[50,57] ACCESS PANELS
STRUCTURE
ADJACENT
ACCESS PANEL
BONDING FASTENERS
SEAL PLATE DOUBLER
DOOR SEAL
PLATE
BOLT
(EXAMPLE)
LOWER
SEAL PLATE
UPPER SEAL
PLATE
H45206 S0006581050_V3

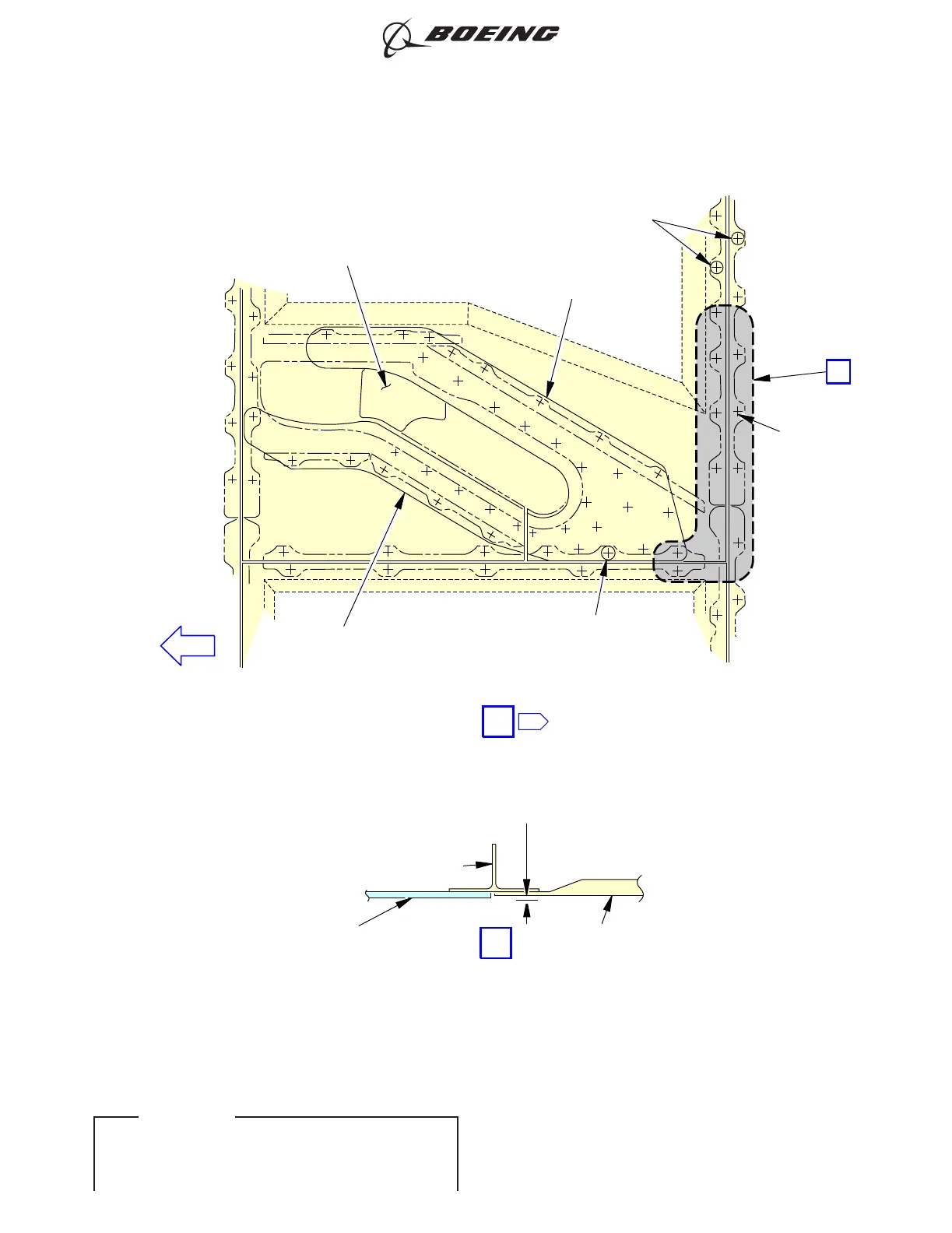

Aft Wing-To-Body Fairing Access Panels Installation
Figure 403/53-51-21-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-51-21
Page 430
D633A101-ILF Oct 15/2015
