Boeing 737-600 - Page 1973

C
C
A
A
A
A
E
E
A-A
B-B
A
A
A
A
B
B
NOSE RADOME
INNER SURFACE
NOSE RADOME
(FRONT VIEW)
[2] CONDUCTOR
STRAP
[1] NOSE
RADOME
[3] DIVERTER
STRIP
[2] CONDUCTOR
STRAP
[3] DIVERTER
STRIP
[1] NOSE
RADOME
2789822 S0000634411_V1

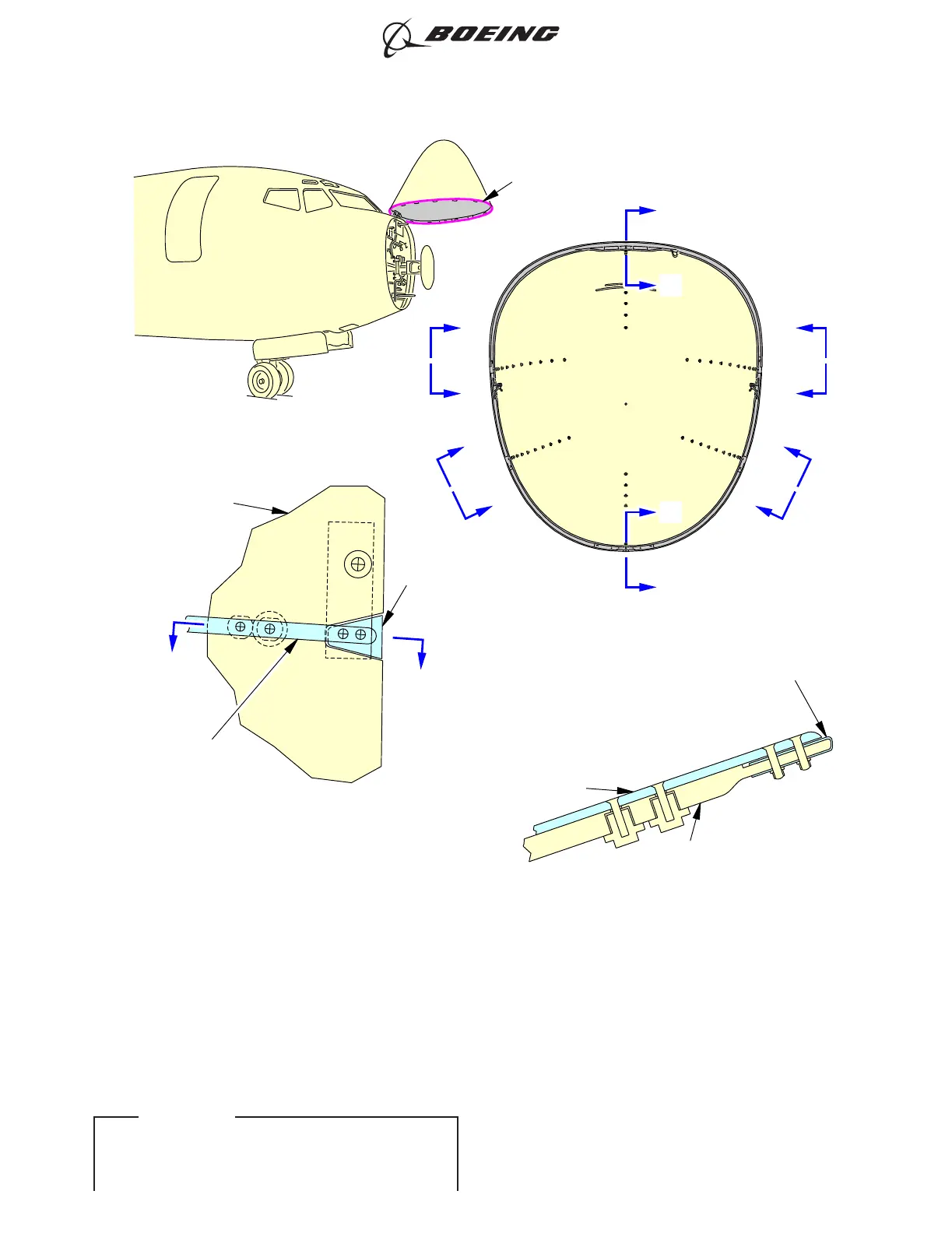

Diverter Strip Installation
Figure 201/53-52-03-990-804 (Sheet 1 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-52-03
Page 202
D633A101-ILF Feb 15/2018
